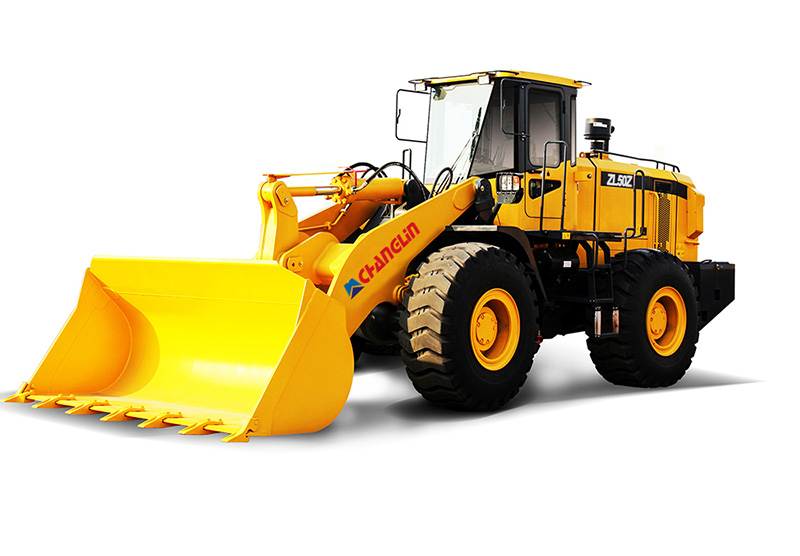

Wheel Loader ZL50Z

CHANGLIN ZL50Z wheel loader is a new generation of cost-effective earthmoving equipment combining advanced technology with CHANGLIN's experience in the design and production of wheel loaders over the past 50 years. The large 5-ton wheel loader designed for working under such severe conditions as ports, docks, coal mines, and quarries has reliable performance due to its hydraulic control, steering and transmission system.
With advantages of exclusive performance, high efficiency, convenient maintenance and comfortable operation, our ZL50H wheel loader can work well in carrying large and heavy materials, typically suitable for shovel loading of large specific gravity materials.

  • Rated Load: 5000KG
  • Rated Output: 162kW
  • Rated Bucket Capacity: 3.1m³
Inquiry
Video
Wheel Loader ZL50Z
  • Specifications
  • Features
  • Videos
  • Request a Quote
Specifications
Model ZL50Z
Rated load (Kg) 5000
Rated bucket capacity(m³) 3.1
Dump Clearance 3136
Dump Reach 1171
Max. drawing force(KN) 160
Diesel engine Cummins 6LTAA 9.3/ShangChai SC11CB220G2B1
Rated output(kW) 158/162
Transmission ZF
Gear positions 4 forward, 3 reverse
Length×Width×Height(mm) 8130×2800×3450
Operating weight(Kg) 16700
Wheel base(mm) 3200
Features
  • Wheel Loader ZL50Z

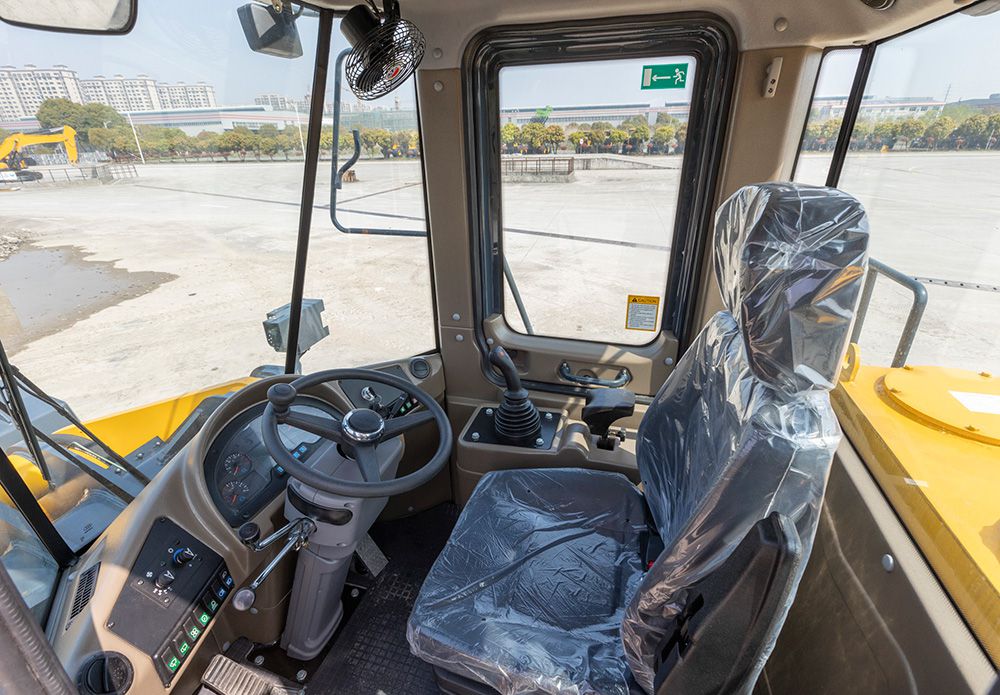

    The comfortable and safe cab provides perfect all-round visibility.

  • Wheel Loader ZL50Z

    The wheel loader has a strong power system driven by SDEC engine, which allows the construction machine to smoothly run under severe conditions. With world-class quality, the fuel-efficient wheel loader features high working efficiency and enhanced digging force. Each part of the wheel loader has been improved on its strength and safety factor, and the engine cooling system has sufficient coolant, all of which ensure high reliable work performance and long service life of the diesel engine.

  • Wheel Loader ZL50Z

    The single-pedal dual-circuit service brake system and emergency braking system that comply with the requirements of international standards are used to ensure safe and effective braking. The foot brake adopts gas-assisted hydraulic caliper disc brake to ensure high reliability, and the hand brake uses manual air braking system to achieve emergency stopping in an effective manner.

  • Wheel Loader ZL50Z

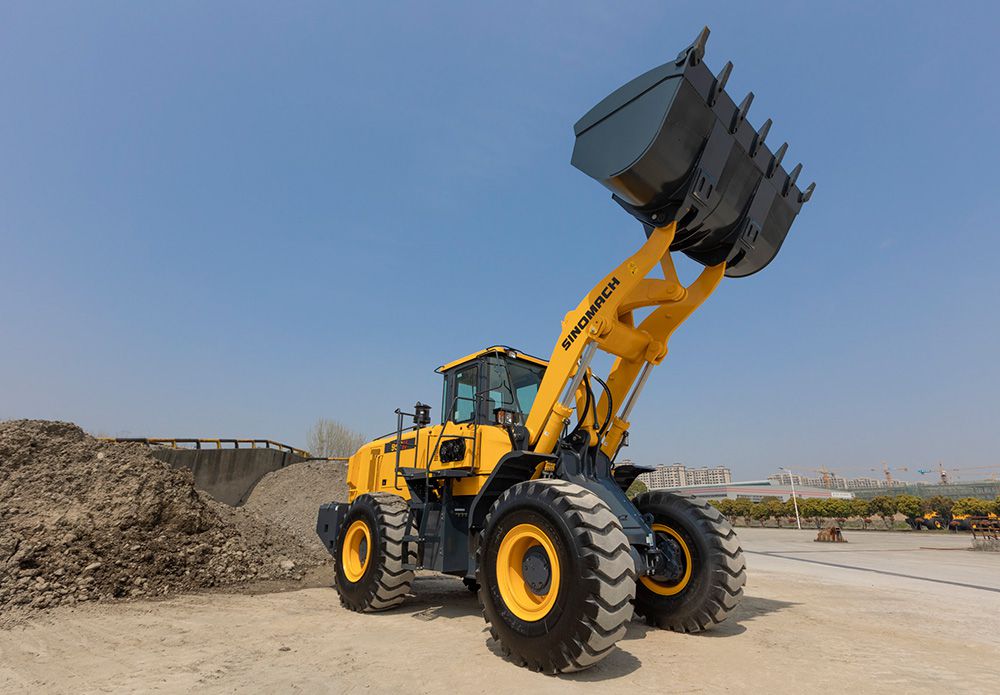

    The new optimized single arm allows high pivot point possible, and such a design provides large bucket loading capacity and high work efficiency. The front frame of the wheel loader is composed of strong integral structure made from high-quality and durable materials. The 85mm-thick structure can withstand all kinds of severe working conditions. The unique hinged structure means more convenience in wheel loader maintenance. Thanks to the dust-proof structure, mud, grains of sand and dust can be effectively prevented from entering the key part of wheel loader. Therefore, the wheel loader has a long service life with lower maintenance costs.

  • Wheel Loader ZL50Z

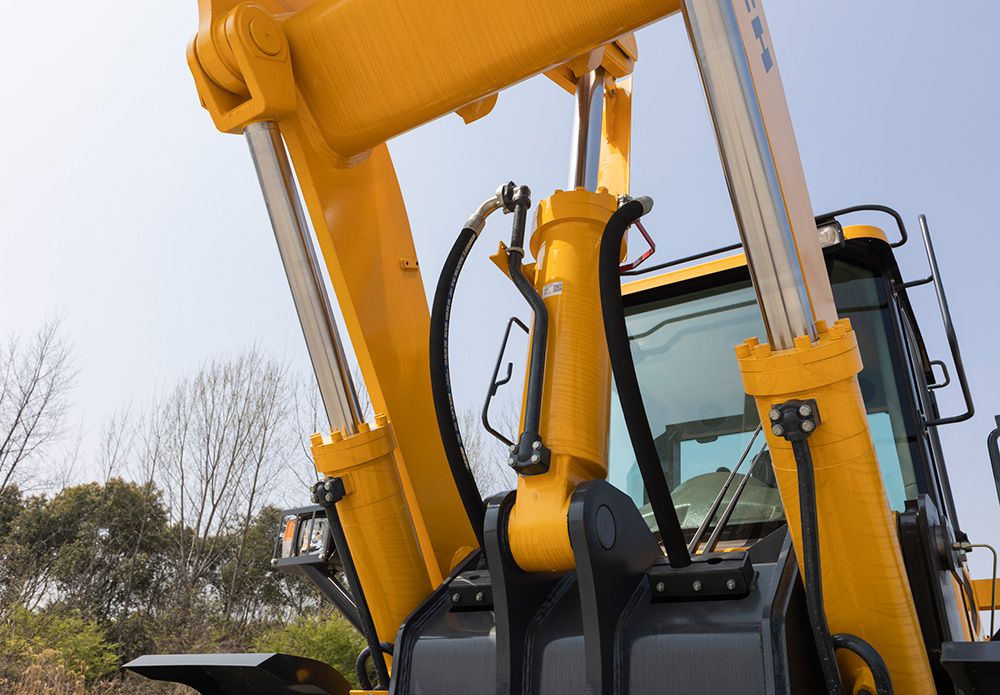

    The advanced hydraulic system not only boosts the digging capacity, but also keeps the oil temperature in hydraulic system at an appropriate level. All of these features mean higher efficiency in your construction project.

  • Wheel Loader ZL50Z

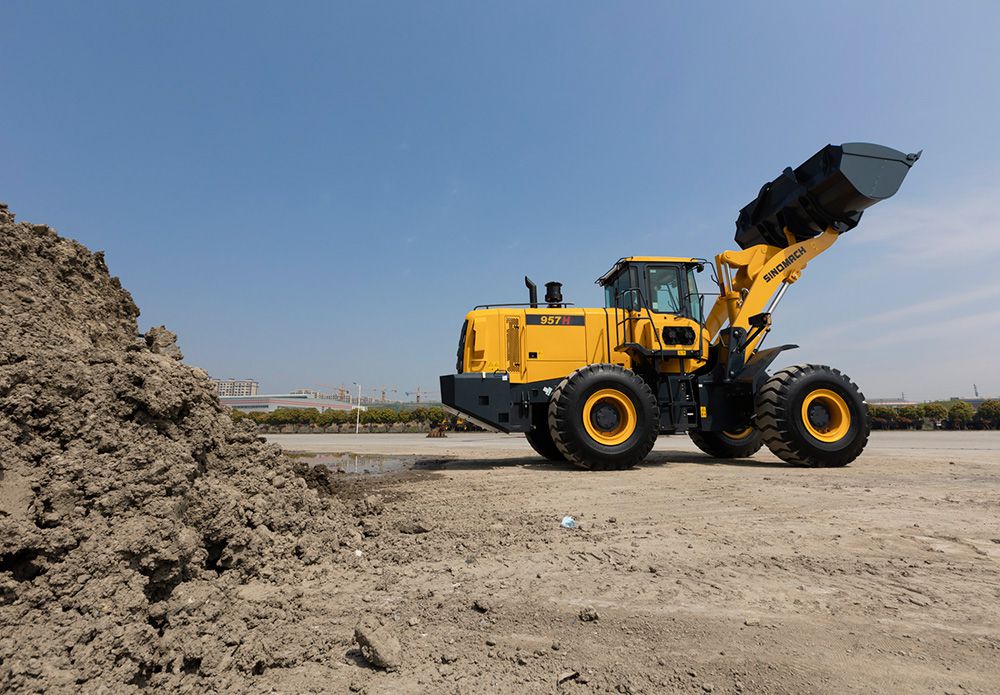

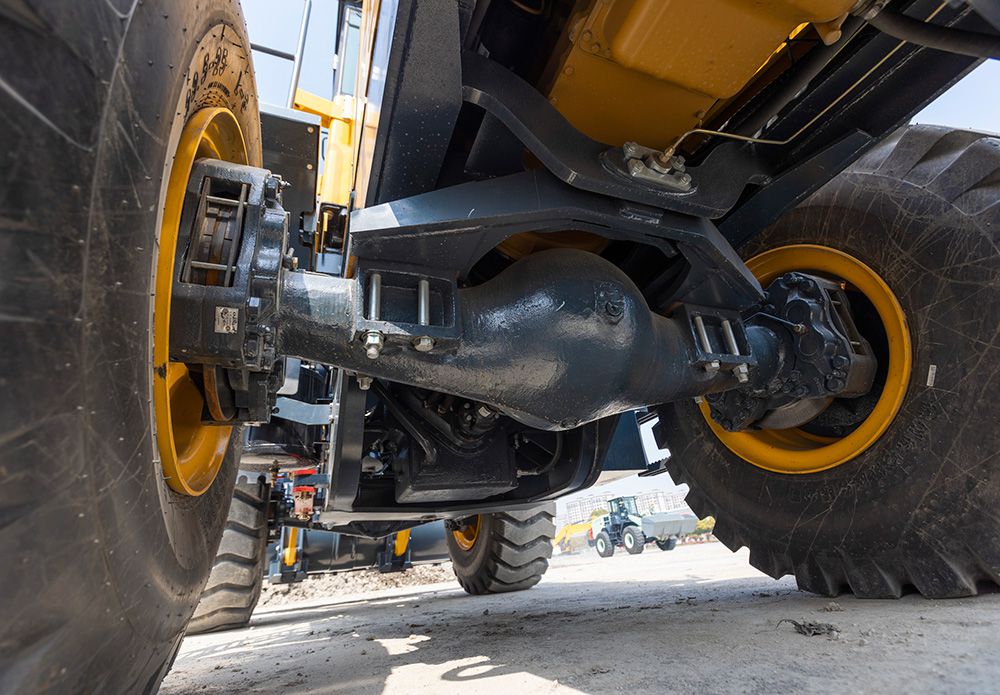

    The wheel loader features a reinforced drive axle, which has been tested many times under extreme working conditions, with the maximum ramp climbing angle of 30 degrees. The speed ratio of the drive axle can be adjusted to enhance the digging capacity, and a specialized helical bevel gear is equipped to withstand overload. The drive axle and swing frame are connected with high-strength bolts, which help ensure that the front axle bolts keep work well under overload conditions, and such a design can also effectively prevent the bolts from being stretched or deformed under overload circumstances.

  • Wheel Loader ZL50Z

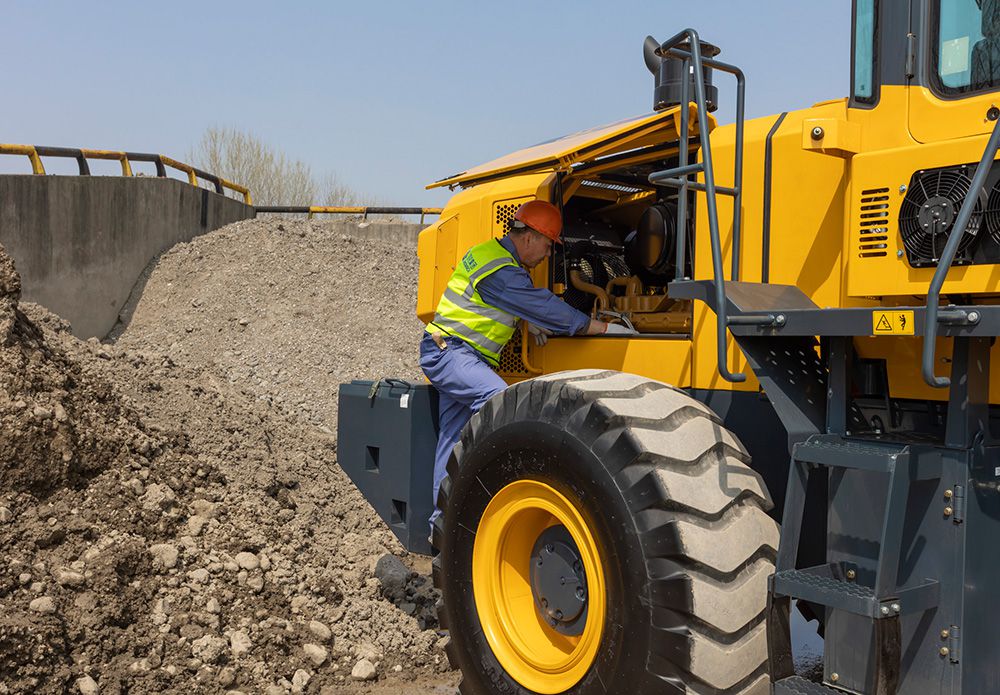

    The gull-wing type engine side doors can be widely opened, making daily checks easier.

  • Wheel Loader ZL50Z

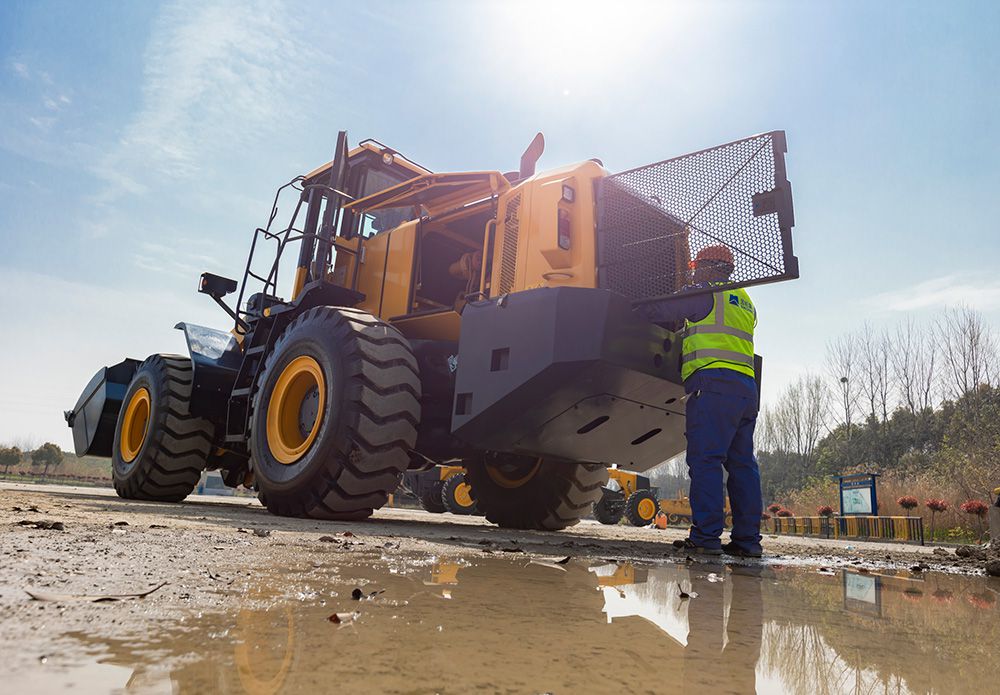

    The newly developed radiator with increased heat dissipation area provides better cooling for engine, thus greatly enhancing the work efficiency and prolonging the service life of wheel loader parts. Even in high temperatures, the performance of our wheel loader will absolutely not let you down.
