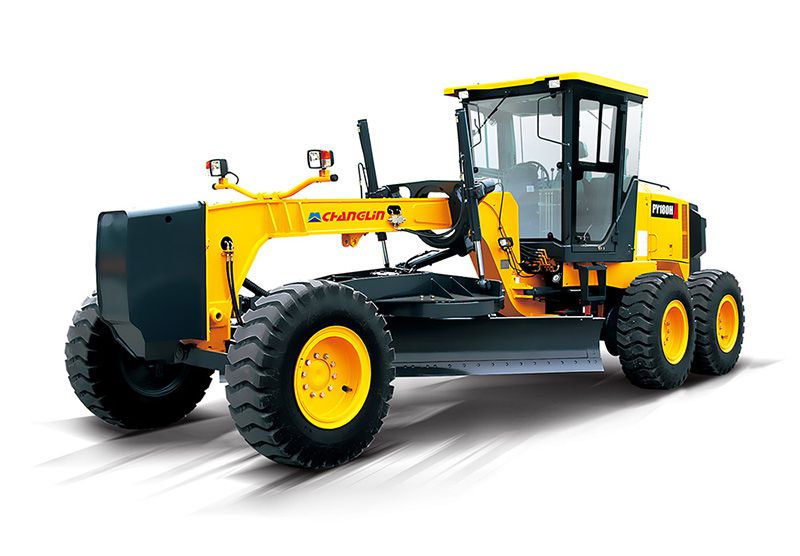

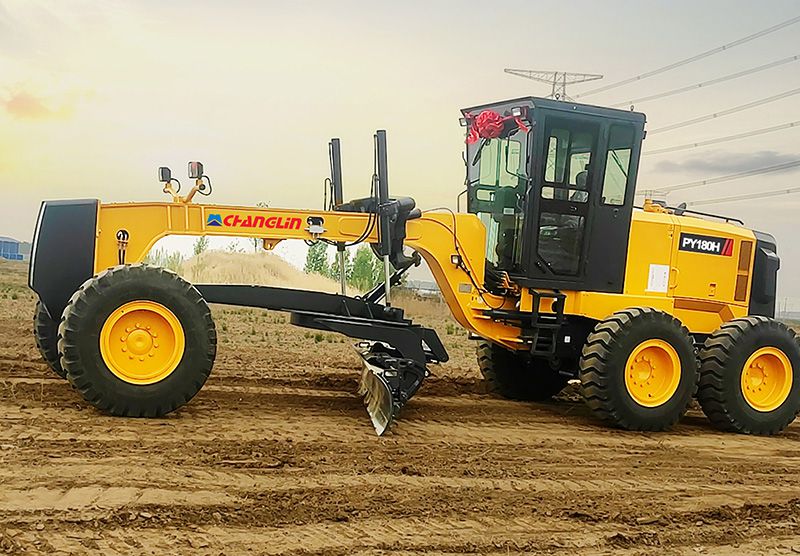

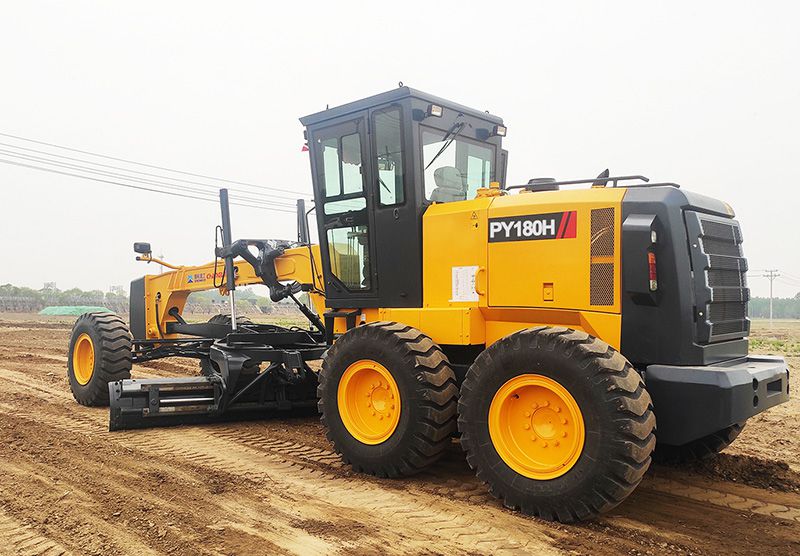

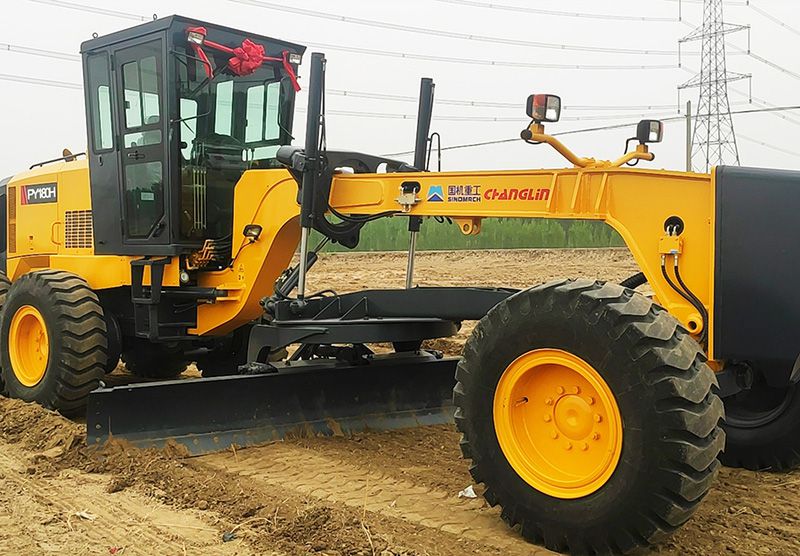

Motor Grader PY180H

The PY180H motor grader is simple and convenient to operate due to it has a single-handle electro-hydraulic operated power shift transmission with 6 forward and 3 reverse gears. The exclusive hydraulic lock and auto lock/unlock NO-SPIN differential ensures high stability and powerful traction. Thanks to the optimized axle load allocation, the motor grader can deliver high work efficiency and reliability even when cutting hard surfaces.

  • Operating weight: 14500KG
  • Rated power: 132kW
  • Blade width: 3658mm
Inquiry
Video
Motor Grader PY180H
  • Motor Grader PY180H
  • Motor Grader PY180H
  • Motor Grader PY180H
  • Motor Grader PY180H
    • Specifications
    • Features
    • Videos
    • Request a Quote
    Specifications
    Model PY180H
    Length×Width×Height(mm) 8630×2600×3370
    Operating weight (Kg) 14500
    Blade dimensions (mm) 3658×545×16
    Traveling gears 6 Forward 3 Reverse
    Traveling speed forward(km/h) 6.5/11.4/14.6/24.8/30/49.2
    Traveling speed reverse(km/h) 6.5/14.6/30
    Diesel engine Cummins 6BT5.9-C180
    Rated output(KW) 132
    Features
    • High Performance, Low Emission Engine

      High Performance, Low Emission Engine The use of Cummins turbocharged engine enables the motor grader to achieve excellent productivity and low fuel consumption. The greater work speeds with high horsepower are provided thanks to the precise throttle control offered by the durable mechanical inline fuel injection system.

    • Reliable Transmission with Proven Performance

      Reliable Transmission with Proven Performance The operation is simple and convenient thanks to the single-handle electro-hydraulic controlled power-shift transmission with 6 forward and 3 reverse gears. Paired with ZF-technology power-shift transmission, the Cummins engine makes the motor grader more dependable and simple to use, and suitable for all kinds of working environments.

    • Robust Chassis Frame

      Robust Chassis Frame Box-type chassis frame and advanced transmission allows it to execute heavy-duty tasks.

    • Superior Stability

      Superior Stability Hydraulic lock and auto lock/unlock NO-SPIN differential ensure outstanding stability and powerful traction.

    • Flexible Blade Mobility

      Flexible Blade Mobility This motor grader has an extensive working range due to its flexible blade suspension system and articulated frame.

    • High Durability, Precise Control

      High Durability, Precise Control The drawbar is constructed with A-shaped and U-shaped frame for high durability and precise blade control.

    • Smooth Operation

      Smooth Operation A turntable of four-inner gear guide type is included in the heat-treated rotating ring structure, which allows for smooth 360° rotation. The optimal curvature of the moldboard enables all types of soil to be moved freely and efficiently.

    • Ideal Axle Load Allocation

      Ideal Axle Load Allocation Axle loads are optimally allocated for superior stability and high work efficiency even when cutting hard surfaces.

    • Reliable Hydraulics

      Reliable Hydraulics Every component can be fully leveraged because of the deployment of an efficient hydraulic system. Safety is ensured by a dependable hydraulic brake system.

    • Excellent Visibility

      Excellent Visibility The spacious cab is designed with a side pillar layout for an excellent visibility that gives operator confidence to maneuver in various working conditions. The moldboard and front tires are clearly visible due to the well-positioned blade linkage.

    • Work Tools and Attachments

      Work Tools and Attachments
      Front Dozer Blades
      The front dozer, or front blade, is a piece of motor grader attachments that is mounted in the front of the vehicle for spreading gravel piles, or pushing materials in corners where is difficult to reach with the moldboard.

    • Work Tools and Attachments

      Work Tools and Attachments
      Rear Rippers & Mid-mount Scarifiers
      Attachments such as rippers and scarifiers are tools used for digging up asphalt, rocks or other hard materials that cannot be removed by the moldboard. The V-type scarifier can accommodate up to 11 teeth, the ripper also can accommodate 3-9 shanks.

    • Automatic Leveling Device

      Automatic Leveling Device The automatic leveling device as a 2D machine control system enables precise height and slope control, giving a high flexibility in the selection of sensors and application fields.

    • Rear Axle Drive System

      Rear Axle Drive System By using large-size rear drive axle, the reliability of the transmission is significantly improved.

    • Double Row Roller Chain

      Double Row Roller Chain The double row roller chain has a greater tensile strength (26 tons) over peer and national standards.

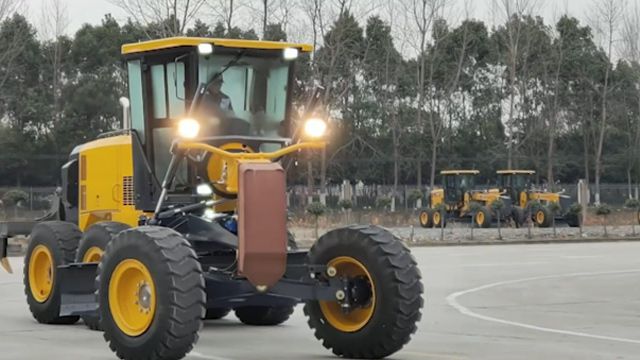

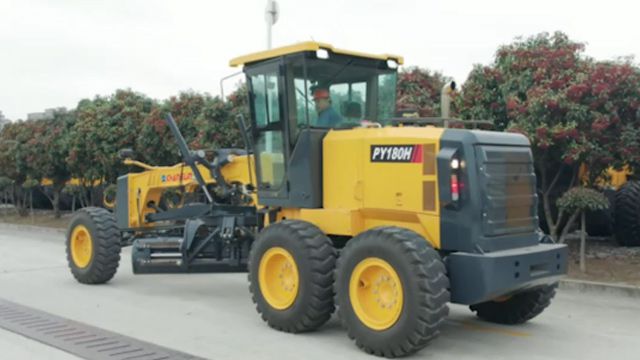

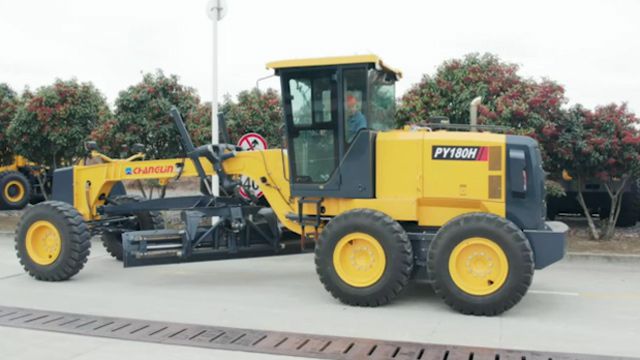

    Videos
    Related products
      1. Motor Grader PY190H
      2. Motor Grader PY190H
        Operating Weight 15600Kg Rated Power 142kW Blade Width 4268mm
      1. Motor Grader PY220H
      2. Motor Grader PY220H
        Operating Weight 16100/15800Kg Rated Power 162/160kW Blade Width 4320mm
      1. Motor Grader PY240H
      2. Motor Grader PY240H
        Operating Weight 20000Kg Rated Power 179kW Blade Width 4420mm
      1. Motor Grader PY320T
      2. Motor Grader PY320T
        Operating Weight 28000KG Rated Power 246kW Blade Width 4620mm
      1. Motor Grader PY350T
      2. Motor Grader PY350T
        Operating Weight 28000KG Rated Power 268kW Blade Width 4920mm
      1. Motor Grader PY130H
      2. Motor Grader PY130H
        Operating Weight 12000Kg Rated Power 97kW Blade Width 3658mm
      1. Motor Grader PY150H
      2. Motor Grader PY150H
        Operating Weight 12000Kg Rated Power 110kW Blade Width 3658mm
      1. Motor Grader PY180H
      2. Motor Grader PY180H
        Operating Weight 14500Kg Rated Power 132kW Blade Width 3658mm
