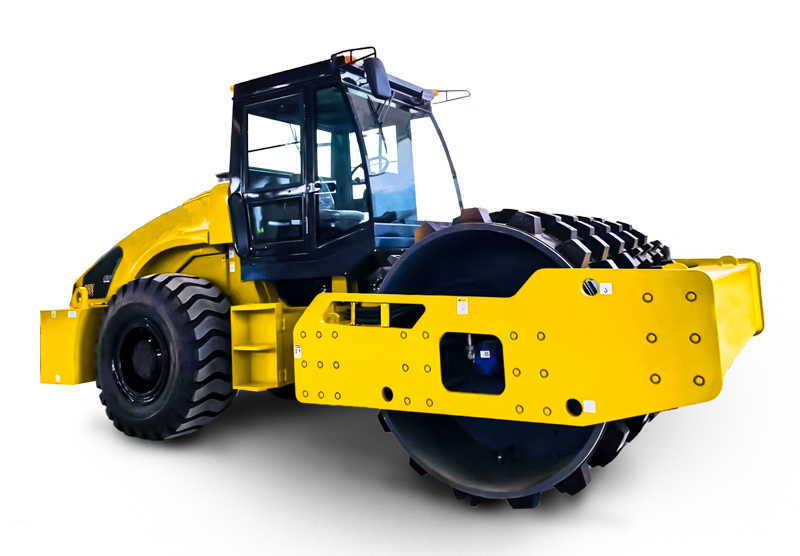

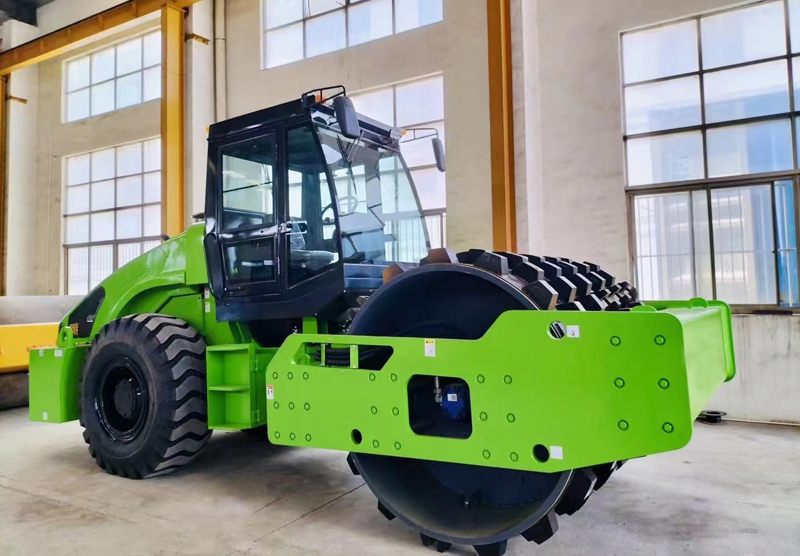

Single Drum Road Roller (Hydraulic Drive) GYS202J

  • Rated power: 140kW
  • Centrifugal force: 385/260KN
  • Operating weight: 20000kg
Inquiry
Single Drum Road Roller (Hydraulic Drive) GYS202J
  • Single Drum Road Roller (Hydraulic Drive) GYS202J
  • Single Drum Road Roller (Hydraulic Drive) GYS202J
    • Specifications
    Model GYS202J
    Operating weight 20000kg
    Overall dimensions
    Length (mm) 6360
    Width (mm) 2300
    Height (mm) 3100
    Min. ground clearance (mm) 450
    Wheelbase (mm) 3200
    Engine
    Manufacturer WEICHAI
    Model WP6G190E22（Ⅱ）
    Rated power (kW) 140
    Rated speed (r/min) 2200
    Cooling type Water cooled
    Working equipment
    Drum diameter (mm) 1600
    Compaction width (mm) 2130
    Static linear load (N.m) 575
    Vibratory amplitude (mm) 1.9/0.9
    Vibratory frequency (Hz) 28/32
    Centrifugal force (kN) 385/260
    Walking system
    Forward speed (km/h) 0-4/0-5.5/0-6.5/0-10
    Reverse speed (km/h) 0-4/0-5.5/0-6.5/0-10
    Gradeability 45%
    Min. turning radius(mm) 6500
    Tyre 20.5-25
    Features
    • WEICHAI engine, 4-cylinder supercharged.
    • Fully hydraulic drive, two-speed option, stepless speed change.
    • Hydraulic front drum vibration, dual-frequency and double amplitude.
    • Hydraulic steering, articulated frame.
    • Hydraulic service brake, electronically controlled parking brake caliper.
    • Engine hood can be flipped up at a wide angle for easy maintenance.
    • Hydraulic components adopt internationally renowned brands with reliable performance.
    • Standard cabin with optional A/C.
