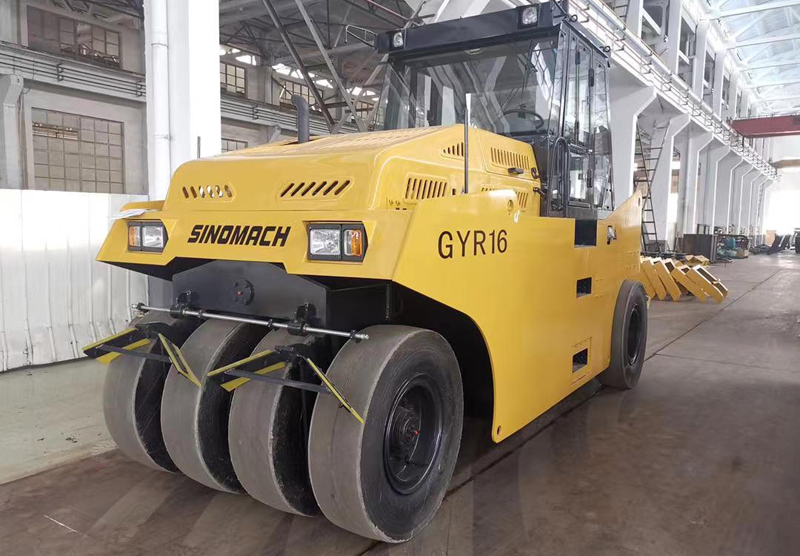

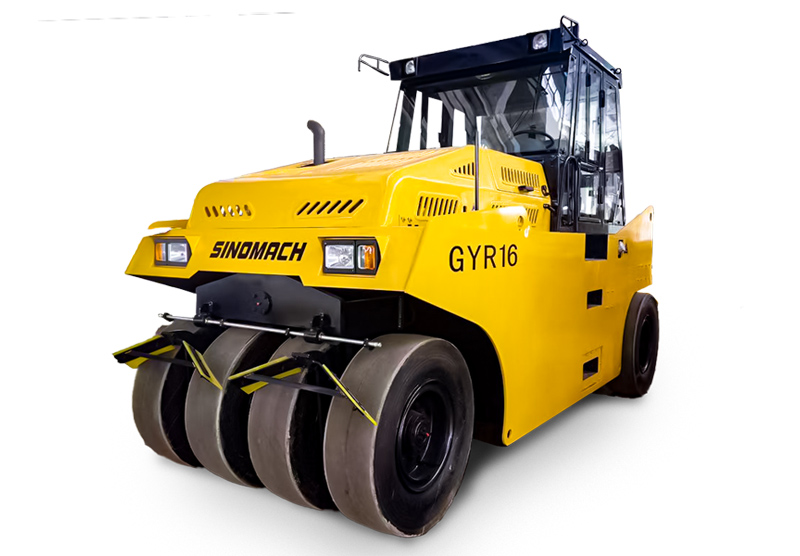

Pneumatic Tire Roller (Hydraulic Drive) GYR163L

GYR163L pneumatic tire roller is specially designed for the compaction of cohesive and non-cohesive materials, such as asphalt concrete, cement or lime, stabilized soils, gravels, sands and clay mixtures, Roller-Compacted Concrete (RCC) in the construction projects. It’s ideal for applications like wear courses and binder courses in the highway.

  • Rated power 75kW
  • Compaction width 2280mm
  • Operating weight 10000Kg
Inquiry
Pneumatic Tire Roller (Hydraulic Drive) GYR163L
  • Pneumatic Tire Roller (Hydraulic Drive) GYR163L
  • Pneumatic Tire Roller (Hydraulic Drive) GYR163L
    • Specifications
    Operating weight (kg) 10000
    Counterweight (kg) 6000
    Max. operating weight (kg) 16000
    Compaction width (mm) 2280
    Tire number F4R5
    Tire model 11.00-20
    Max. Travelling speed (km/h) 0-14
    Wheelbase (mm) 3700
    Gradeability 30%
    Min. turning radius (mm) 7500
    Engine model CUMMINS 4BT3.9
    Rated power (kW) 75
    Rated speed (rpm) 2200
    Dimension (LxWxH) (mm) 4780x2280x3200
    Transmission Hydraulic
    Fuel tank (L) 223
    Hydraulic oil tank (L) 91
    Features
    • The pneumatic tire roller comes with low gravity center design, allowing for safe and comfortable operation.
    • With step-less speed changes, it’s easy and reliable to operate.
    • The plastic water spray tank is mainly reinforced with glass fiber, ensuring high durability. In addition, mufti-layer water spray improves working efficiency and ensures uniform water spraying.
    • The filter ensures the stability of the system.
    • The pneumatic tire roller adopts 4BT Cummins engine, which is suitable for use in all environments.
    • Front wheel is designed with automatic adjustable heating device.
