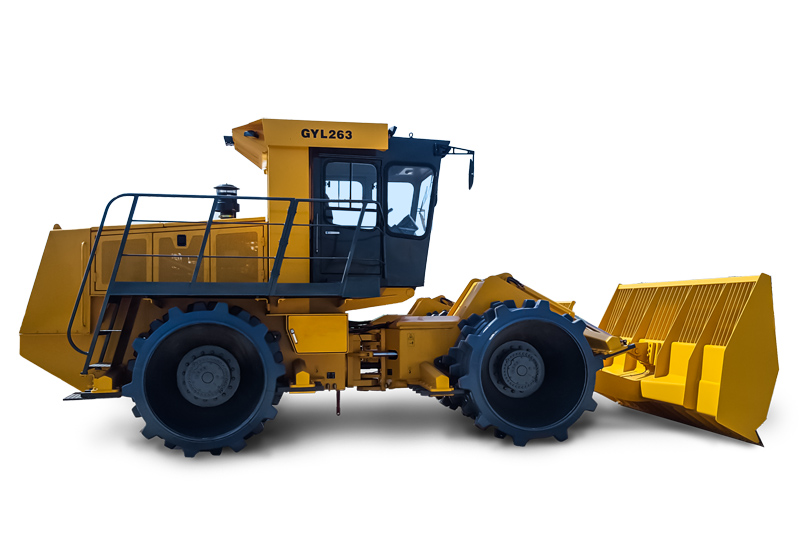

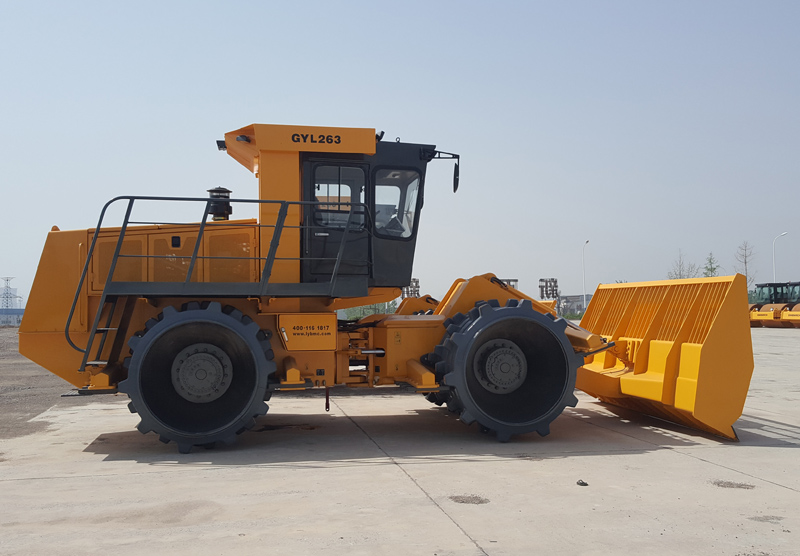

Landfill Compactor GYL263

GYL263 landfill compactor is a refuse compactor that has functions of pushing, spreading, pulverizing, demolishing and compacting of waste materials, which is essential equipment for landfill sites. The landfill compactor helps improve the densities of compacted materials, thus saving land area, minimizing environmental pollution and extending operating life of the landfill site.

  • Rated Output: 147kW
  • Rolling Width: 2910mm
  • Operating Weight: 23000kg
Inquiry
Landfill Compactor GYL263
  • Landfill Compactor GYL263
  • Landfill Compactor GYL263
    • Specifications
    Model GYL263
    Operating weight (kg) 23000
    Rolling width (mm) 3430
    Travel speed (km/h) 4.2/10.0
    Gradeability (%) 100
    Dozer blade dimensions (Width×height) (mm) 1650×3000
    Wheelbase (mm) 3350
    Clearance (mm) 435
    Wheel width (front/reverse) (mm) 1040/835
    Wheel diameter (front / rear, teeth included) 1500/1500
    Teeth No. per wheel (front / rear) 50/40
    Diesel engine model SC8DK200G3
    Diesel engine power (kW) 147
    Overall dimensions (dozer blade included)(LxWxH) (mm) 7355x3000x3600
    Overall dimensions(front wheel included)(LxWxH) (mm) 7355x2910x3600
    Features
    • SHANGCHAI water-cooled turbocharged diesel engine with the cold starting system.
    • Torque converter and power gearshift transmission are applied on four wheels.
    • The high wear life teeth are arranged specially, two scraper bars and two wire cutters on four compaction wheels will avoid the wire wrap-around and keep the wheel clean.
    • The crucial spots are maintained regularly by the central lubrication system. The disinfector spray device is equipped to guard against mosquito.
    • The Roll-Over Protective Structure (ROPS) as an integral part of the frame, service brakes on the front and rear axles and central parking brake will guarantee most reliable safety.
    • Turnover driver's cabin, engine hood with three windows at dual sides, access step and protective ladder in both sides make main components accessible.
    • Infrared vehicle video monitor system and backup buzzer are greatly convenient for driver's travel and working with more safe in increased rear view.
