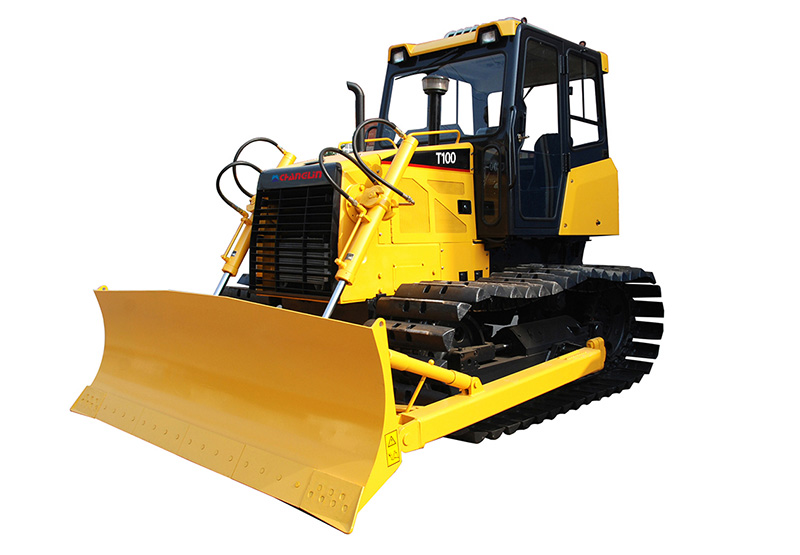

Bulldozer GT100

The GT100 bulldozer adopts mechanical transmission with power assisted steering for easy operation, which consumes 15%-20% less fuel than hydraulic transmission system. This bulldozer has extensive applications in agricultural farms due to its features of low failure rate, less maintenance cost and high work efficiency.

  • Operating Weight: 10400Kg
  • Rated Power: 81kW
  • Max. Traction Force: 95kn
Inquiry
Video
Bulldozer GT100
Main Performance
  • Engine: the bulldozer adopts the engine produced with British Ricardo joint-venture technology, which complies with national II emission standard, and has features of low noise, high torque, excellent energy efficiency and environmental friendliness;
  • Main clutch: dry-type multiple disc clutch is used to ensure high torque reserve and outstanding reliability;
  • Gearbox: 4F+2R mechanical gear-shifting gearbox offers reliable running, easy operation and simple maintenance;
  • Steering clutch: the bulldozer utilizes dry-type multiple disc steering clutch which is manually operated and hydraulically-assisted, providing smooth powerful turns;
  • Transmission: the use of two-stage, straight teeth, large modulus gear transmission enables the bulldozer to achieve strong carrying capacity with high reliability;
  • Cab: the bulldozer is designed with luxury cab with overhead air-conditioning system, making the operating space more comfortable;
  • Optional devices: straight-tilt shovel, angle shovel, coal shovel and so on;
  • Specifications
  • Features
  • Videos
  • Request a Quote
Specifications
Model GT100
Total weight 10400kg
Max. towing force 95kN
Engine model LR6A3-23
Rated power/speed of engine 81/2300kW/r/min
Fuel consumption of engine ≤242g/kW.h
Max. torque of engine 400N.m
Forward 1-4 gear 2.6~10.4km/h
Reverse 1-2 gear 3.7~6.7km/h
Track board width 450mm
Ground pressure 54.4kPa
Overall dimension (LxWxH) 4190x3240x3060mm
Bulldozer shovel (WxH) 2935x960mm
Max. lifting height of blade 830mm
Max. digging depth of blade 350mm
Towing equipment/scarifier (optional) Stationary type/three tooth
Bulldozer GT100
Bulldozer GT100
Features
  • Crawler Excavator GT100

    The bulldozer adopts mechanical transmission with power assisted steering for easy operation, which consumes 15%-20% less fuel than hydraulic transmission system. It has extensive applications in agricultural farms due to its features of low failure rate, less maintenance cost and high work efficiency.

  • Crawler Excavator GT100

    A newly developed air intake system is used in the engine to prolong the service life of the engine.

  • Crawler Excavator GT100

    The sealed and lubricated track is used to keep abrasives out, and keep the lubricant inside the pin and bushing joint therefore preventing internal pin and bushing wear. It provides 25% longer service life than that of unsealed track.

  • Crawler Excavator GT100

    Engine side cover facilitates maintenance access, and a handle is added for operator's safety during the repairing process.

  • Crawler Excavator GT100

    The bulldozer is designed with a new cab, giving a superior look and increased visibility.

  • Crawler Excavator GT100

    The ergonomic cab design enables increased interior space, easy-to-use joystick controls keep the operator more comfortable and make work easier and more precise with less labor intensity. The use of adjustable seat, improved steering and vibration-damping floor efficiently minimizes the vibration transmitted into cab under severe working conditions, thus further improving operator's comfort.

  • Crawler Excavator GT100

    Roof-mounted air conditioner improves the air circulation in the cab, creating a green working environment.

  • Crawler Excavator GT100

    Superior cab sealing performance ensures sound insulating and noise reducing, efficiently keeping driver from ambient interference.
