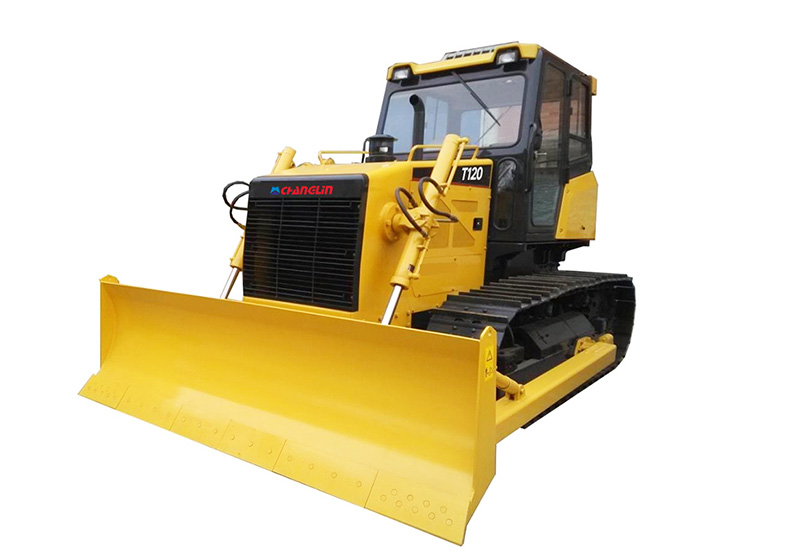

Bulldozer GT120

The GT120 bulldozer adopts mechanical transmission with power assisted steering for easy operation, which consumes 15%-20% less fuel than hydraulic transmission system. This bulldozer has extensive applications in agricultural farms due to its features of low failure rate, less maintenance cost and high work efficiency.

  • Operating Weight: 13000Kg
  • Rated Power: 110kW
  • Max. Traction Force: 115Kn
Inquiry
Video
Bulldozer GT120
Main Performance
  • Engine: the bulldozer adopts the engine produced with British Ricardo joint-venture technology, which offers low fuel consumption and large torque reserve coefficient;
  • Steering clutch: the dry-type steering clutch uses multi-plate structure with manual hydraulic power control, providing smooth powerful turns, easy operation and maintenance;
  • Air filter: desert type air filter is configured to adapt to coal yard, desert and other special working conditions;
  • Cab: the bulldozer is designed with luxury cab with overhead air-conditioning system, making the operating space more comfortable;
  • Electronic monitoring system: the entire bulldozer is monitored in real-time, guaranteeing smooth operation;
  • Optional devices: straight-tilt shovel, sanitation shovel, scarifier, other devices are available;
  • Bulldozer with "S" model is suitable for water and electricity engineering, farmland leveling, river and pond digging in wet and muddy working conditions;
  • Specifications
  • Features
  • Videos
  • Request a Quote
Specifications
Model GT120
Total weight 13000kg
Max. towing force 115kN
Engine model LR6A3Z-20
Rated power/speed of engine 93/2000kW/r/min
Fuel consumption of engine ≤246g/kW.h
Forward 1-4 gear 2.4~10.6km/h
Reverse 1-2 gear 3.9~7.1km/h
Track board width 500mm
Ground pressure 51kPa

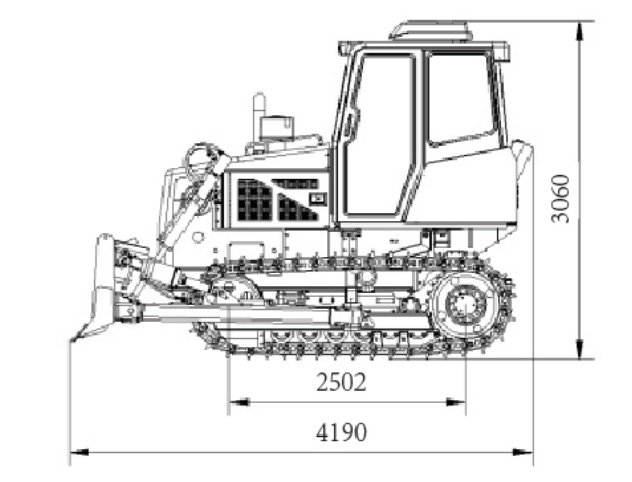

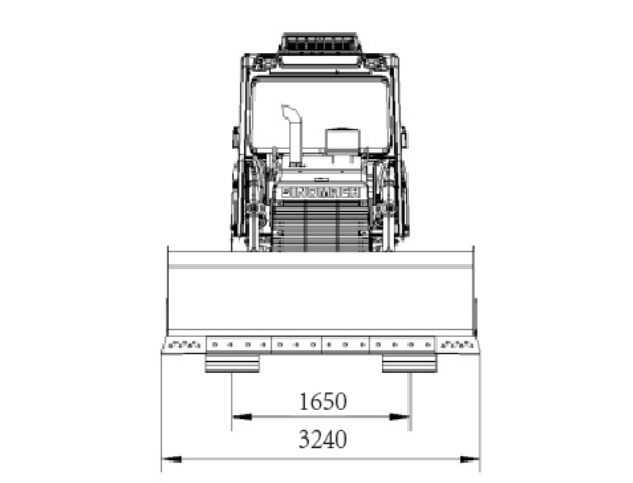

Overall dimension (LxWxH) 4535*3135*3230mm
Bulldozer shovel (WxH) 3135x970mm
Max. lifting height of blade 894mm
Max. digging depth of blade 400mm

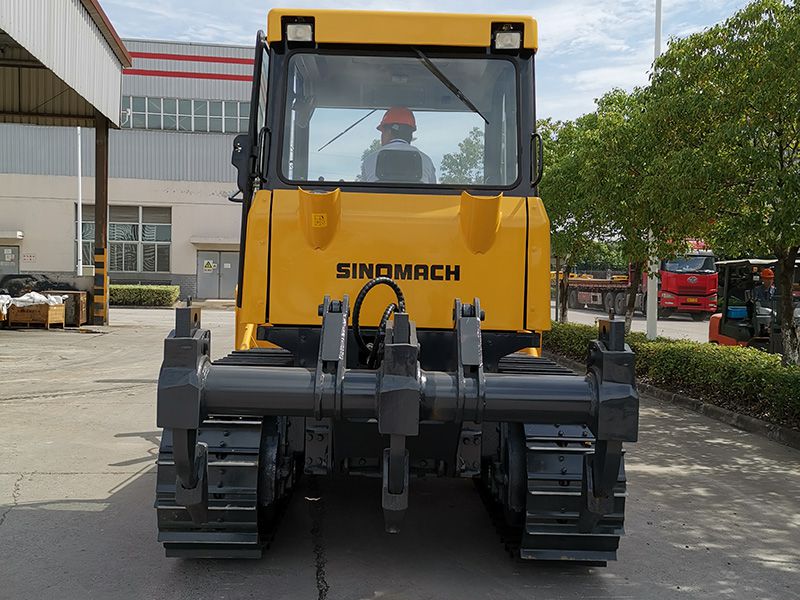

Towing equipment/scarifier (optional) Stationary type/three tooth
Bulldozer GT100
Bulldozer GT100
Features
  • Bulldozer GT120

    The bulldozer adopts mechanical transmission with power assisted steering for easy operation, which consumes 15%-20% less fuel than hydraulic transmission system. It has extensive applications in agricultural farms due to its features of low failure rate, less maintenance cost and high work efficiency.

  • Bulldozer GT120

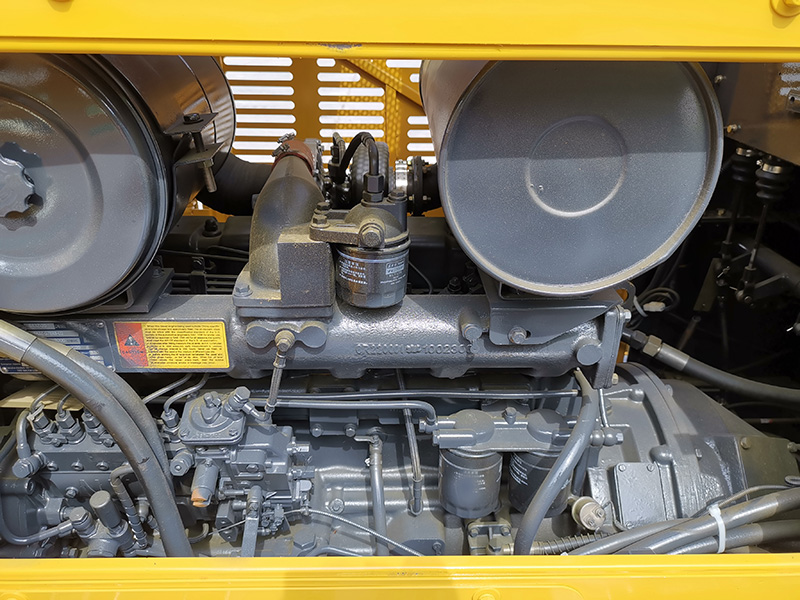

    A newly developed air intake system is used in the engine to prolong the service life of the engine.

  • Bulldozer GT120

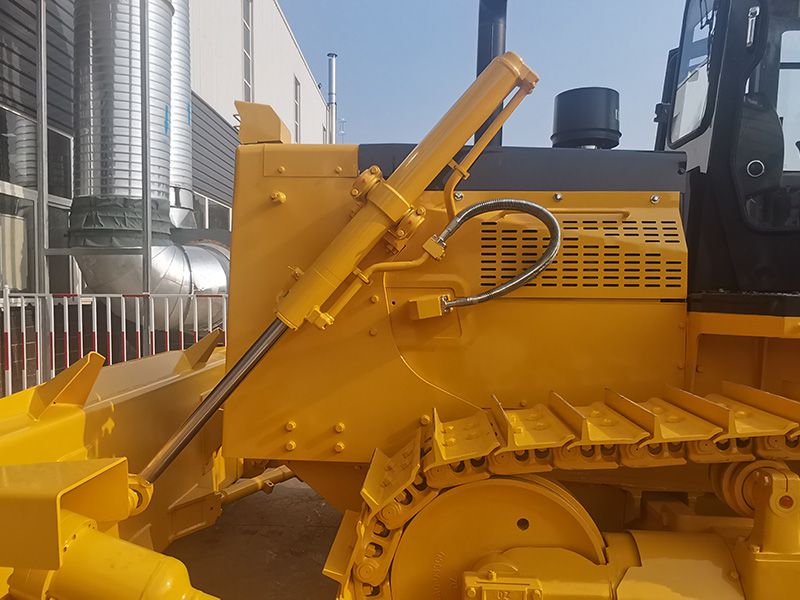

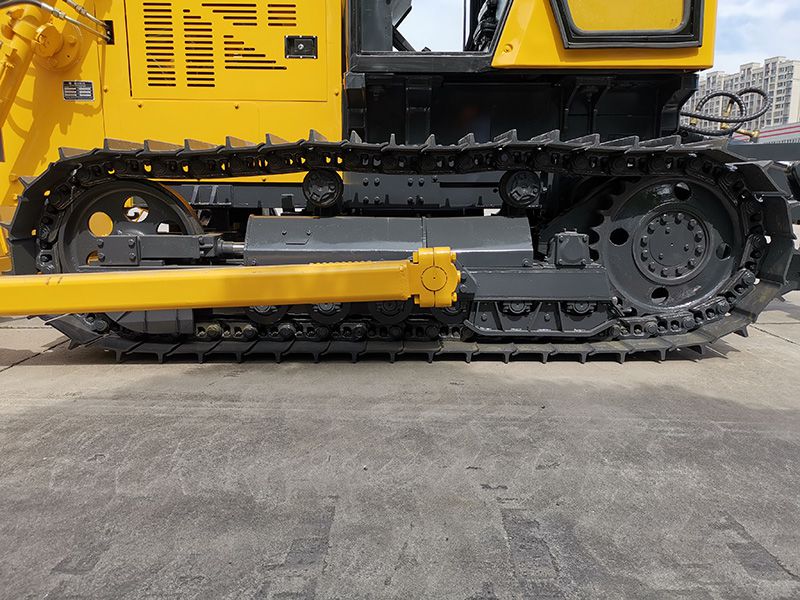

    The sealed and lubricated track is used to keep abrasives out, and keep the lubricant inside the pin and bushing joint therefore preventing internal pin and bushing wear. It provides 25% longer service life than that of unsealed track.

  • Bulldozer GT120

    Engine side cover facilitates maintenance access, and a handle is added for operator's safety during the repairing process.

  • Bulldozer GT120

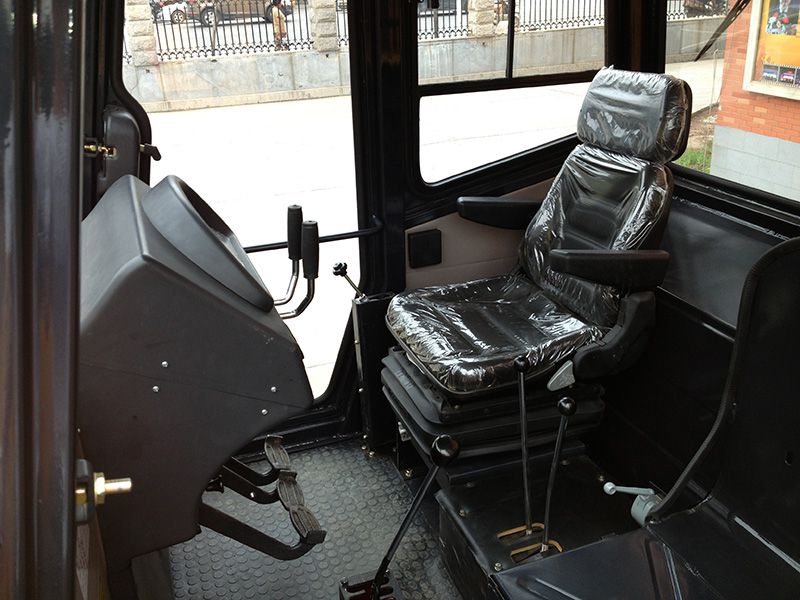

    The bulldozer is designed with a new cab, giving a superior look and increased visibility.

  • Bulldozer GT120

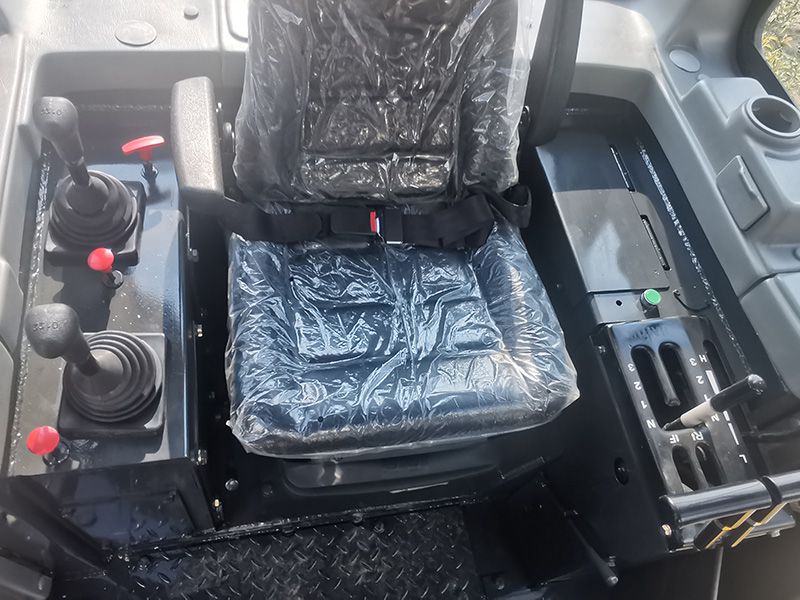

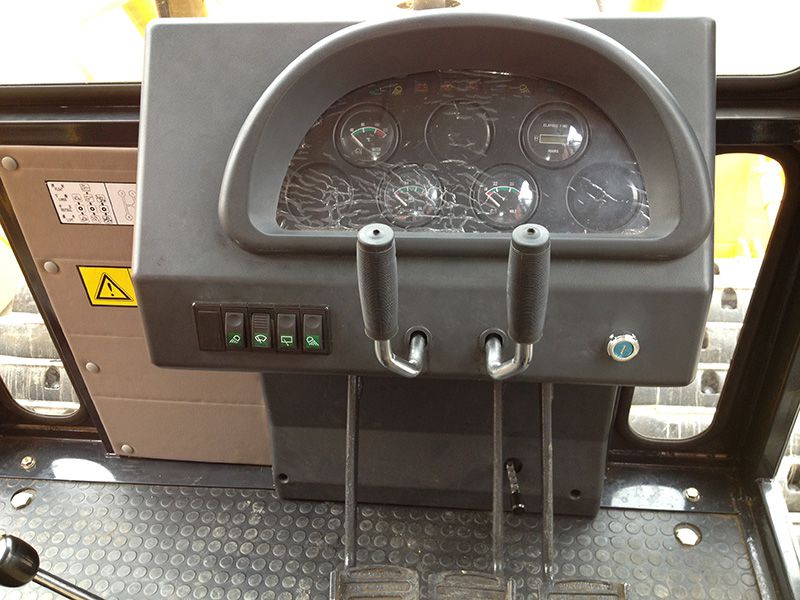

    The ergonomic cab design enables increased interior space, easy-to-use joystick controls keep the operator more comfortable and make work easier and more precise with less labor intensity. The use of adjustable seat, improved steering and vibration-damping floor efficiently minimizes the vibration transmitted into cab under severe working conditions, thus further improving operator's comfort.

  • Bulldozer GT120

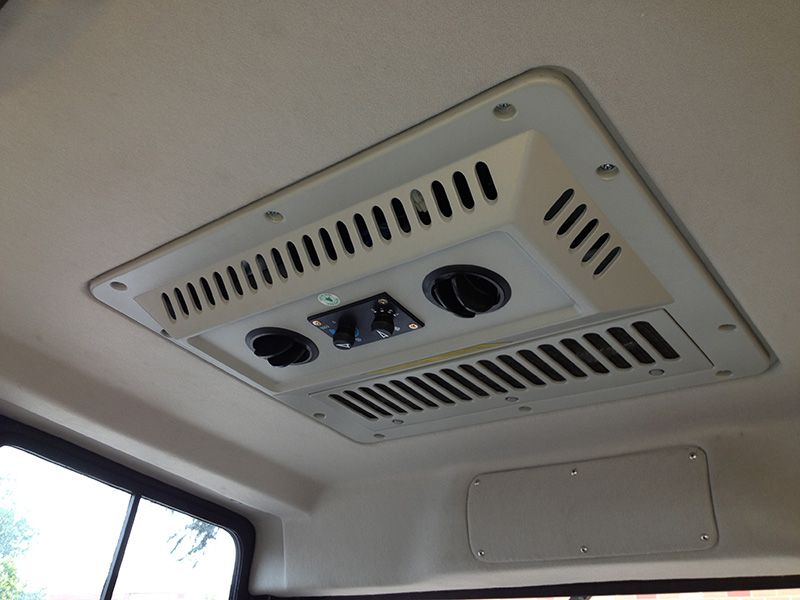

    Roof-mounted air conditioner improves the air circulation in the cab, creating a green working environment.

  • Bulldozer GT120

    Superior cab sealing performance ensures sound insulating and noise reducing, efficiently keeping driver from ambient interference.

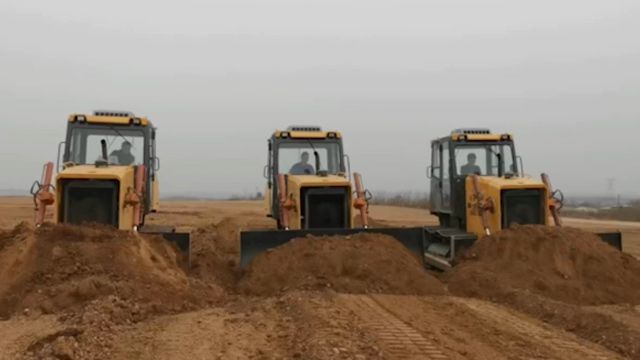

Videos
