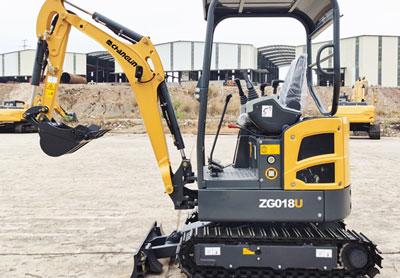

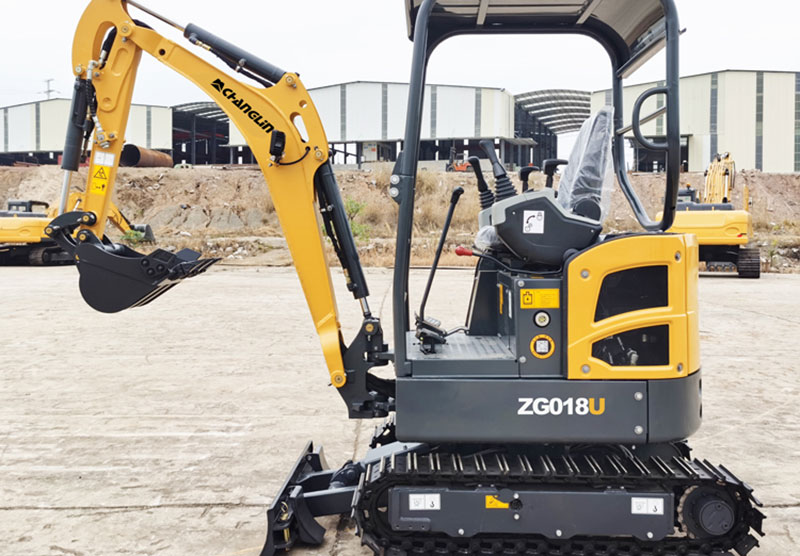

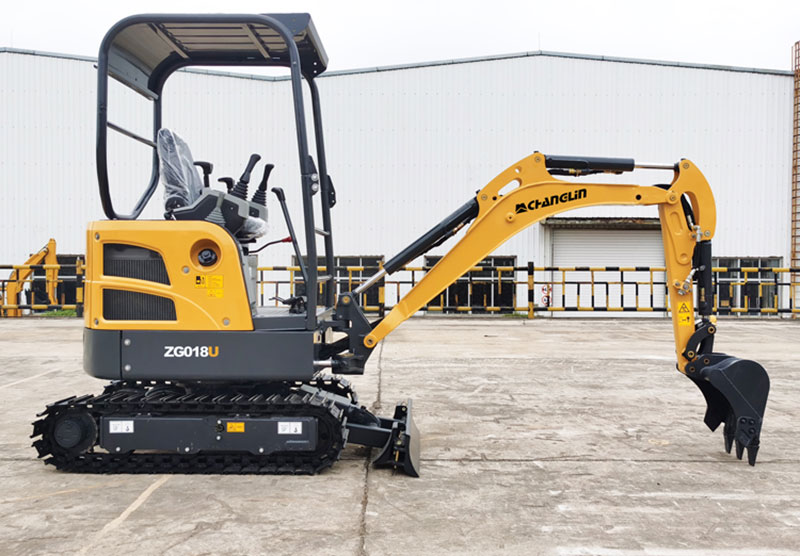

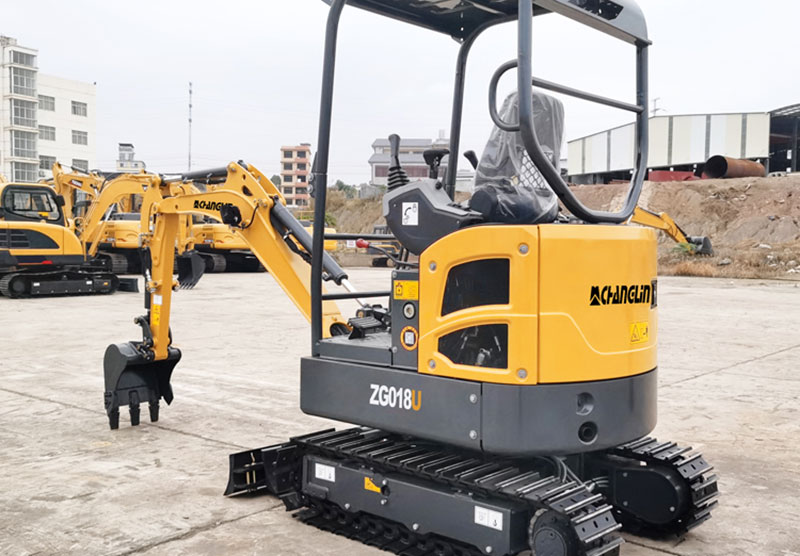

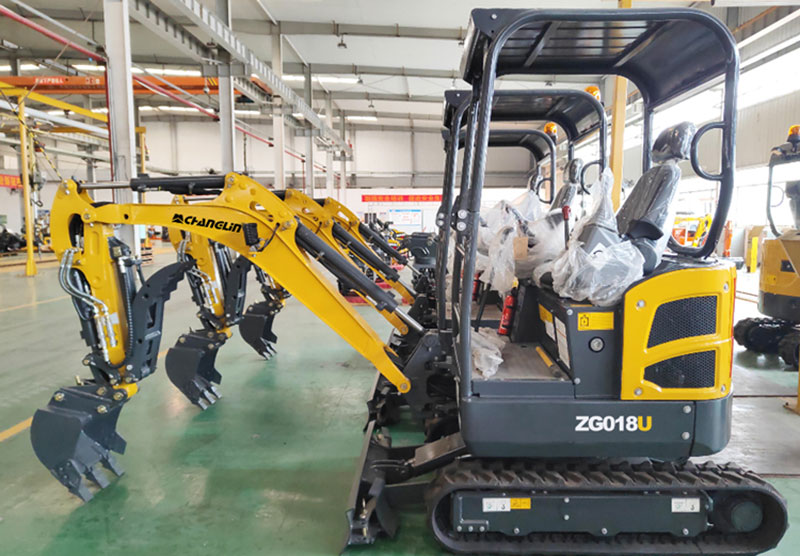

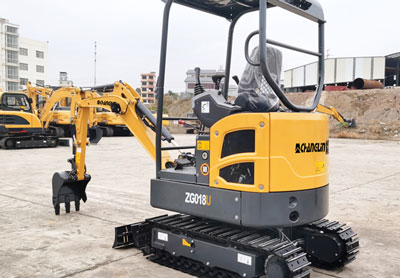

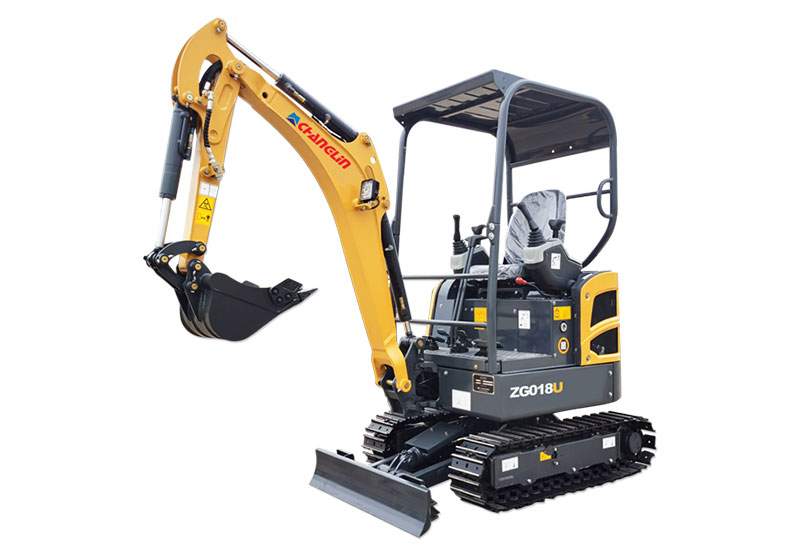

Mini Excavator ZG018U

The ZG018U mini excavator is equipped with a high-power Yanmar engine that complies with Euro 5 and Tier4F emission regulations. This excavator features coordinated movements, fast response, and efficient operation for energy savings. The driving space is spacious and comfortable, with ergonomic design. It is capable of handling various applications with ease.

  • Operating Weight 1,880KG
  • Rated Power 14.5/15.2KW
  • Bucket Capacity 0.05m³
Inquiry
Mini Excavator ZG018U
  • Mini Excavator ZG018U
  • Mini Excavator ZG018U
  • Mini Excavator ZG018U
  • Mini Excavator ZG018U
  • Mini Excavator ZG018U
    • Specifications
    • Features
    • Request a Quote
    Specifications
    Model ZG018U
    Operating weight (kg) 1,880
    Rated bucket capacity (m3) 0.05
    Overall length (mm) 3,690
    Overall width (mm) 1,080
    Overall height (mm) 2,350
    Standard track shoe width (mm) 230
    Travelling speed (Km/hr) 2/4
    Swing speed (rpm) 8.5-10.5
    Max. Gradeability (Degree) 30
    Maximum digging radius (mm) 4,125
    Maximum digging depth (mm) 2,295
    Maximum digging height (mm) 3,620
    Bucket digging force (kN) 17.2
    Arm digging force (kN) 9.5
    Engine model Yanmar 3TNV76/ 3TNV80F
    Rated power 14.5kW/2,400rpm
    15.2kW/2,500rpm
    Features
    • Mini Excavator ZG018U

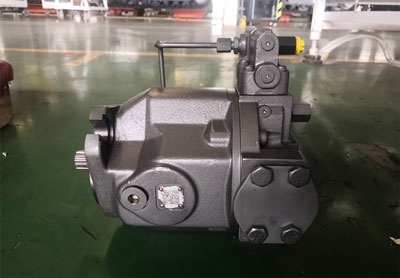

      Strong power

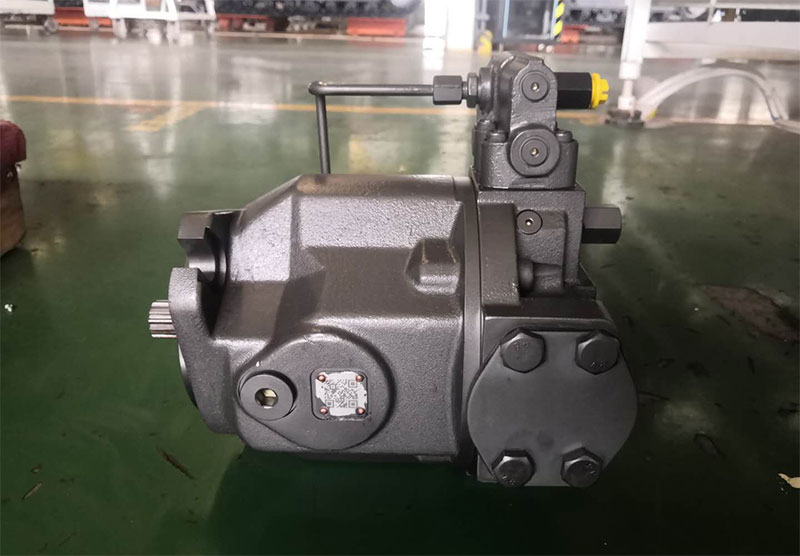

      Here's a revised version of the statement: The Yanmar imported high-power engine of the ZG018U mini excavator is a perfect match for its load-sensitive system. Its biggest feature is its coordinated movements, fast response, efficient operation, and energy-saving capabilities. Additionally, it meets the National 4, Euro V, and Tier4F emissions standards, making it an eco-friendly choice for construction sites.

    • Mini Excavator ZG018U

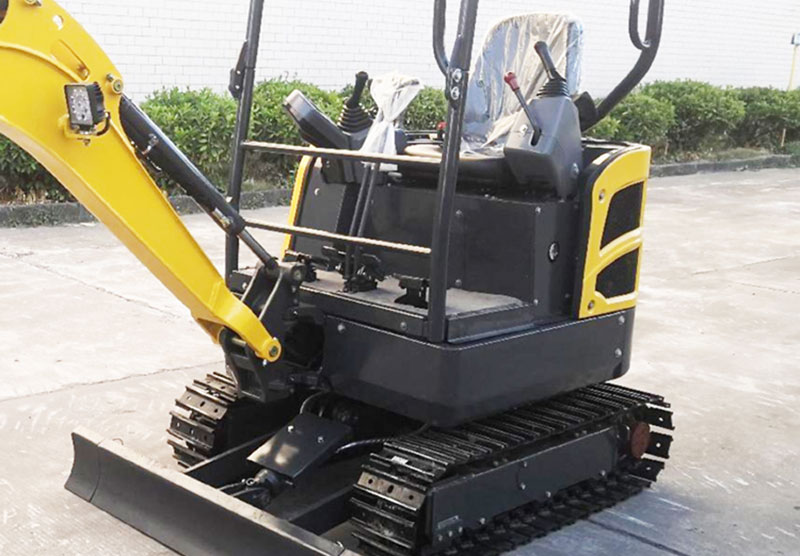

      The most spacious and comfortable driving space

      The ZG018U mini excavator offers an ergonomic sitting posture, ensuring comfort and ease of operation for the operator's hands, feet, back, and sitting posture. It also features an aluminum alloy folding large foot pedal and a large LCD display for easy operation. The excavator's interchangeable shock-absorbing seats provide additional comfort during long work hours. Additionally, users can choose between steel or rubber tracks for added versatility on various terrains.

    • Mini Excavator ZG018U

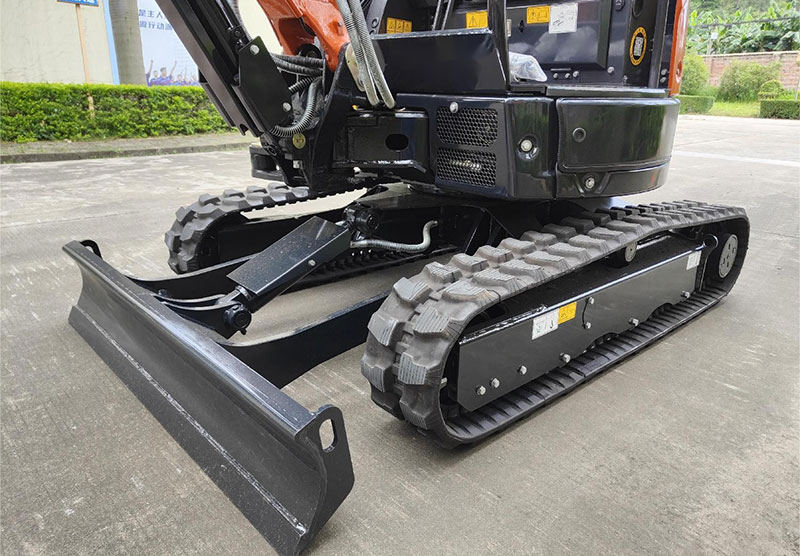

      The most trusted chassis

      The ZG018U mini excavator boasts a chassis assembly with independent patented technology, providing a reliable and sturdy foundation for the machine's operation. The excavator's interchangeable steel and rubber tracks offer additional versatility and adaptability for various terrains and working conditions.

    • Mini Excavator ZG018U

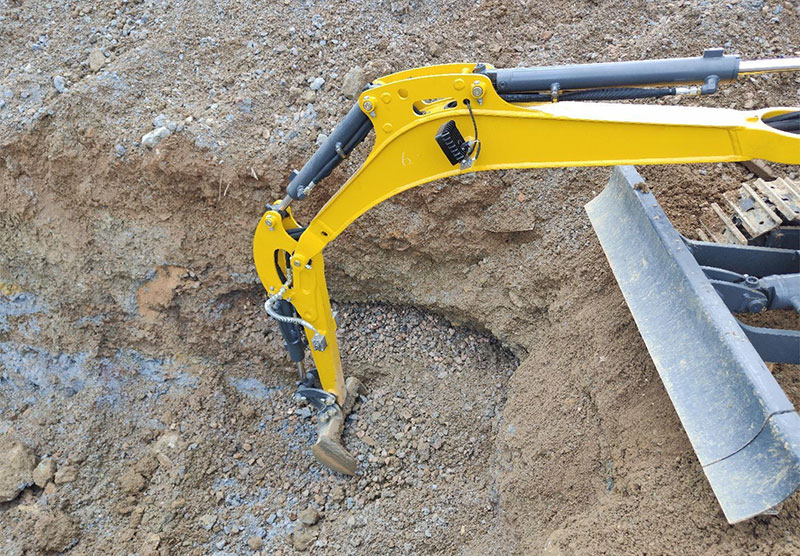

      The best handling performance of the same level of mini excavator

      The ZG018U mini excavator offers accurate and precise control with a soft touch, allowing for complex movements that are coordinated and smooth. The machine's efficient and energy-saving operation results in excellent operational stability and smoothness.

    • Mini Excavator ZG018U

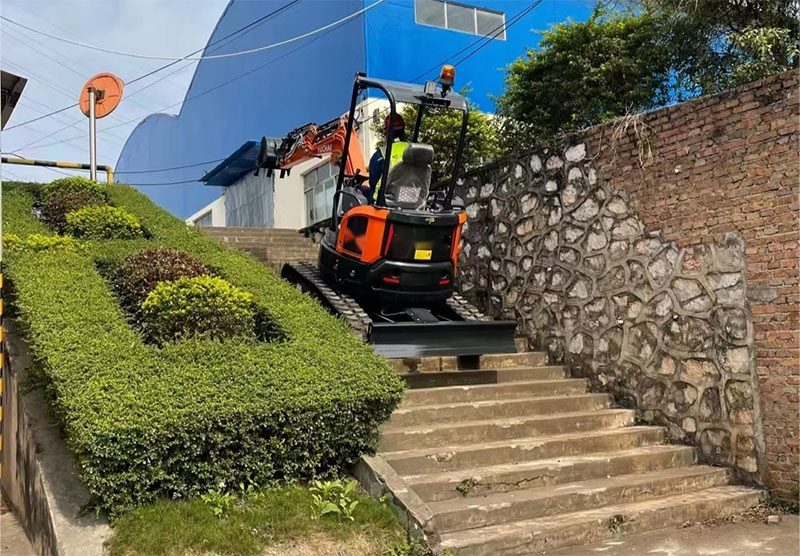

      Maximum climbing ability

      The ZG018U mini excavator boasts a traction force of 25kN, which is 23% higher than the industry benchmark.
