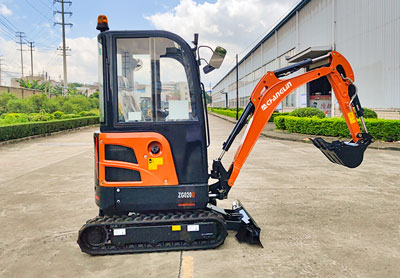

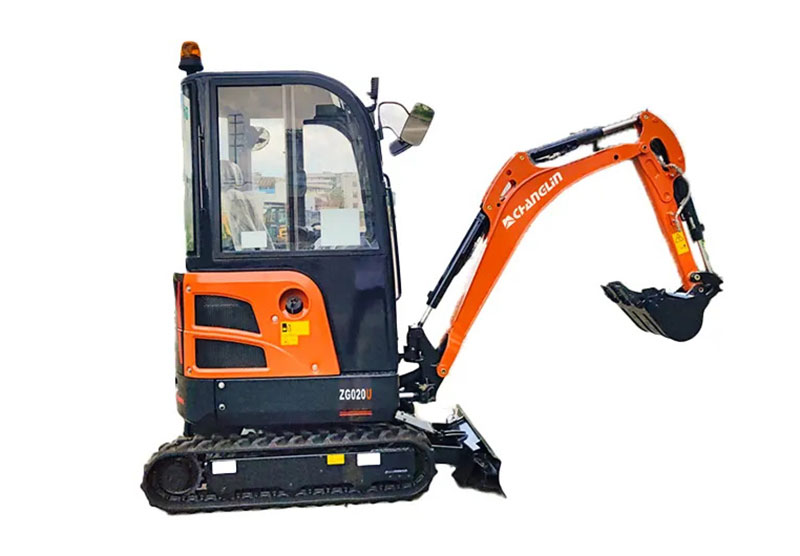

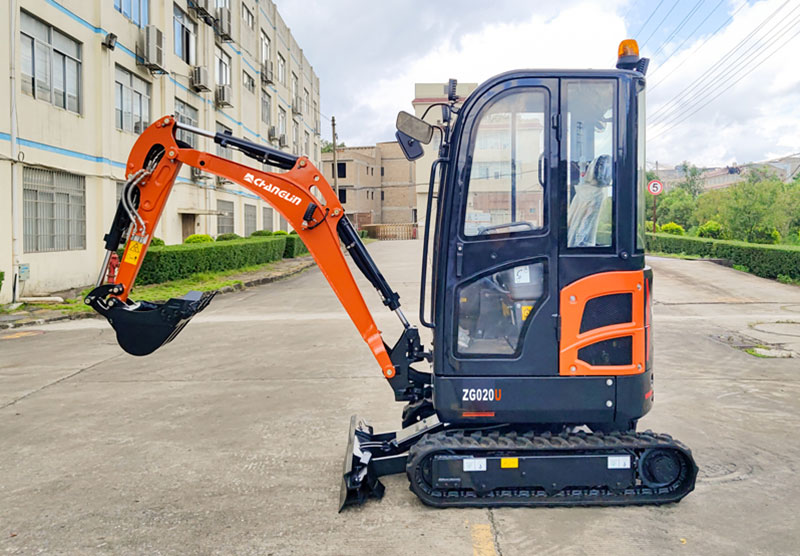

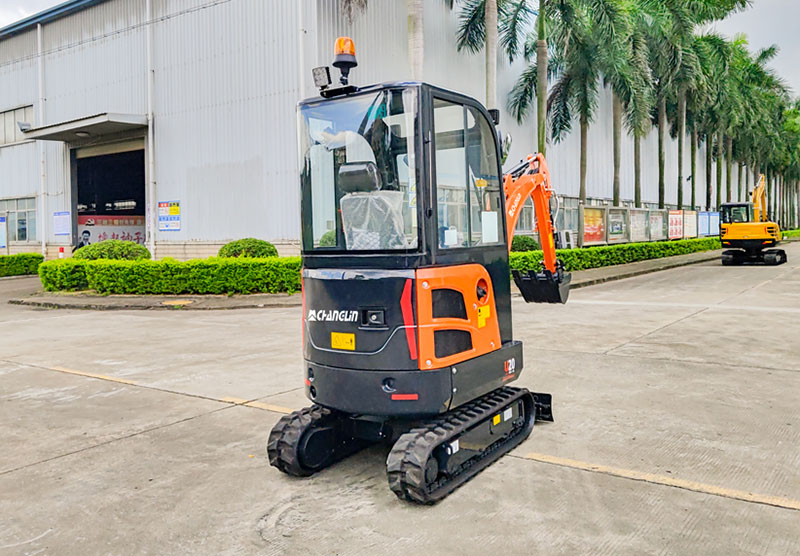

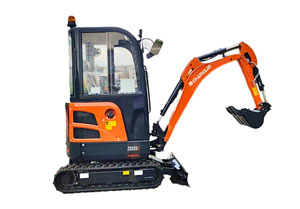

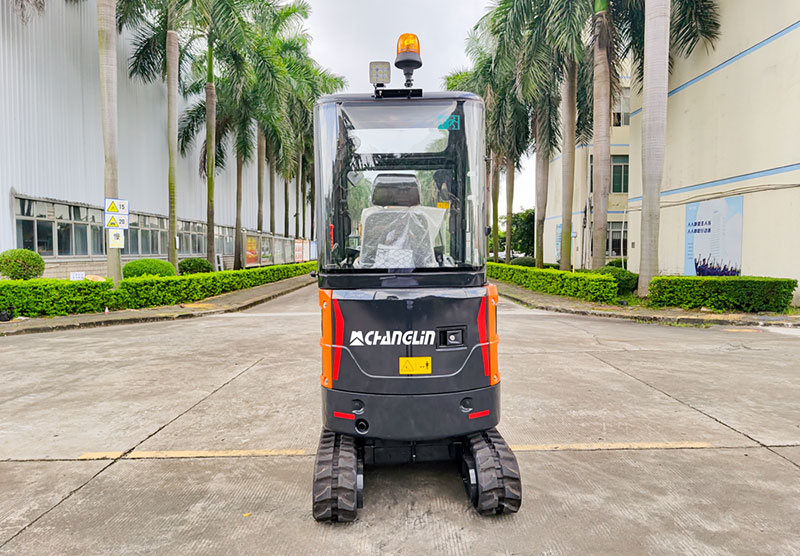

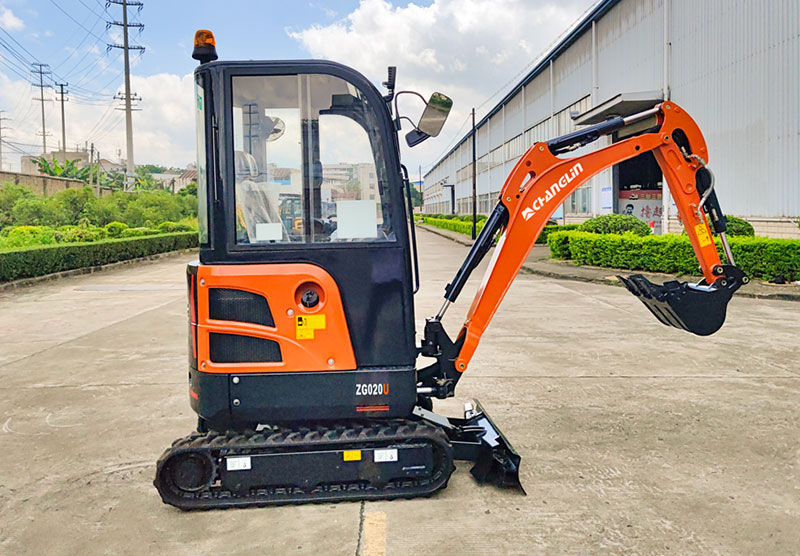

Mini Excavator ZG020U

This ZG020U model is the smallest mini excavator with a cab, featuring a powerful Yanmar engine that meets Euro 5 and T4 emissions standards. It boasts fast and coordinated movements, as well as efficient operation.

  • Operating Weight 2,000KG
  • Rated Power 14.5/15.2KW
  • Bucket Capacity 0.05m³
Inquiry
Mini Excavator ZG020U
  • Mini Excavator ZG020U
  • Mini Excavator ZG020U
  • Mini Excavator ZG020U
  • Mini Excavator ZG020U
  • Mini Excavator ZG020U
    • Specifications
    • Features
    • Request a Quote
    Specifications
    Model ZG020U
    Operating weight (Kg) 2,000
    Rated bucket capacity (m3) 0.05
    Overall length (mm) 3,750
    Overall width (mm) 1,080
    Overall height (mm) 2,365
    Standard track shoe width (mm) 230
    Travelling speed (Km/hr) 2/4
    Swing speed (rpm) 11
    Max. gradeability (Degree) 30
    Maximum digging radius (mm) 4,125
    Maximum digging depth (mm) 2,300
    Maximum digging height (mm) 3,615
    Bucket digging force (kN) 17.2
    Arm digging force (kN) 9.5
    Engine model Yanmar 3TNV76/ 3TNV80F
    Rated power 14.5kW/2,400rpm
    15.2kW/2,500rpm
    Features
    • Mini Excavator ZG020U

      Minimum micro excavation for cab driving

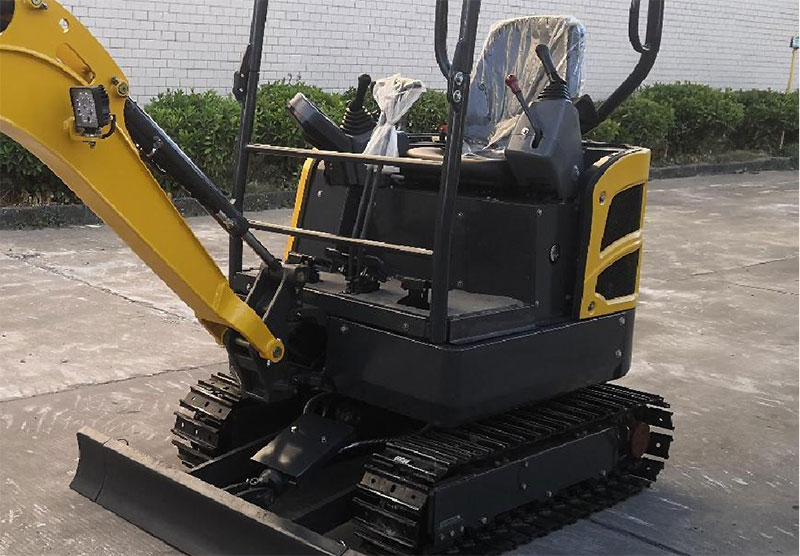

      • ZG018U and ZG020U share the same platform and interchangeable driving shed and cab.
      • Equipped with heating and large air conditioning, with an electric fan (no cold air)
      • Configured with 2 working lights and 1 alarm light for added safety
      • Features a sleek exterior and stylish interior design
    • Mini Excavator ZG020U

      Strong power

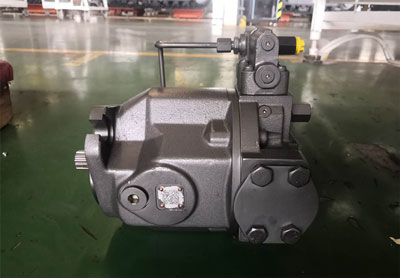

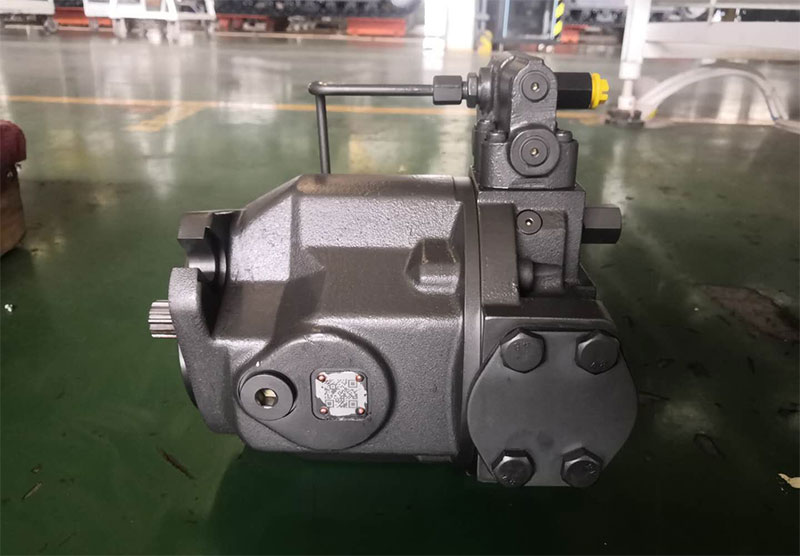

      The Yanmar imported high-power engine of the ZG020U mini excavator is a perfect match for its load-sensitive system. Its biggest feature is its coordinated movements, fast response, efficient operation, and energy-saving capabilities. Additionally, it meets the National 4, Euro V, and Tier4F emissions standards, making it an eco-friendly choice for construction sites.

    • Mini Excavator ZG020U

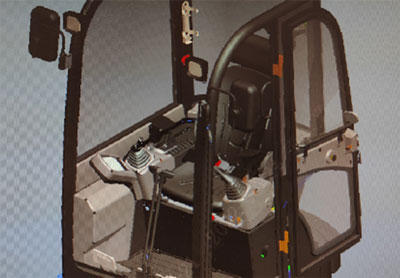

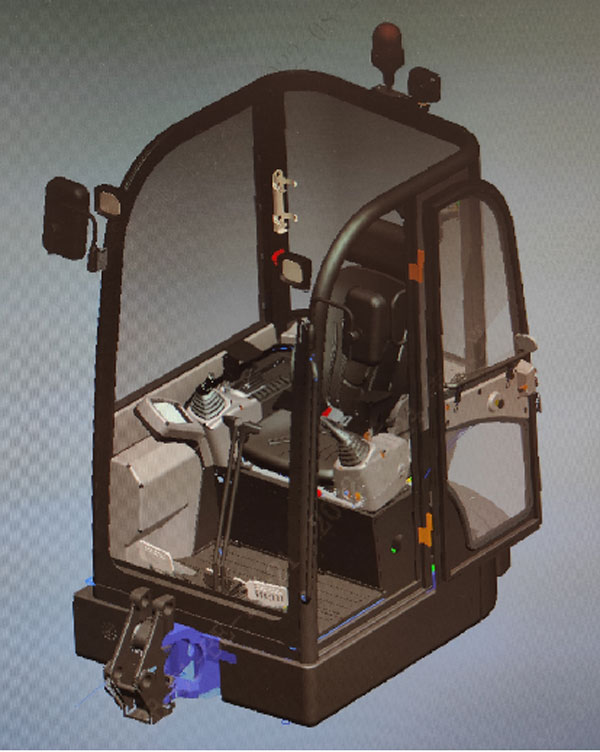

      The most spacious and comfortable driving space

      The ZG020U mini excavator offers an ergonomic sitting posture, ensuring comfort and ease of operation for the operator's hands, feet, back, and sitting posture. It also features an aluminum alloy folding large foot pedal and a large LCD display for easy operation. The excavator's interchangeable shock-absorbing seats provide additional comfort during long work hours. Additionally, users can choose between steel or rubber tracks for added versatility on various terrains.
