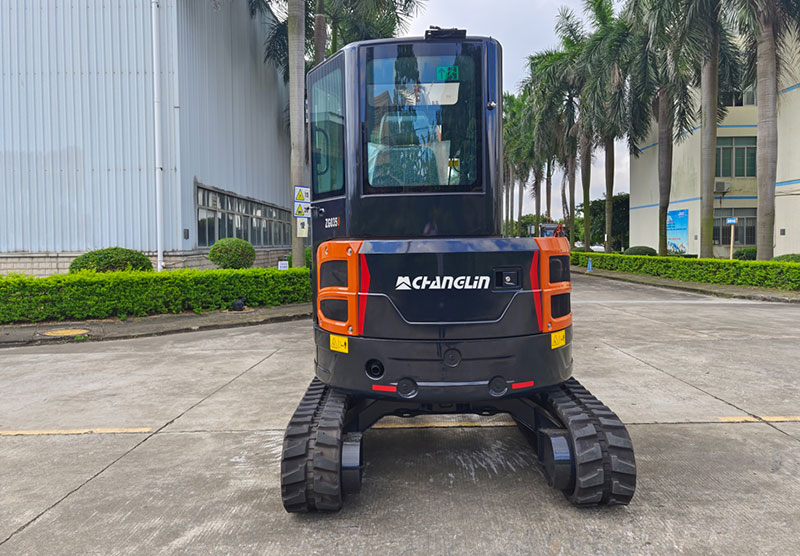

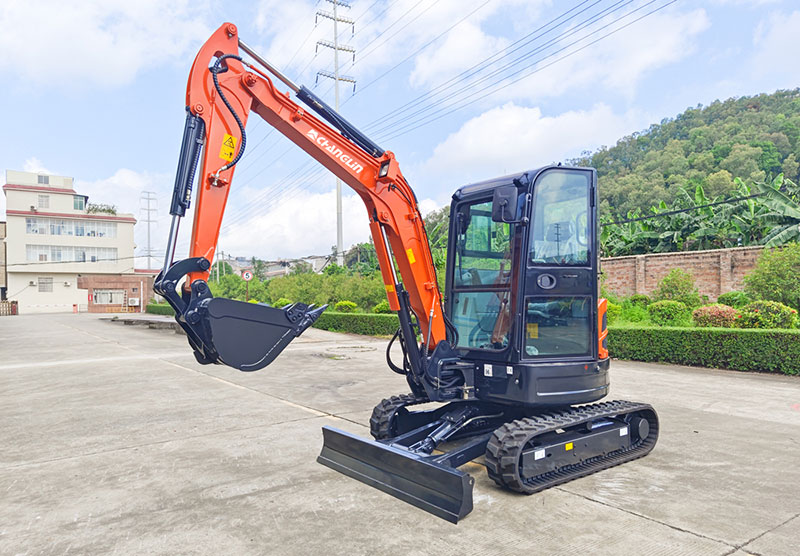

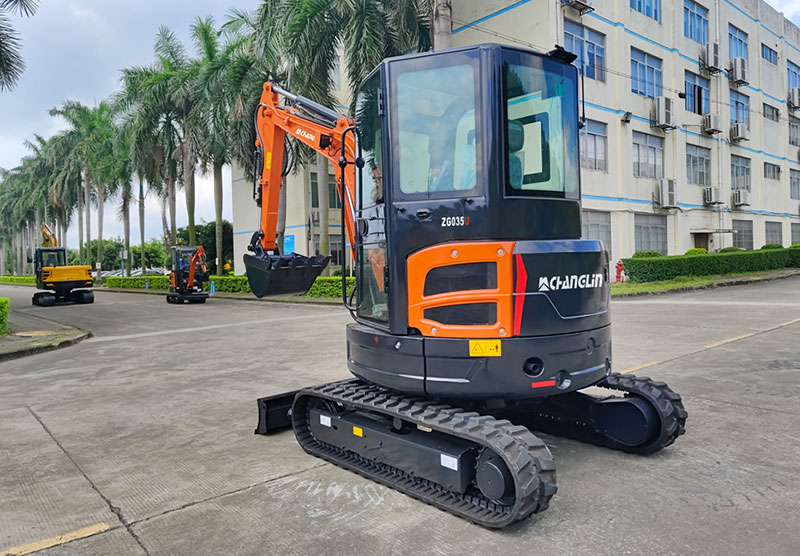

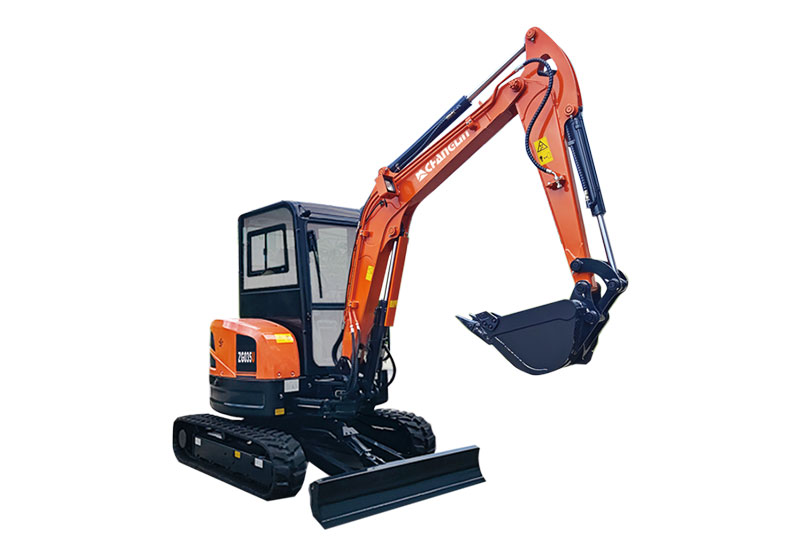

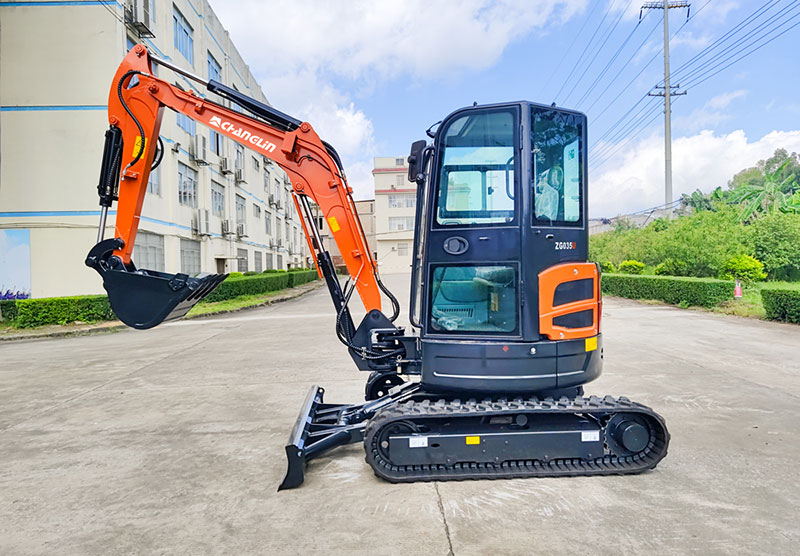

Mini Excavator ZG035U

The ZG035U is equipped with a high-power Yanmar engine that meets Euro 5/Tier4F emission standards. It boasts coordinated movements, fast response, strong power, efficient operation, and energy-saving capabilities.

  • Operating Weight 3,860KG
  • Rated Power 18.2KW
  • Bucket Capacity 0.12m³
Inquiry
Mini Excavator ZG035U
  • Mini Excavator ZG035U
  • Mini Excavator ZG035U
  • Mini Excavator ZG035U
  • Mini Excavator ZG035U
  • Mini Excavator ZG035U
    •
    Specifications
    Model ZG035U
    Operating weight (Kg) 3,860
    Rated bucket capacity (m3) 0.12
    Overall length (mm) 4,853
    Overall width (mm) 1,800
    Overall height (mm) 2,575
    Standard track shoe width (mm) 300
    Travelling speed (Km/hr) 3.1/4.8
    Swing speed (rpm) 11-13
    Max. Gradeability (Degree) 35
    Maximum digging radius (mm) 5,557
    Maximum digging depth (mm) 3,170
    Maximum digging height (mm) 5,156
    Bucket digging force (kN) 32.67
    Arm digging force (kN) 25.78
    Engine model Yanmar 3TNV88F
    Rated power 18.2kW/2,200rpm
    Features
    • Mini Excavator ZG035U

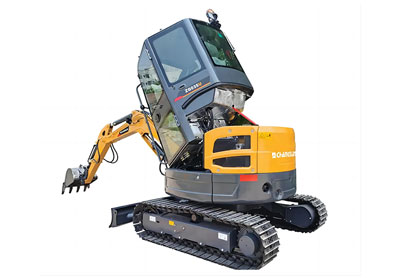

      Cab + large air conditioner for cooling and heating

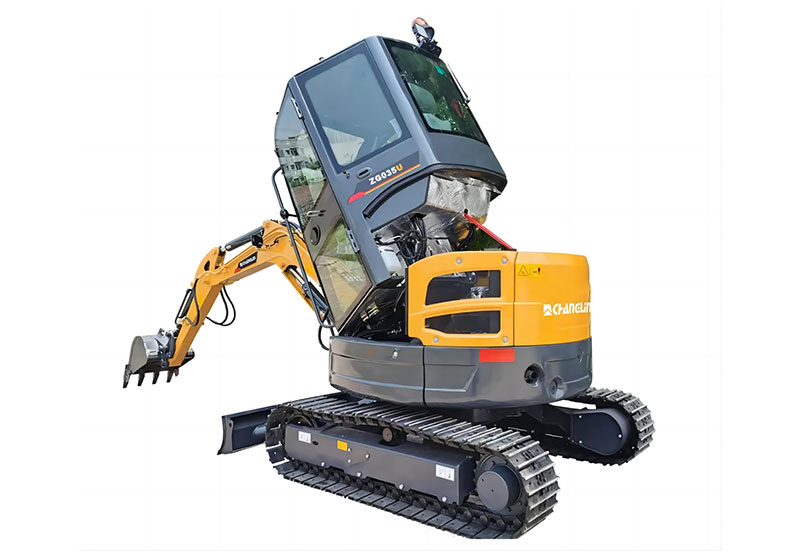

      This model is equipped with a reversible cab for easy maintenance.

    • Mini Excavator ZG035U

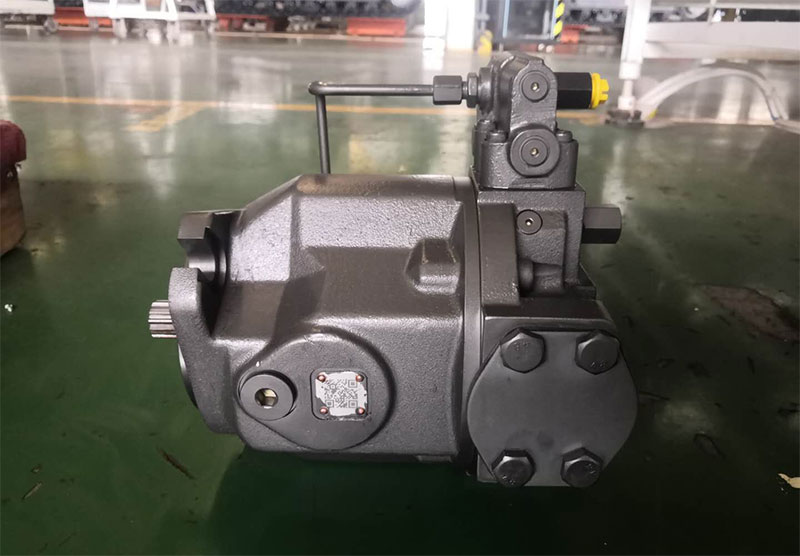

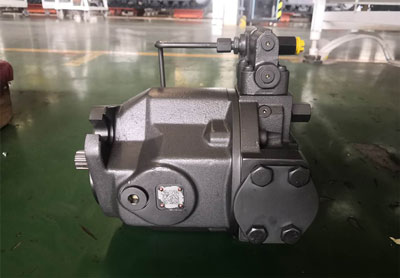

      Strong power

      The Yanmar imported high-power engine of the ZG020U mini excavator is a perfect match for its load-sensitive system. Its biggest feature is its coordinated movements, fast response, efficient operation, and energy-saving capabilities. Additionally, it meets the National 4, Euro V, and Tier4F emissions standards, making it an eco-friendly choice for construction sites.

    • Mini Excavator ZG035U

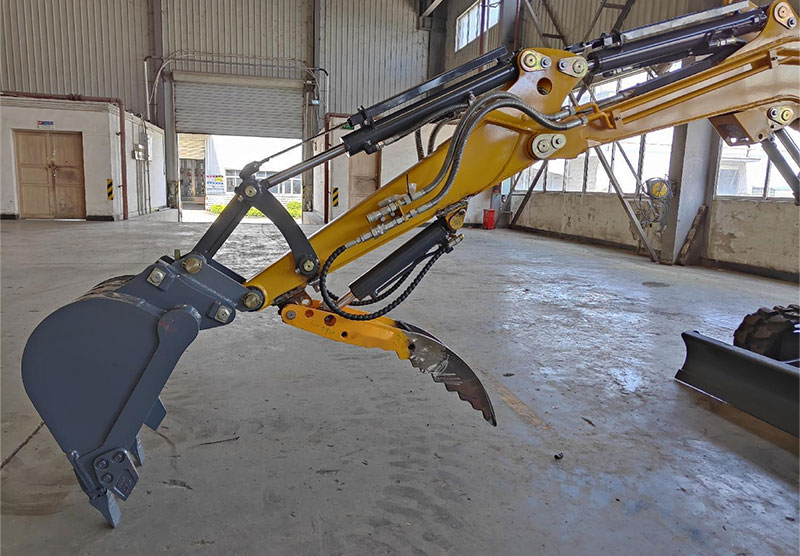

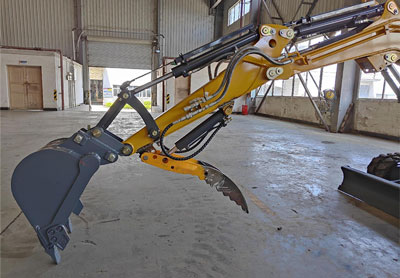

      Attachment customization

      Special customization

      Color customization
