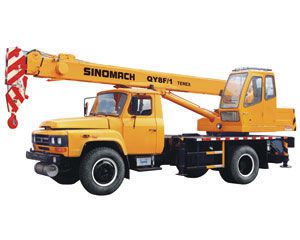

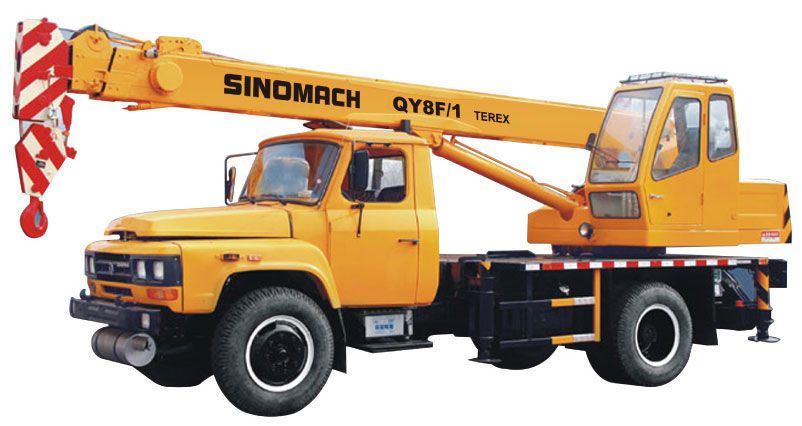

QY8F-1 Truck Crane

QY8F-1 Truck Crane

Main performance parameters
Model QY8F-1
Weights Gross vehicle weight 9,695Kg
Max. rated capacity for main hook 8t
Engine and drive system Engine Yuchai YC4E140-30
Rated power 105KW @ 2500rpm
Axle drive system 4×2
Torque Max. torque 500N.m@ 1400-1600 rpm
Max. load moment 235.2KN.m
Walking performance Max. grade ability 30°
Max. traveling speed 85km/h
Slewing speed 3rpm
Dimensions Overall(L×W×H) 8.44m×2.44m×3.08m
Outrigger Dimensions(L×T) 3.6m×4.0m
Boom Base boom length 6.8m
Fully extended boom length 16.5m
Fully extended boom maximum lift height 17.3m

We are a specialized truck crane manufacturer in China. At SINOMACH we also offer mechanical vibrating double drum road roller, crawler bulldozer, asphalt mixing plant, wheel loader, and much more.
