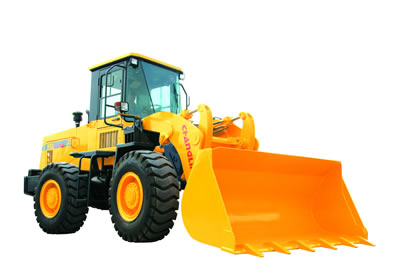

Wheel Loader 932

1. Equipped with reliable Chinese-branded engine
2. Three forward and three reverse gears
3. Hydraulic cylinder comes with combination seal for reliable leak-free performance

Technical Specification:
Model 932
Length×Width×Height(mm) 6720×2510×3095
Rated load(Kg) 3000
Rated bucket capacity(m3) 1.7
Operating weight(Kg) 9600
Diesel engine YITUO LR6M3 -22(LR6M3 -G66Q-u2)/YUCHAI
YC6B125-T20(B7635)
Rated output(KW) 92
Transmission case CHANGLIN
Gear positions 3 forward and 3 reverse gears
Max. traction KN) 86.7
Max. breakout force(KN) 88
Max. dump clearance(mm) 2820
Dump reach(mm) 900
Wheel base(mm) 2600
Total cycle time (s) 12.3
Changlin Construction Machinery (Engineering Vehicle/ construction equipment), High Quality!!
