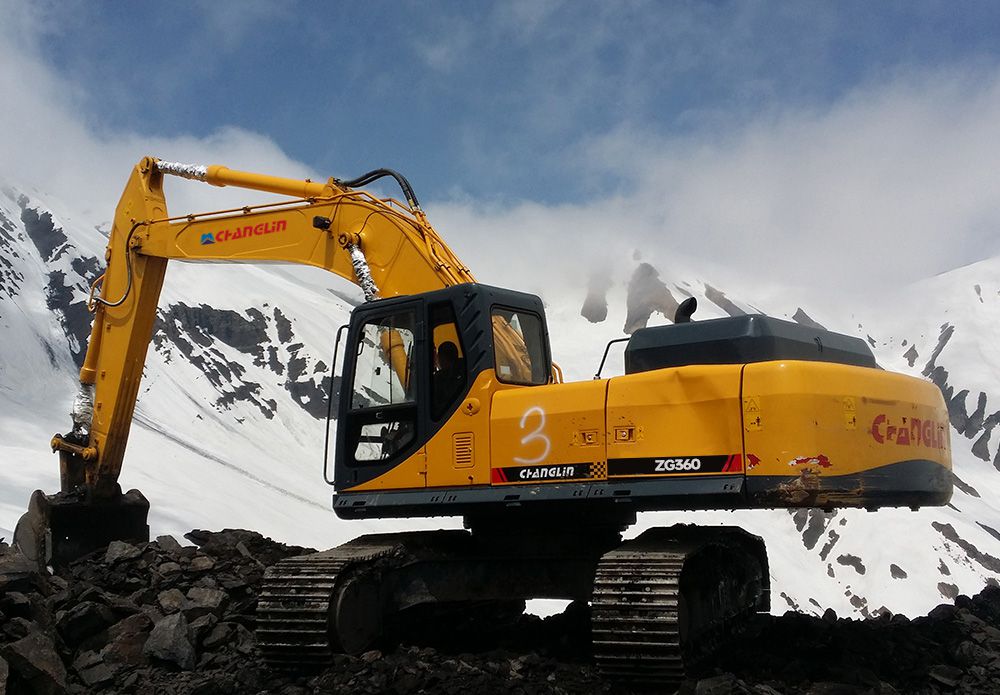

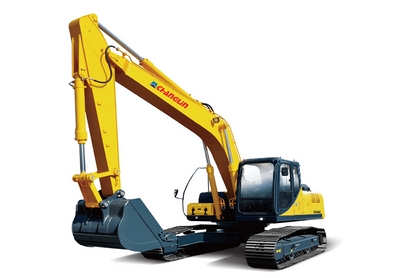

Crawler Excavator ZG360

Equipped with original Cummins engine, the ZG360 crawler excavator is featured by high power, low fuel consumption and better reliability.

  • Operating weight: 34100KG
  • Rated power: 241kW
  • Bucket capacity: 1.7m³
Inquiry
Video
Crawler Excavator ZG360
  • Crawler Excavator ZG360
  • Crawler Excavator ZG360
  • Crawler Excavator ZG360
  • Crawler Excavator ZG360
    • Specifications
    • Features
    • Videos
    • Request a Quote
    Specifications
    Model ZG360
    Length×Width×Height(mm) 11275×3280×3480
    Operating weight (Kg) 34100
    Rated bucket capacity(m3) 1.7
    Max.digging depth(mm) 6813
    Max.digging radius(mm) 10551
    Max.digging height(mm) 9763
    Max.dumping height(mm) 6782
    Bucket digging force(KN) 210
    Stick digging force(KN) 191
    Gradient capacity(%) 70
    Diesel engine Cummins 6BTAA8.3-C250
    Rated output(KW) 186
    Features
    • Crawler Excavator ZG360

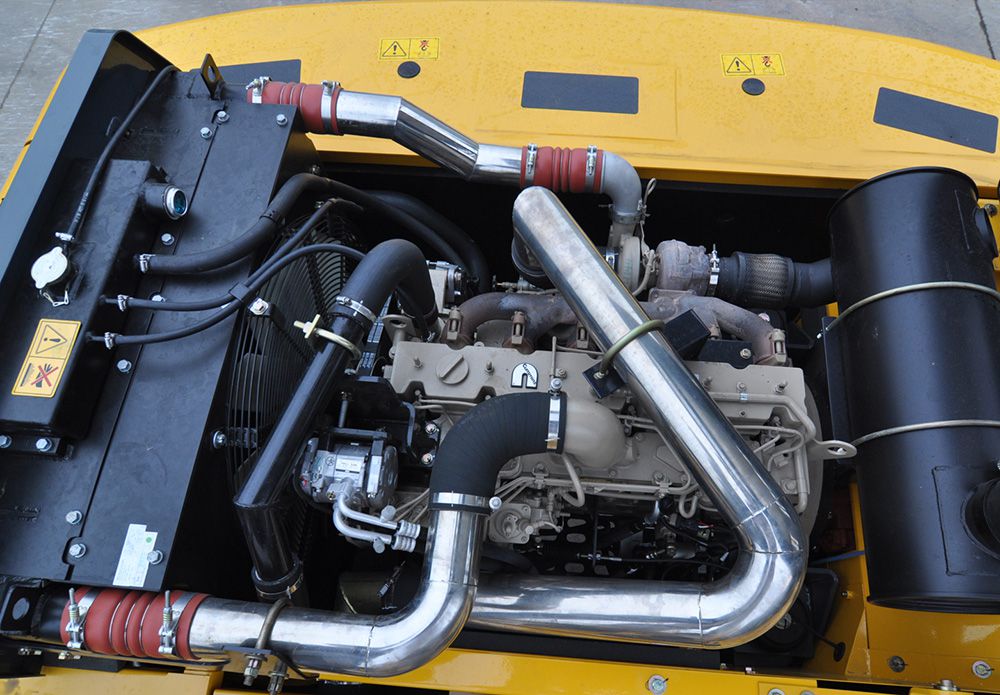

      The crawler excavator is equipped with original Cummins engine, featuring high power, low fuel consumption and better reliability.

    • Crawler Excavator ZG360

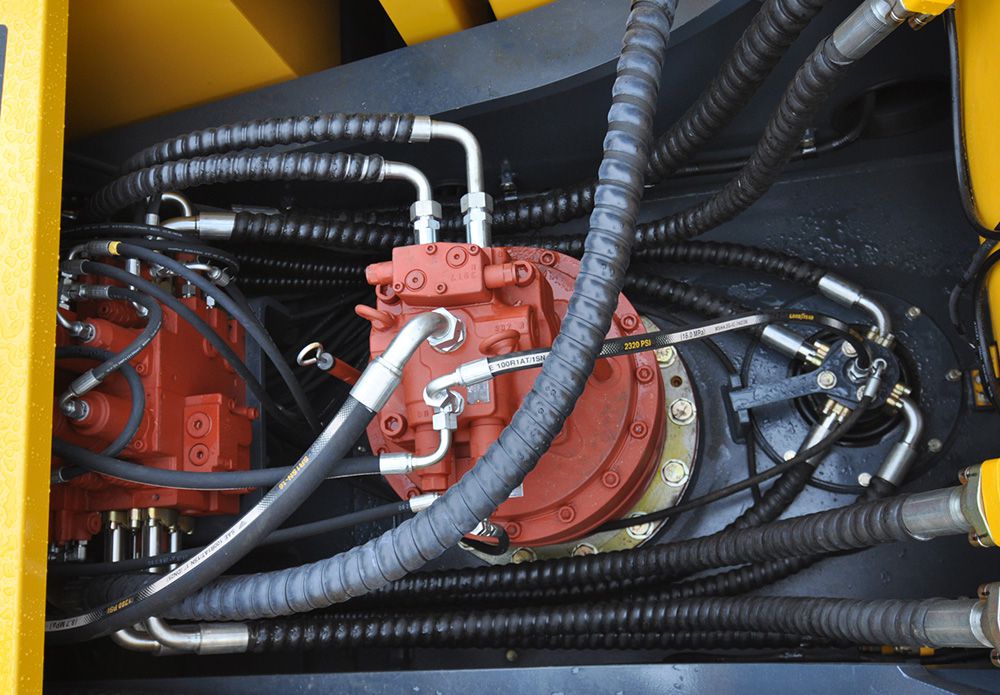

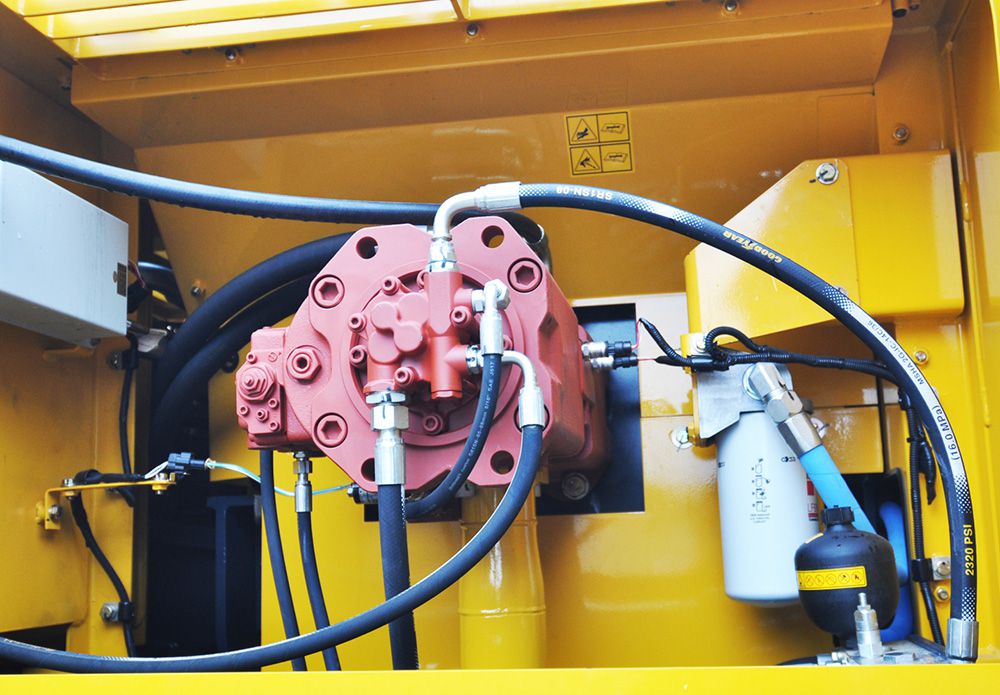

      The newly developed hydraulic system coupled with large displacement pump and high flow valve ensures large flow area, minimized pressure loss, reasonable flow distribution, better movement coordination and easy operation.

    • Crawler Excavator ZG360

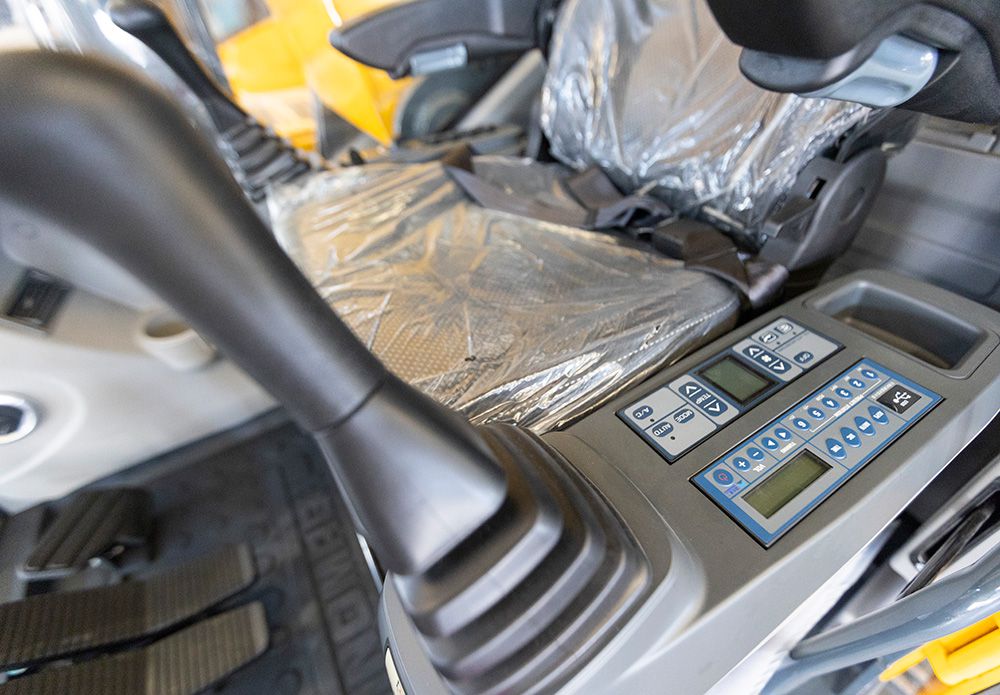

      The control system is newly developed to assure the full functionality of the entire excavator. It can intelligently adjust the hydraulic absorption power to accommodate the working conditions, and enable an optimized system matching.

    • Crawler Excavator ZG360

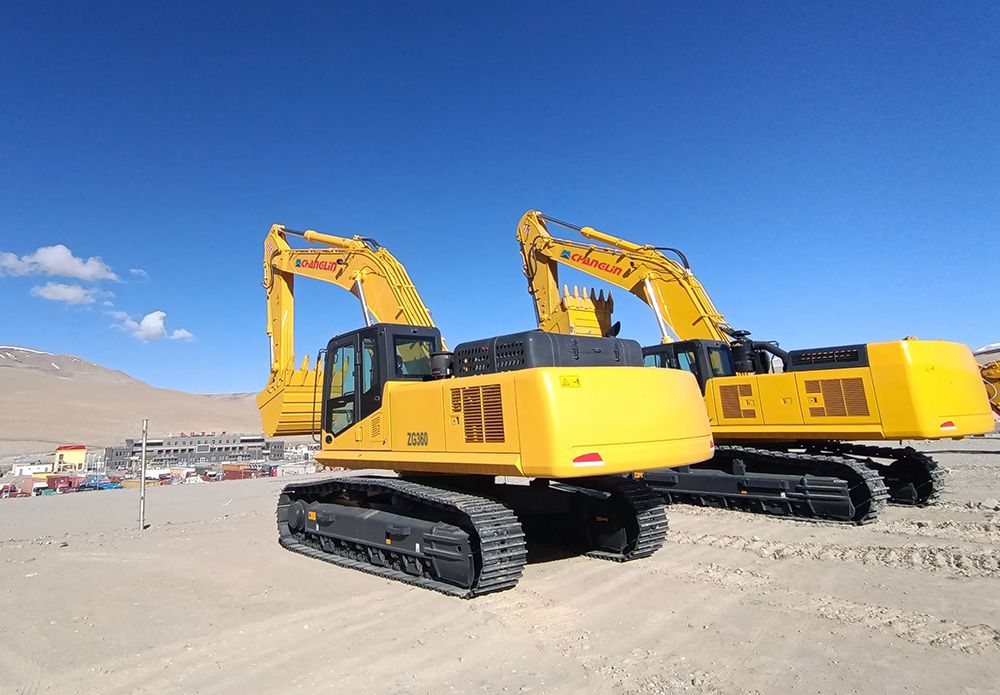

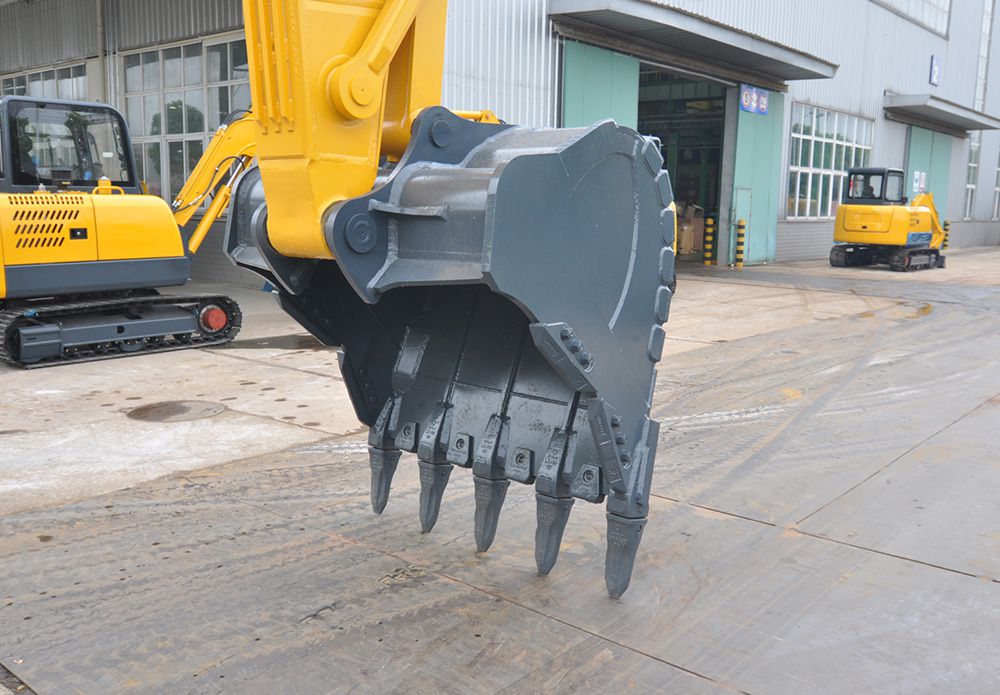

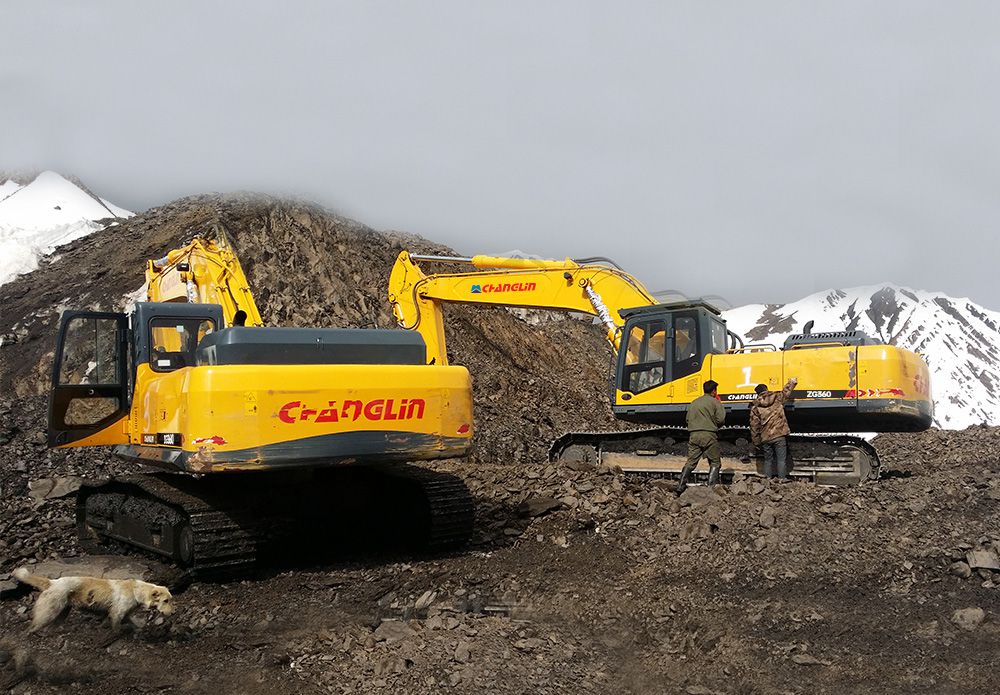

      The crawler excavator is configured with heavy-duty reinforced boom, short stick, bucket, widened heavy-duty chassis and optimized box-shaped structure, to adapt to various working environments even in extremely harsh working conditions.

    • Crawler Excavator ZG360

      The excavation operations will be accurately assessed and the hydraulic pressures associated with the boom and stick will be automatically reached, thereby providing the adequate digging force to deal with heavy loads while improving the work efficiency and ensuring the high reliability of the hydraulic system.

    • Crawler Excavator ZG360

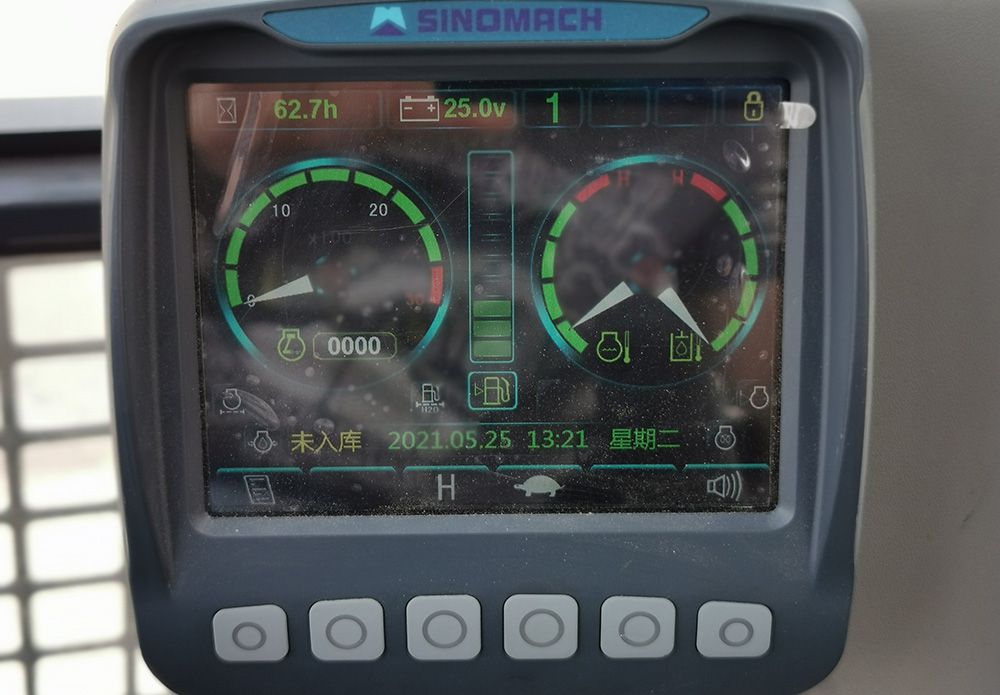

      The crawler excavator is equipped with a high-resolution glare-free color monitor, and an intelligent electronic monitoring system with functions of maintenance reminding, automatic fault diagnosis and alerting.

    • Crawler Excavator ZG360

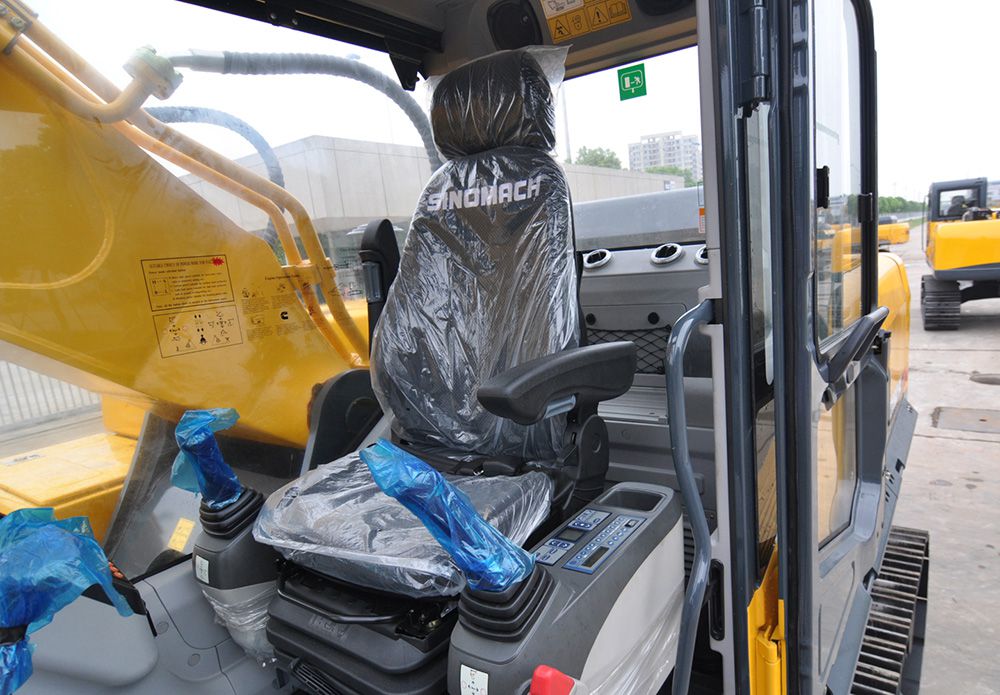

      The new cab is constructed with the latest ergonomic design, which provides the driver with a pleasant working environment thanks to the comfortable seat and standard air conditioner.
