Crawler Excavator ZG210

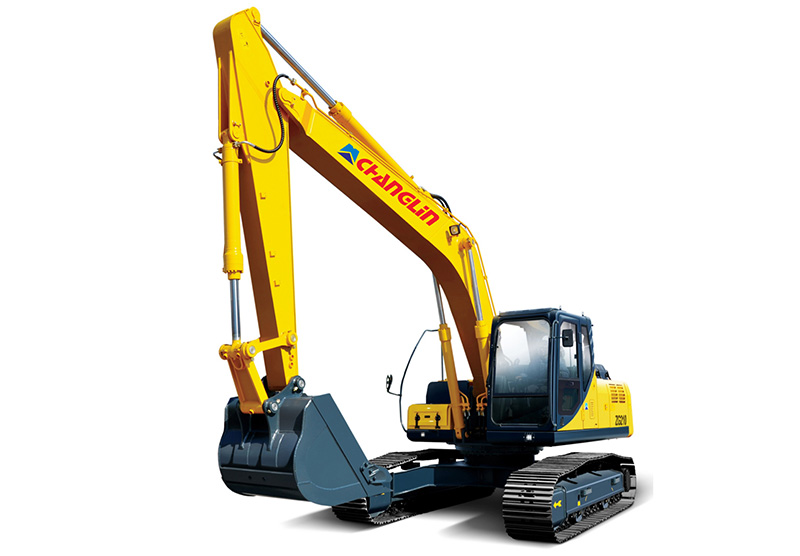

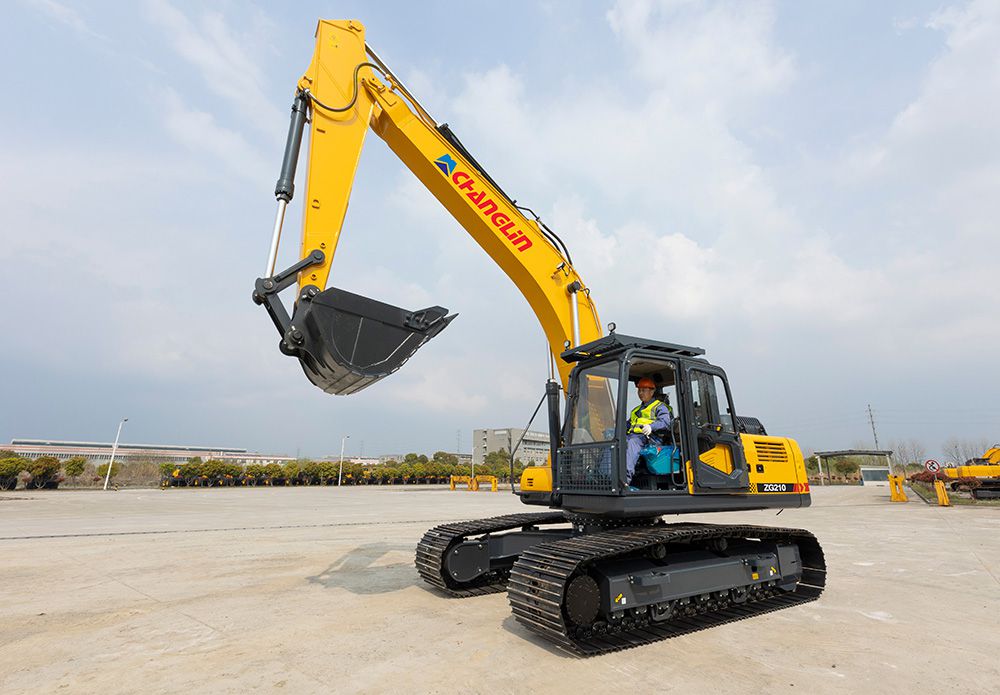

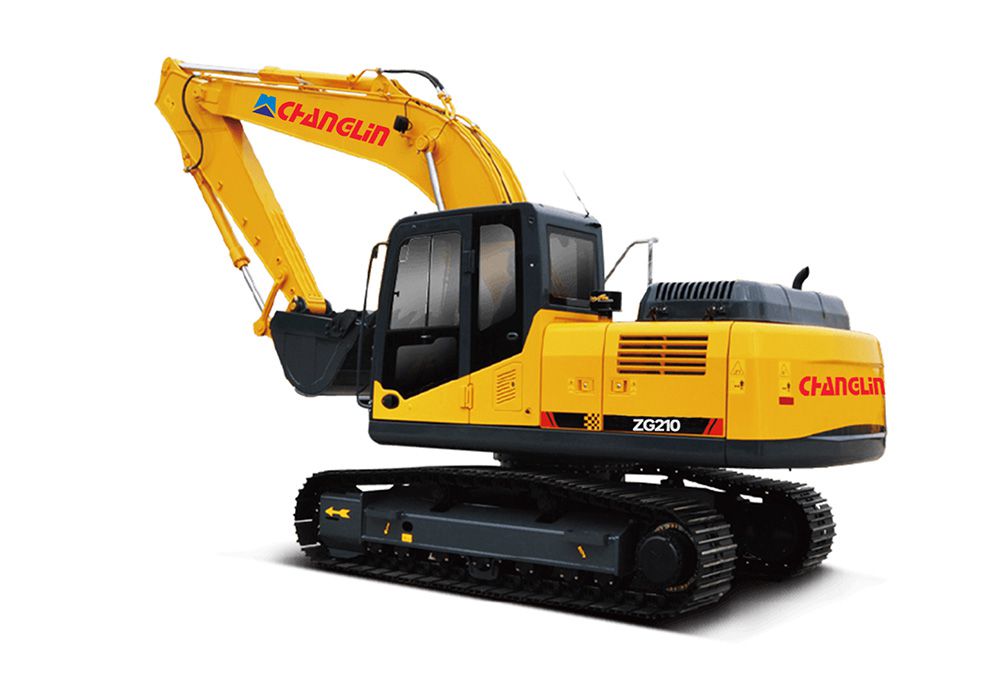

CHANGLIN ZG210 crawler excavator is equipped with Cummins engine which delivers strong power, high work efficiency, energy saving and high reliability. The advanced negative flow control hydraulic system enables comfortable operation, high work efficiency and outstanding cost effectiveness. There are four power modes to adapt to different jobsite conditions. The stepper motor ensures precise control of the throttle, thus significantly reducing fuel consumption. The reliability and stability of the crawler excavators are guaranteed thanks to the use of full three-dimensional modeling and finite element analysis technology.

Operating weight: 21000KG
Rated power: 112kW
Bucket capacity: 1.0m³

Inquiry

Video

Specifications

Model	ZG210
Length×Width×Height(mm)	9520×2800×3030
Operating weight (Kg)	21000
Rated bucket capacity(m³)	1.0
Max.digging depth(mm)	6690
Max.digging radius(mm)	9953
Max.digging height(mm)	9642
Max.dumping height(mm)	6813
Bucket digging force(KN)	137
Stick digging force(KN)	102
Gradient capacity(%)	70
Diesel engine	Cummins 6BTAA5.9-C150
Rated output(KW)	112

Features

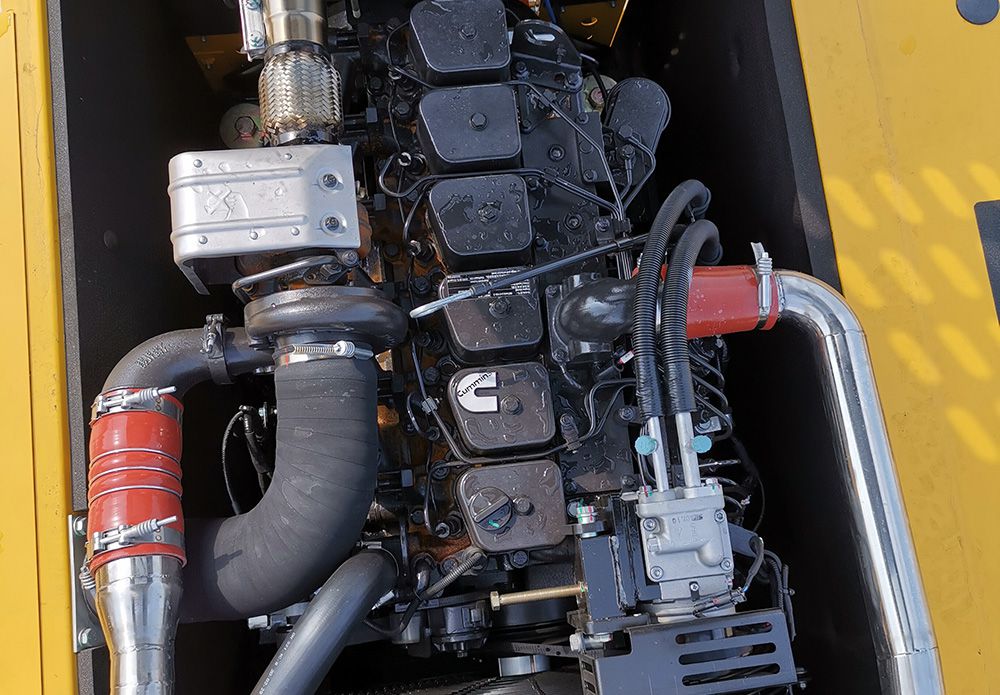

Cummins engine is able to withstand high loads and has high horsepower output, providing exceptional reliability and low fuel consumption while reducing the operation and maintenance costs.

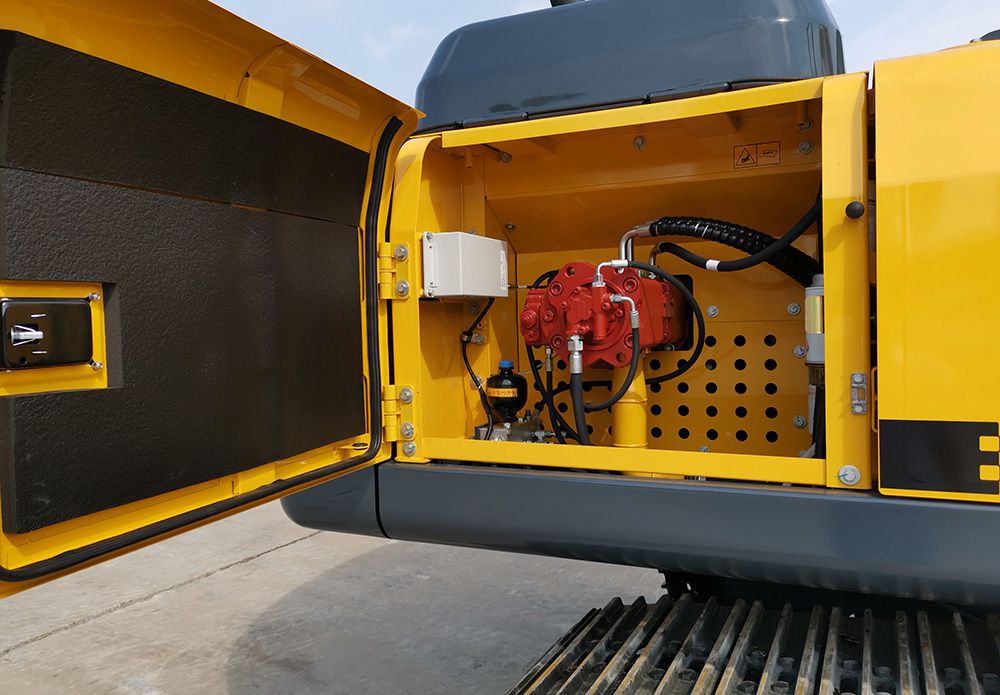

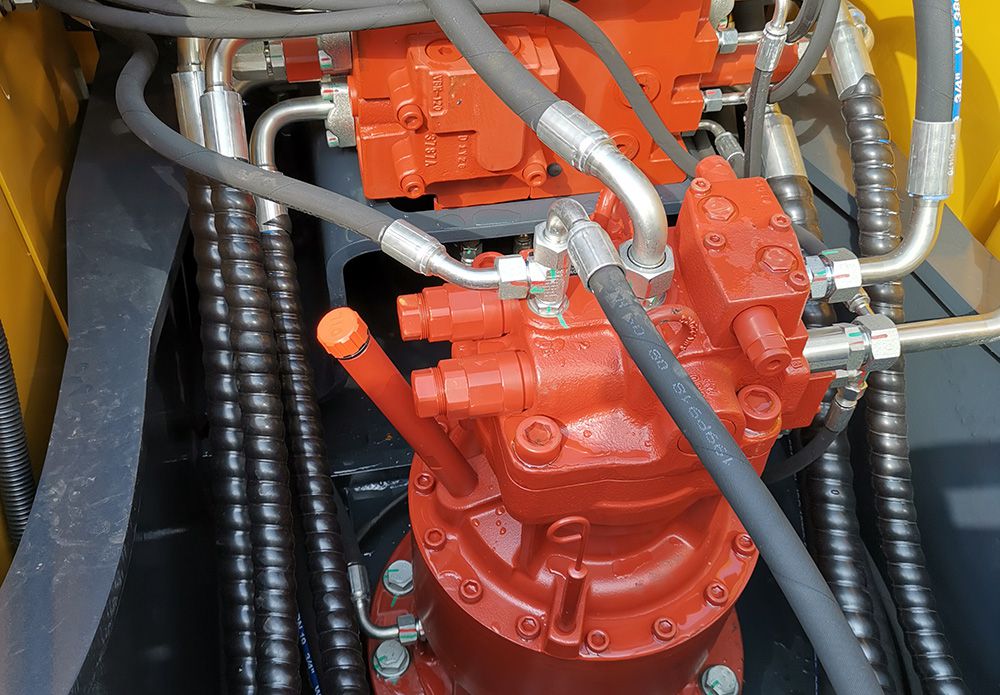

The advanced negative flow control hydraulic system is used for better system stability and reliability, faster response of compound control action and higher work efficiency.

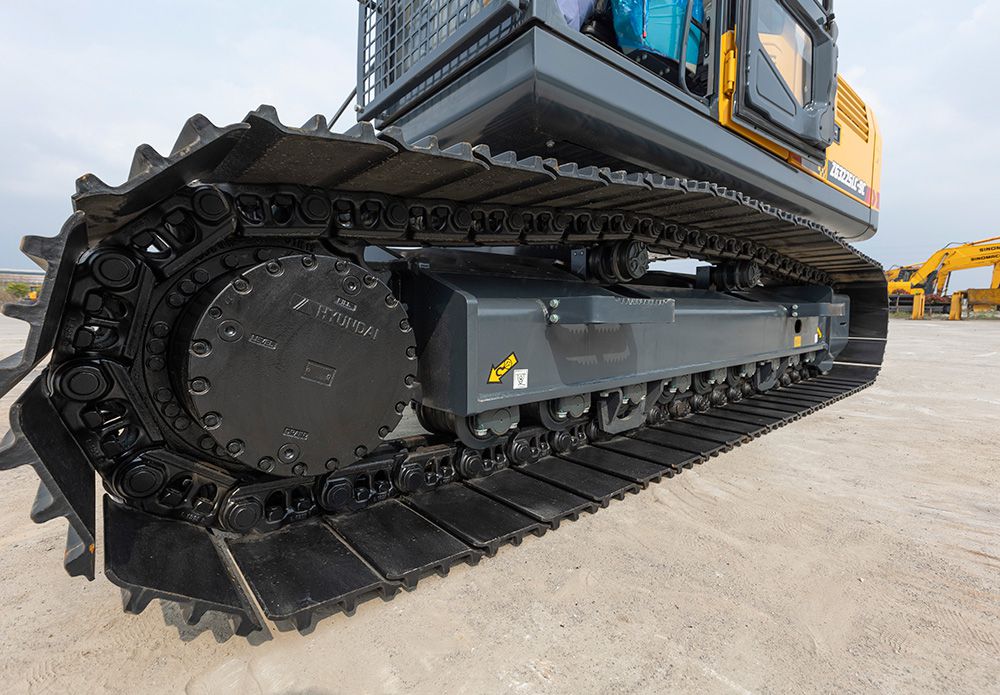

The undercarriage features high-strength reinforced box-type side beams, X-chassis frame and track rollers, allowing the crawler excavator to withstand high impact loads.
