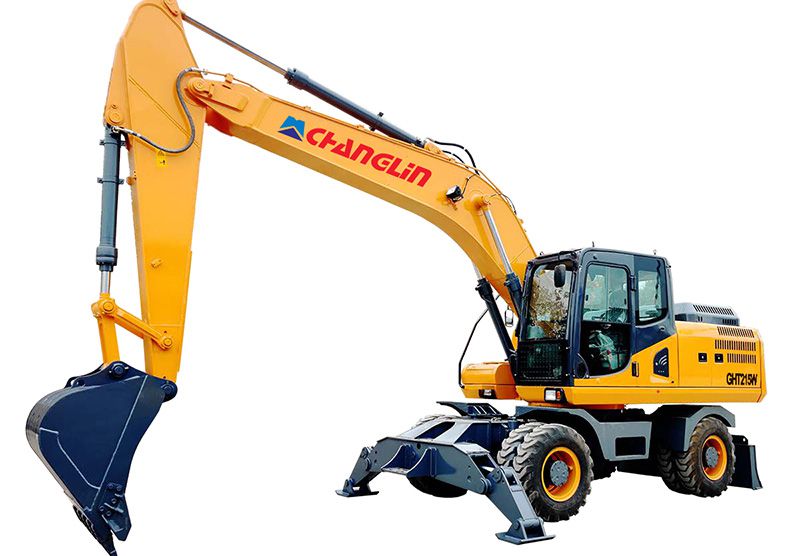

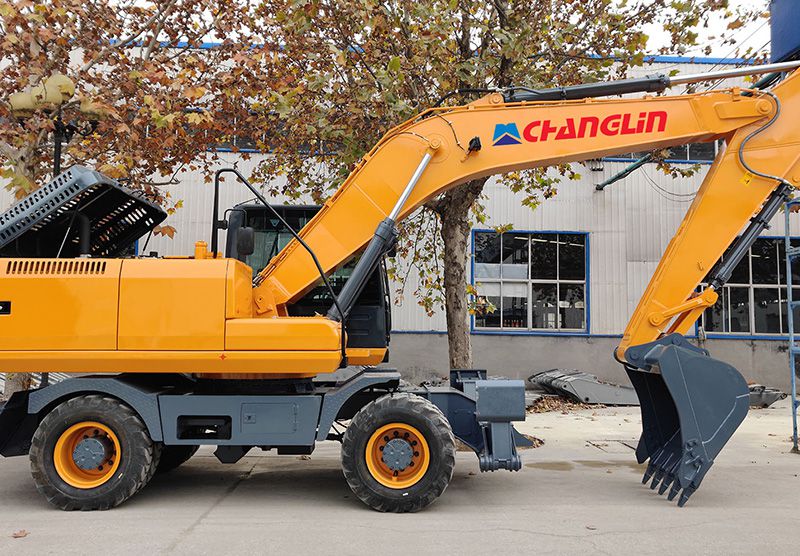

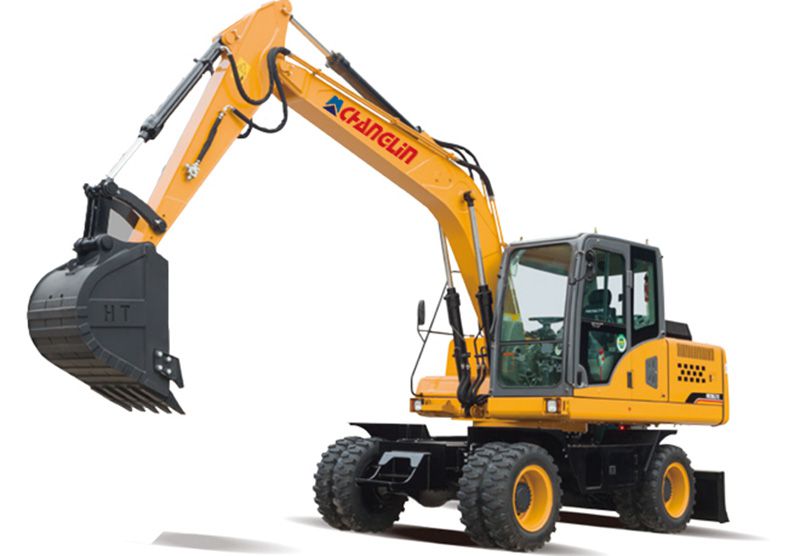

Wheeled Excavator GHT215W

GHT215W wheeled excavator is a new generation of fully hydraulic excavator independently developed by CHANGLIN. The engine used in this hydraulic wheeled excavator features high power and low fuel consumption, therefore providing strong digging force with optimum power reservation. The perfect matching between high-efficiency hydraulic system and axle enables the working mode and travelling mode to be freely switched. The hydraulic system of the wheeled excavator is compatible with imported hydraulic components, providing exceptional performance in terms of reliability, safety, environmental protection, convenience and cost effectiveness. CHANGLIN offers various configuration options to adapt to specific needs of customers in different countries and regions.

  • Operating weight: 21020KG
  • Rated power: 133kW
  • Bucket capacity: 0.9m³
Inquiry
Video
Wheeled Excavator GHT215W
  • Wheeled Excavator GHT215W
  • Wheeled Excavator GHT215W
  • Wheeled Excavator GHT215W
    • Specifications
    • Features
    • Request a Quote
    Specifications
    Operating weight (Kg) 21020
    Rated bucket capacity (m³) 0.9
    Overall length (mm) 9700
    Overall width (Standard track shoe) (mm) 2780
    Overall height (mm) 3700
    Standard track shoe width (mm)
    Travelling speed (H/L) (Km/hr) 30
    Swing speed (rpm) 13.5
    Gradeability (Degree (%)) 0.6
    Ground pressure (Kgf/cm²)
    Maximum digging radius (mm) 10050
    Maximum digging depth (mm) 6437
    Maximum digging height (mm) 11000
    Bucket digging force (kN) 152
    Stick digging force (kN) 119
    Engine model YUCHAI YC6A190Z-T20
    Engine type 6-cylinder in-line, four-stroke turbocharger
    Rated power 140kW@2300rpm
    Features
    • Wheeled Excavator GHT215W

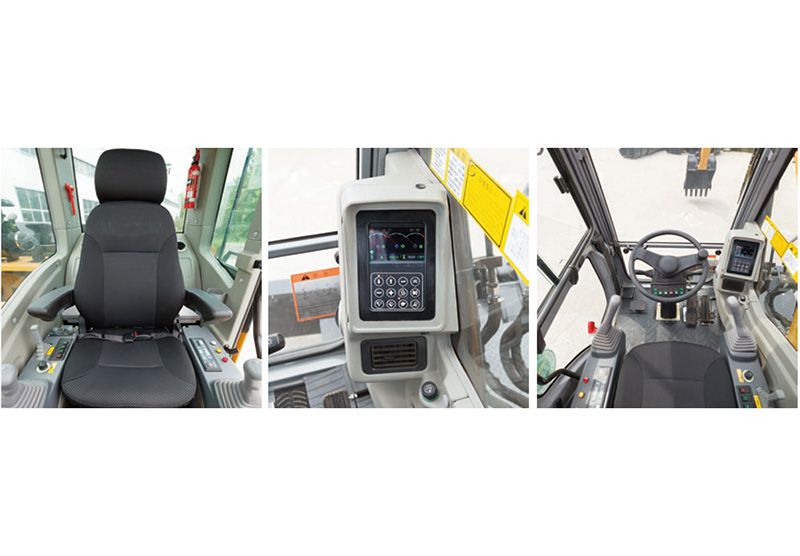

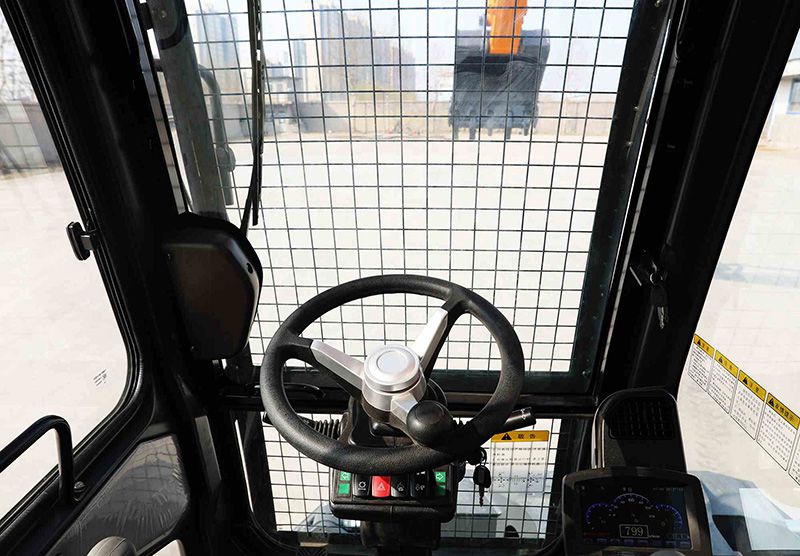

      The comfortable and spacious cab provides perfect all-round visibility.

    • Wheeled Excavator GHT215W

      The ergonomic design of excavator seat ensures optimum comfort for operator. The intelligent computer-aided control system is used for analyzing and storing excavator parameters, as well as providing timely warning.

    • Wheeled Excavator GHT215W

      The wheeled excavator is equipped with Cummins engine that adopts newly developed fuel-saving technology to deliver strong power.

    • Wheeled Excavator GHT215W

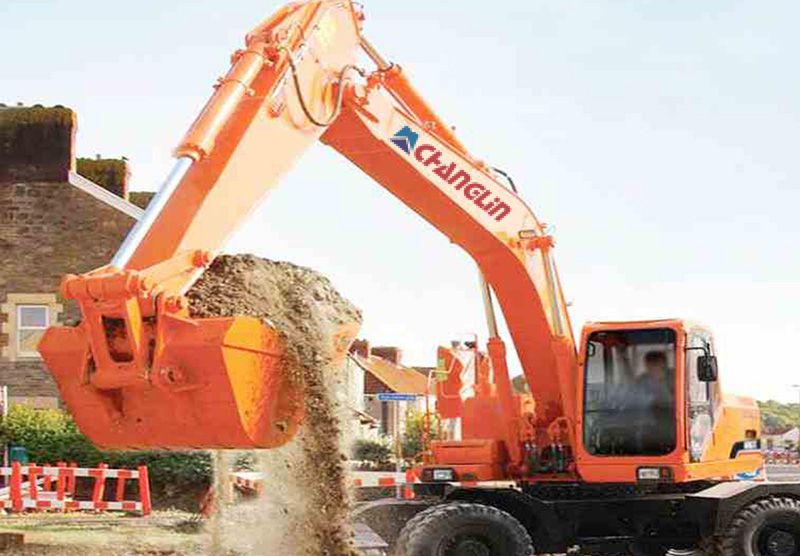

      The main hydraulic system and the engine are perfectly matched to provide improved work efficiency with reduced fuel consumption.

    • Wheeled Excavator GHT215W

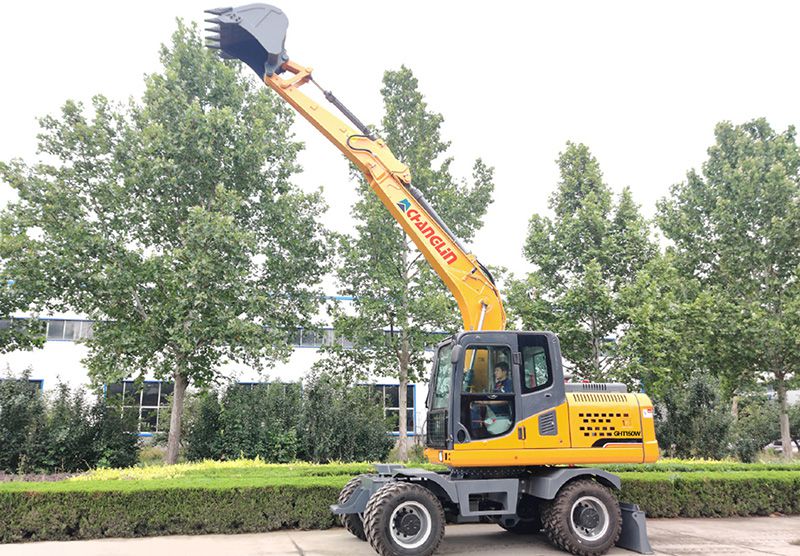

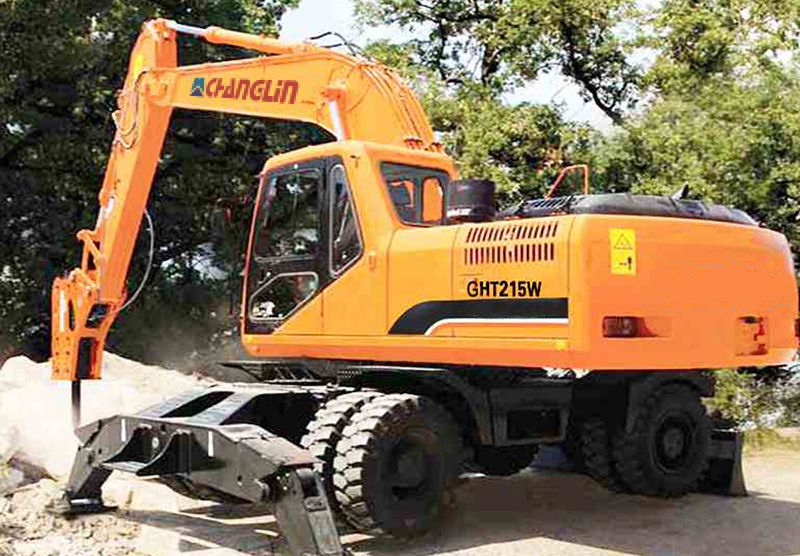

      High driving force gives the wheeled excavator the flexibility and ability to get out of trouble while delivering unbeatable off-road performance.

    • Wheeled Excavator GHT215W

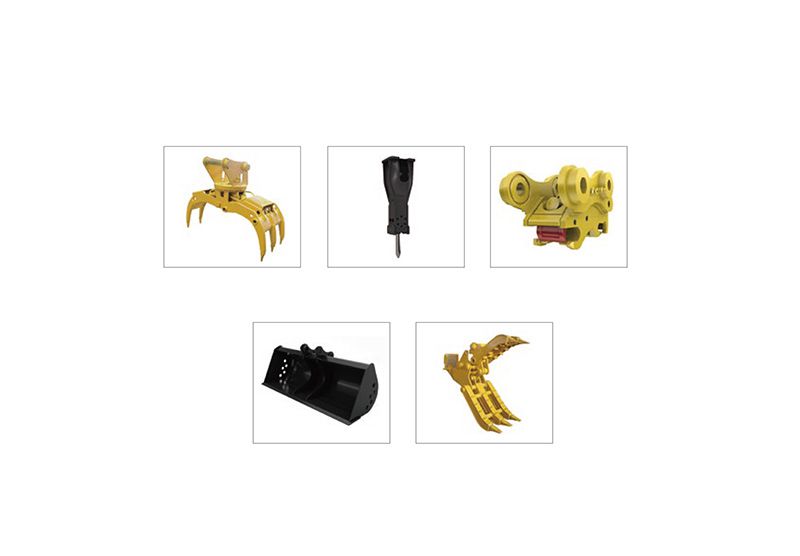

      Various attachments are available to meet various application needs.
