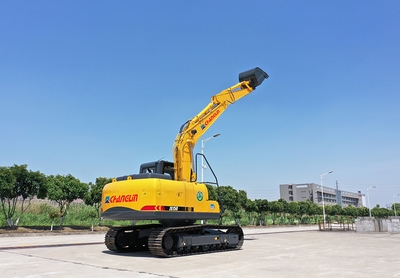

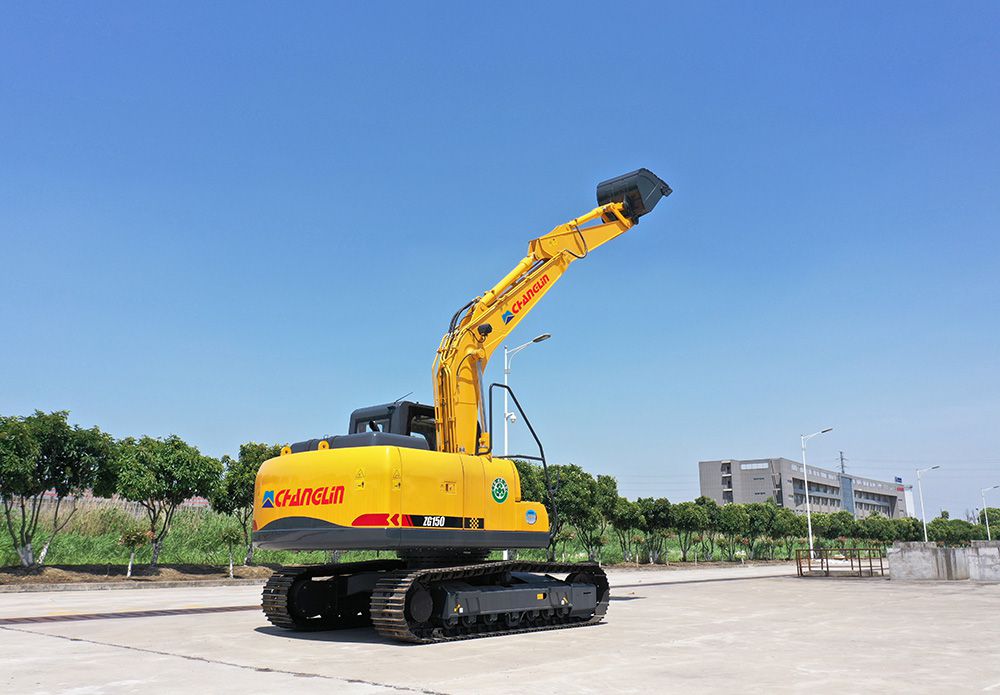

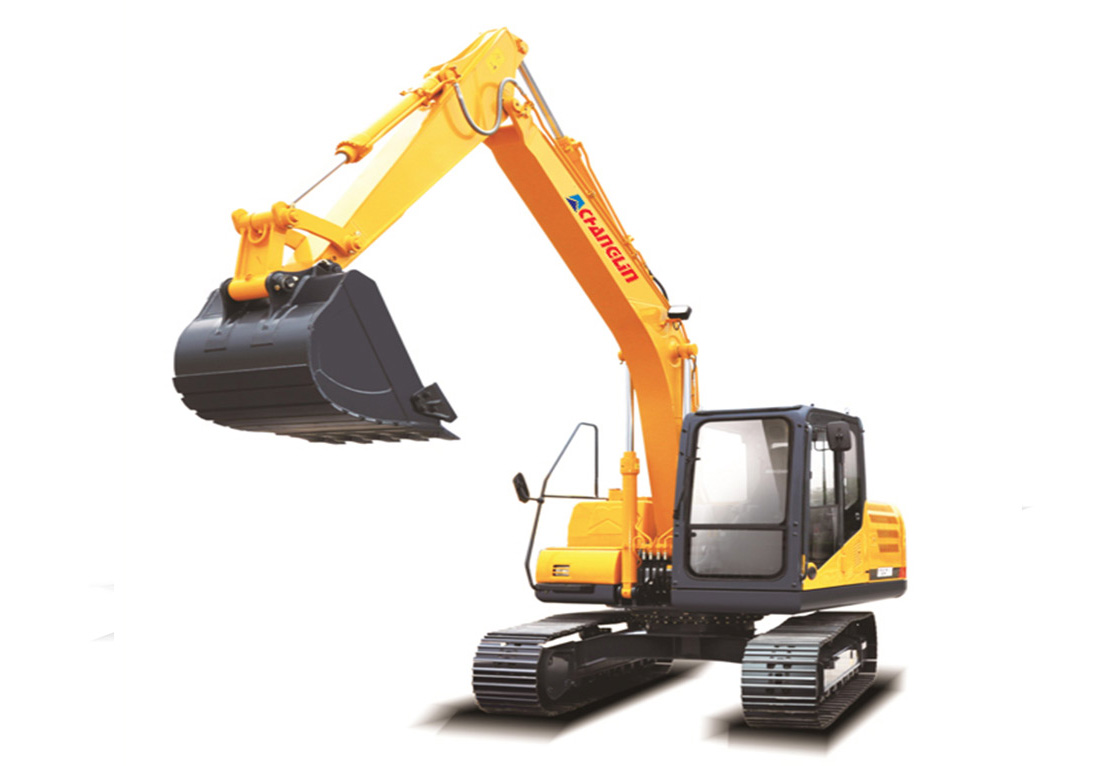

Crawler Excavator ZG150

The ZG150 crawler excavator adopts stationary Cummins EFI engine that complies III-stage emission regulations, providing strong power, exceptional durability and improved energy effectiveness. The advanced negative flow control hydraulic system enables comfortable operation, high work efficiency and outstanding cost effectiveness.

  • Operating weight: 13890KG
  • Rated power: 86kW
  • Bucket capacity: 0.6m³
Inquiry
Video
Crawler Excavator ZG150
  • Specifications
  • Features
  • Videos
  • Request a Quote
Specifications
Model ZG150
Length×Width×Height(mm) 7762×2510×2983
Operating weight (Kg) 13890
Rated bucket capacity(m3) 0.6
Max.digging depth(mm) 5491
Max.digging radius(mm) 8335
Max.digging height(mm) 8679
Max.dumping height(mm) 6174
Bucket digging force(KN) 100
Stick digging force(KN) 68
Gradient capacity(%) 70
Diesel engine Cummins QSF3.8-C115
Rated output(KW) 86
Features
  • Crawler Excavator ZG150

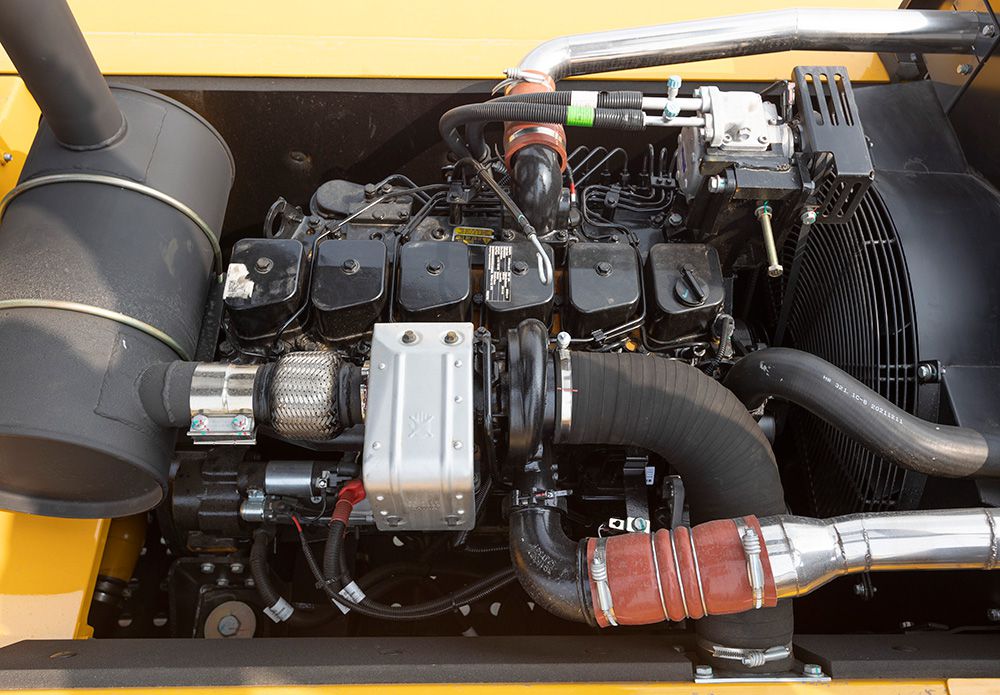

    The engine used in the crawler excavator is a new generation of high-power EFI engines from Cummins, featuring strong power, low fuel consumption and high reliability.

  • Crawler Excavator ZG150

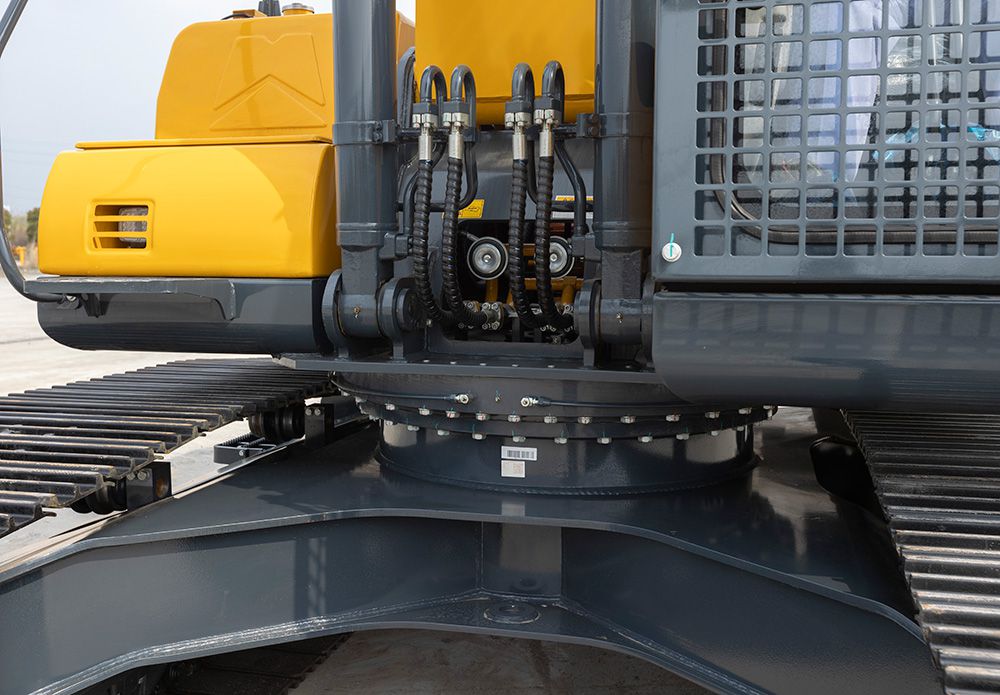

    The newly developed hydraulic system coupled with large displacement pump and high flow valve ensures large flow area, minimized pressure loss, reasonable flow distribution, better movement coordination and easy operation.

  • Crawler Excavator ZG150

    The hydraulic cylinders are of large diameter and all the key hinge points are optimally arranged to enhance the digging force of the crawler excavator. The automatic supercharging function is available to enable the digging force to be automatically increased as the load increases.

  • Crawler Excavator ZG150

    The control system is newly developed to assure the full functionality of the entire excavator. It can intelligently adjust the hydraulic absorption power to accommodate the working conditions, and enable an optimized system matching.

  • Crawler Excavator ZG150

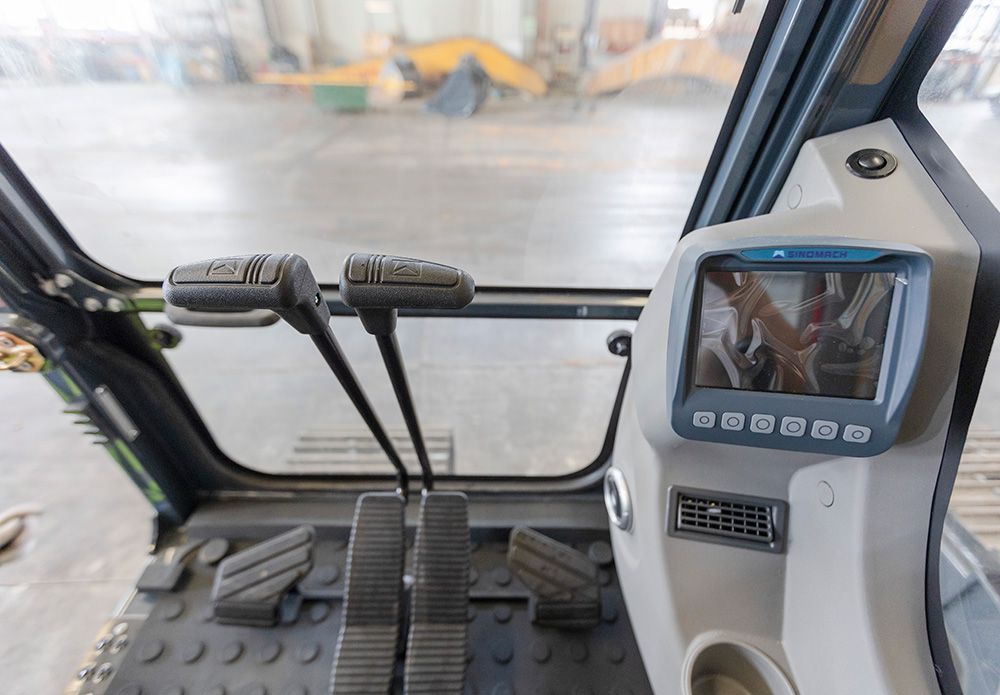

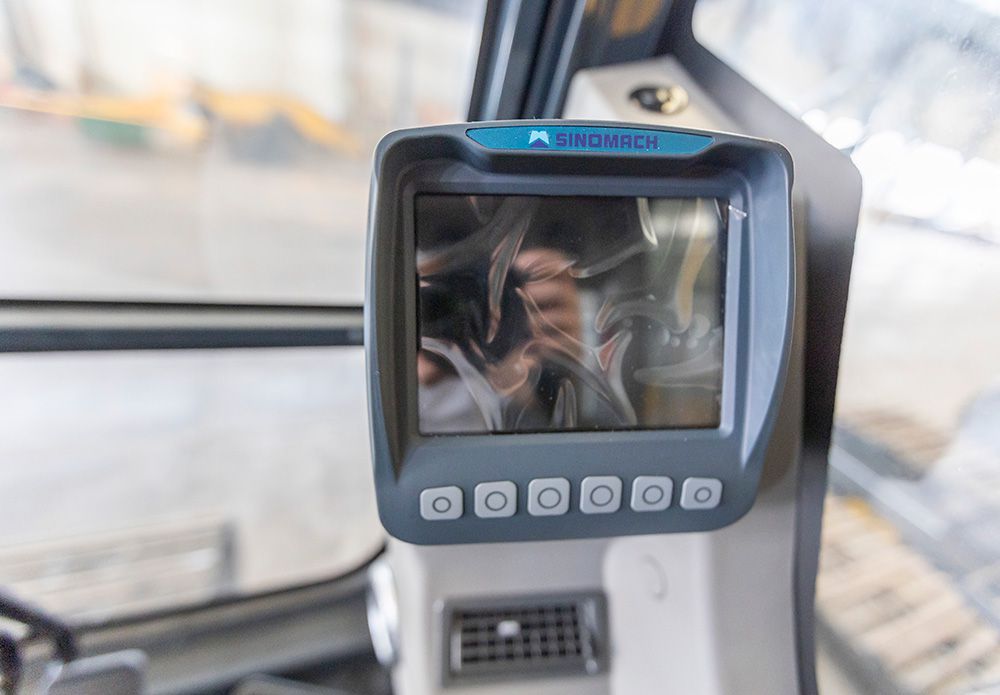

    The crawler excavator is equipped with a 5.7-inch glare-free color monitor featuring high-resolution and high-brightness, and an intelligent electronic monitoring system with functions of maintenance reminding, automatic fault diagnosis and alerting.

  • Crawler Excavator ZG150

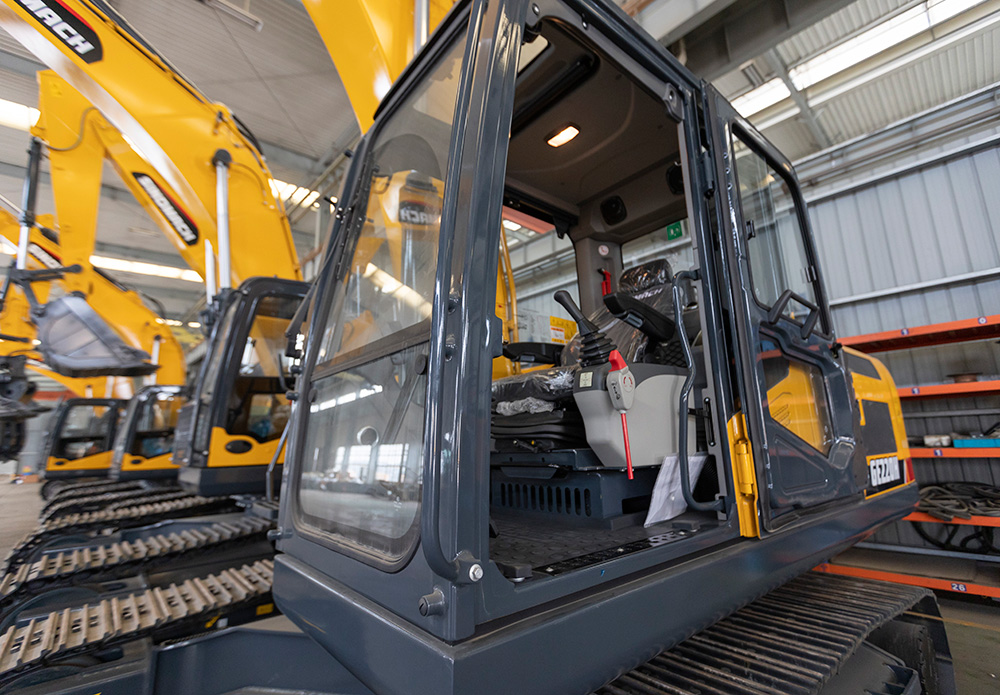

    The new cab on the crawler excavator is safe and reliable, and provided with automatic air conditioner for operator's comfort.
