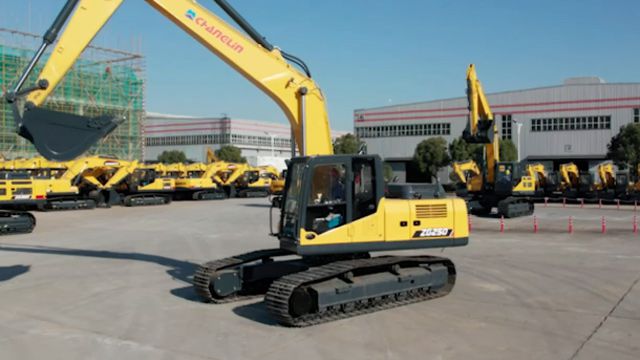

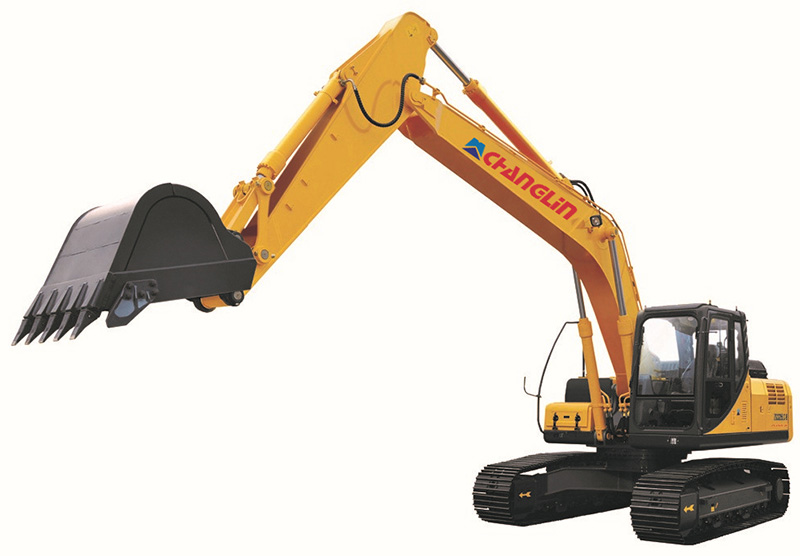

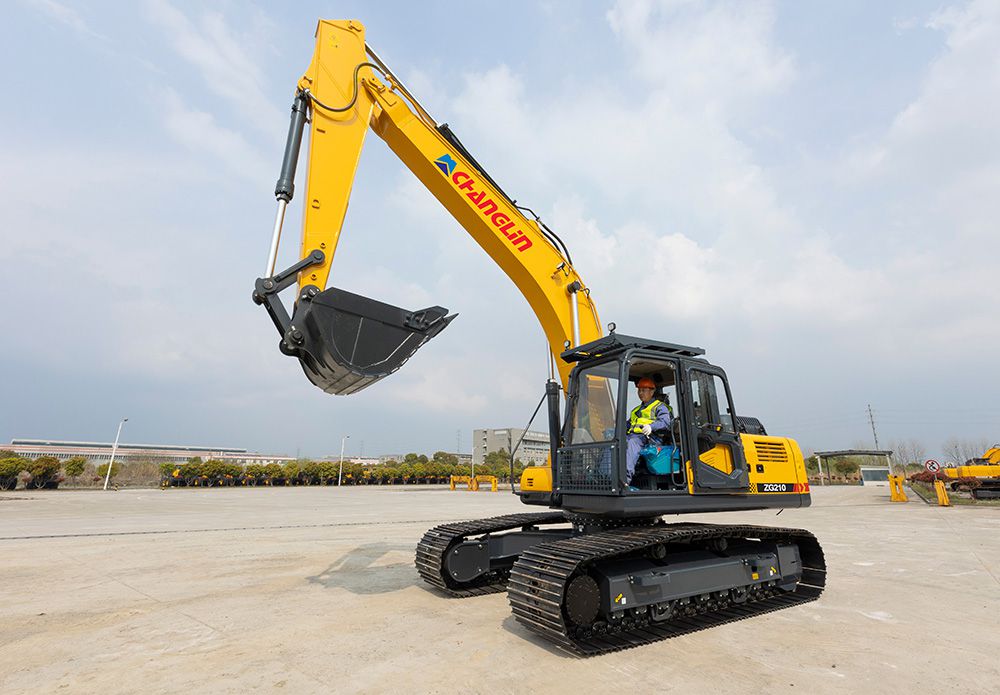

Crawler Excavator ZG250

The ZG250 crawler excavator is powerful, energy efficient, reliable and durable, and it adopts negative flow control hydraulic system.

  • Operating weight: 25000KG
  • Rated power: 133kW
  • Bucket capacity: 1.2m³
Inquiry
Video
Crawler Excavator ZG250
  • Crawler Excavator ZG250
  • Crawler Excavator ZG250
  • Crawler Excavator ZG250
  • Crawler Excavator ZG250
  • Crawler Excavator ZG250
    • Specifications
    • Features
    • Videos
    • Request a Quote
    Specifications
    Model ZG250
    Length×Width×Height(mm) 9840×3180×3180
    Operating weight (Kg) 25000
    Rated bucket capacity(m³) 1.2
    Max.digging depth(mm) 6995
    Max.digging radius(mm) 10258
    Max.digging height(mm) 9612
    Max.dumping height(mm) 6690
    Bucket digging force(KN) 162
    Stick digging force(KN) 123
    Gradient capacity(%) 70
    Diesel engine Cummins 6BTAA5.9-C178
    Rated output(KW) 133
    Features
    • Crawler Excavator ZG220

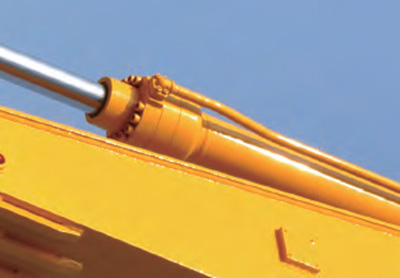

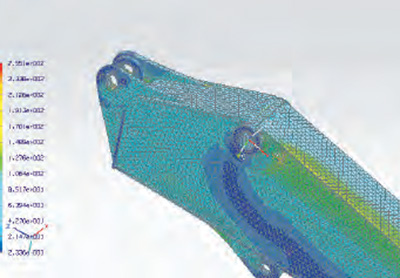

      The finite element analysis (FEA) of excavator boom and stick is performed for prolonged lifespan.

    • Crawler Excavator ZG220

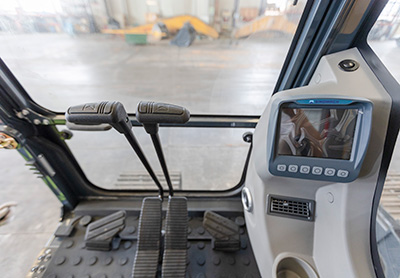

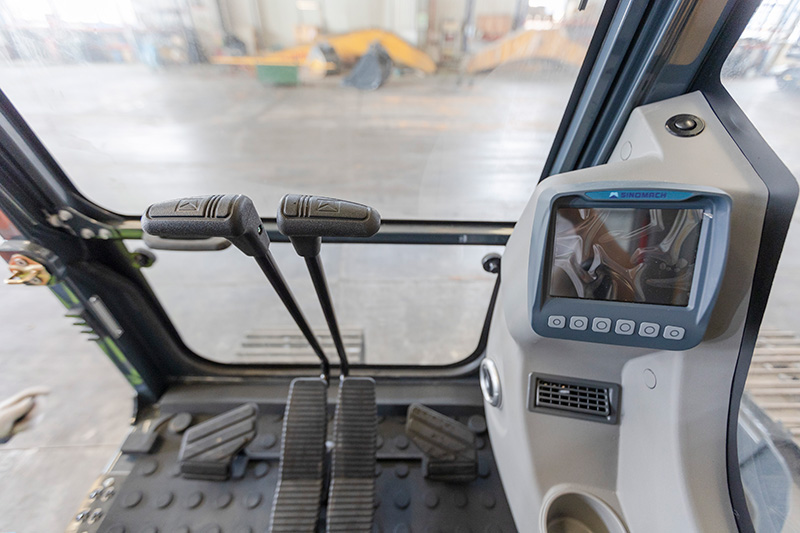

      The sensitive joystick allows for precise control and greater responsiveness.

    • Crawler Excavator ZG220

      The exclusive cab structure provides more foot space.

    • Crawler Excavator ZG220

      The strengthened box type structure is fully welded using low stress high tensile steel plate.

    • Crawler Excavator ZG220

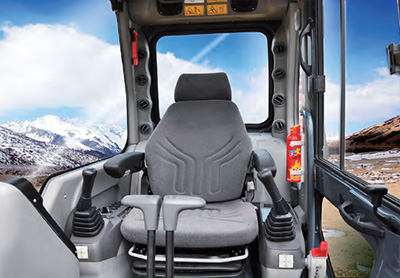

      The new safe and reliable cab is utilized in the crawler excavator, it features an injection-molded interior and an automatic air conditioner for operator's comfort.

    • Crawler Excavator ZG220

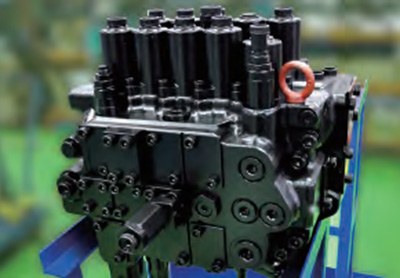

      Parker valves with closed center design are utilized in the crawler excavator for easy maintenance.

    • Crawler Excavator ZG220

      With the addition of a first-stage oil-water separator, the precision reaches 10 microns.

    • Crawler Excavator ZG220

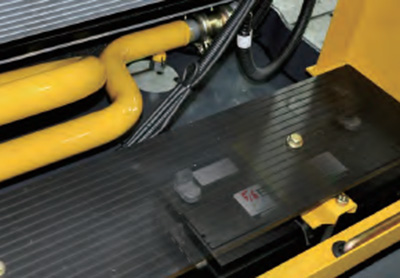

      The battery protection plate is installed to keep rainwater out and prolong the service life of the battery.

    • Crawler Excavator ZG220

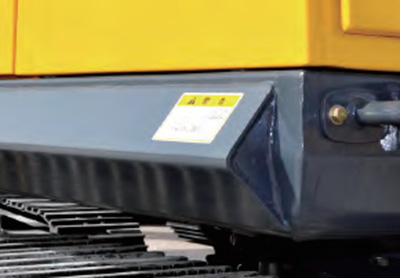

      The excavator is strengthened by the addition of anti-collision beams, making the operation safer.

    • Crawler Excavator ZG220

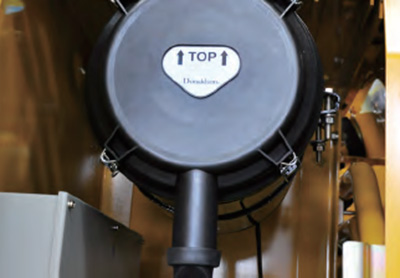

      The plug-in type air filter element is from world's top brand, which can be easily replaced with 500-hour maintenance intervals.

    • Crawler Excavator ZG220

      Fuel injection is guaranteed by a full-flow oil filter, which reduces the potential of unwanted breakdowns, the service intervals can be extended up to 500 hours.
