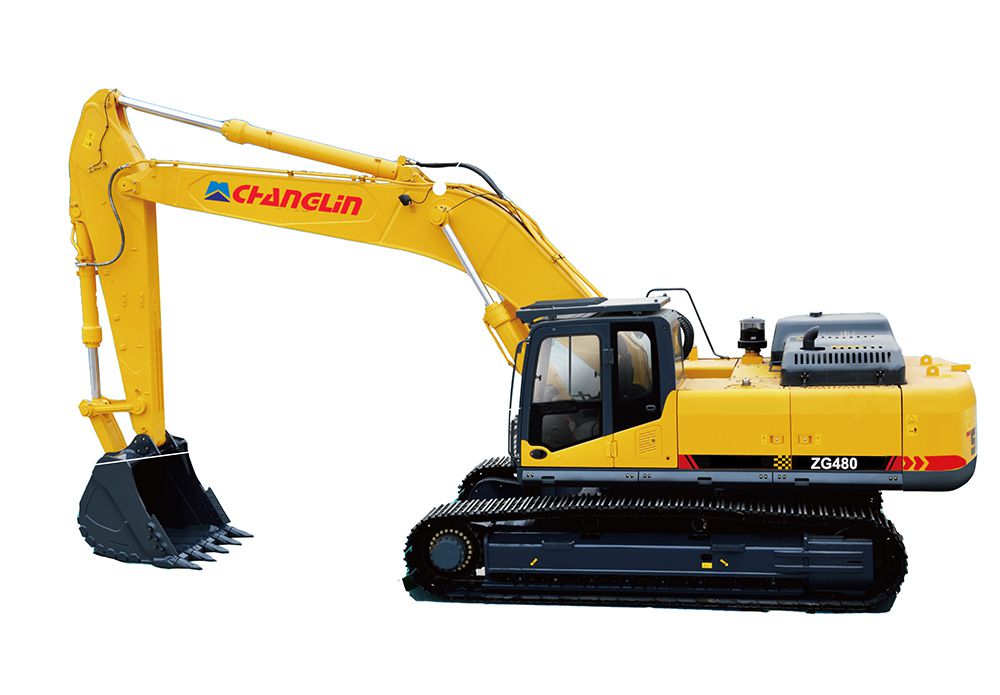

Crawler Excavator ZG480

The ZG480 crawler excavator is configured with heavy-duty reinforced boom, short stick, bucket, widened heavy-duty chassis and optimized box-shaped structure, to accommodate various working environments, even in extremely harsh working conditions.

Operating weight: 47300KG
Rated power: 280kW
Bucket capacity: 2.2m³

Inquiry

Video

Specifications

Model	ZG480
Length×Width×Height(mm)	12040×3340×3660
Operating weight (Kg)	48000
Rated bucket capacity(m³)	2.2
Max.digging depth(mm)	7862
Max.digging radius(mm)	12027
Max.digging height(mm)	10897
Max.dumping height(mm)	7897
Bucket digging force(KN)	290
Stick digging force(KN)	255
Gradient capacity(%)	70
Diesel engine	Cummins QSM11-C375
Rated output(KW)	280

Features

The exclusive cab structure provides more foot space.
GRAMMER adjustable suspension seat is used in the excavator to adapt to uneven terrains.
The excavator cab is equipped with an openable roof hatch.
The inner surface of the hydraulic cylinder is treated through tumble finishing process to improve the surface roughness and hardness, therefore resulting in a greater wear resistance.
The piston rod is chrome and nickel-plated to prevent it get rusted while improving the abrasion resistance.
The excavator bucket adopts thickened steel plate, and the bucket teeth are strengthened and lengthened for greater wear resistance.
The strengthened box type structure is fully welded using low stress high tensile steel plate.
The high strength guard boards are installed as standard to protect the excavator components.
