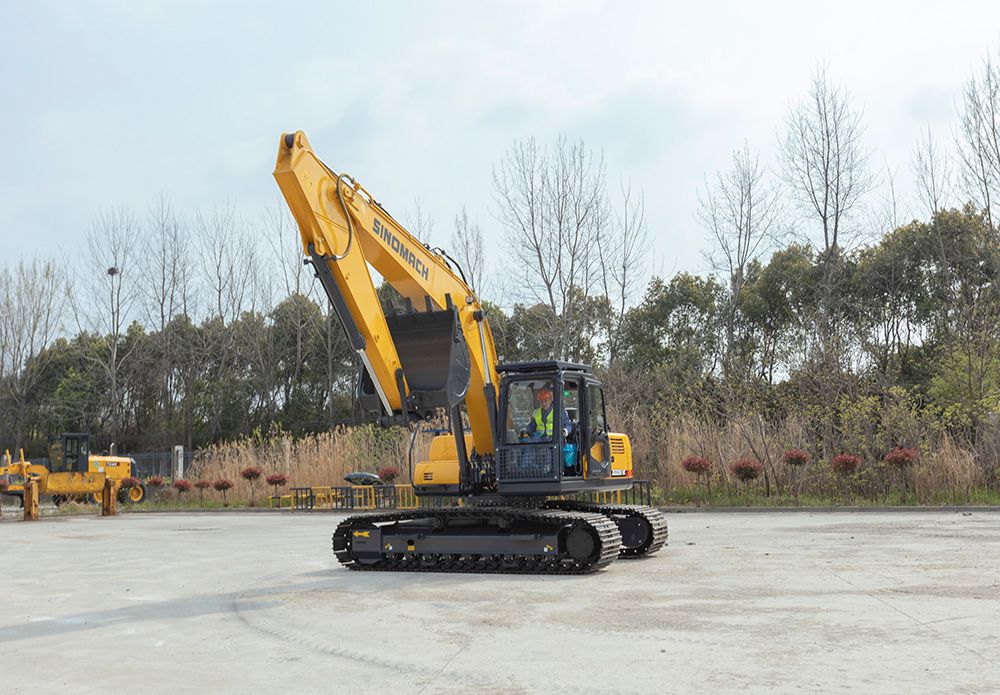

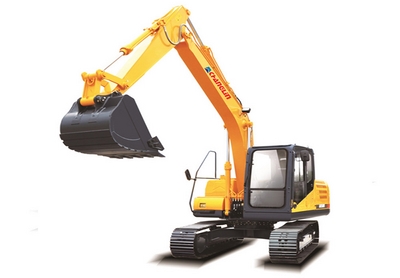

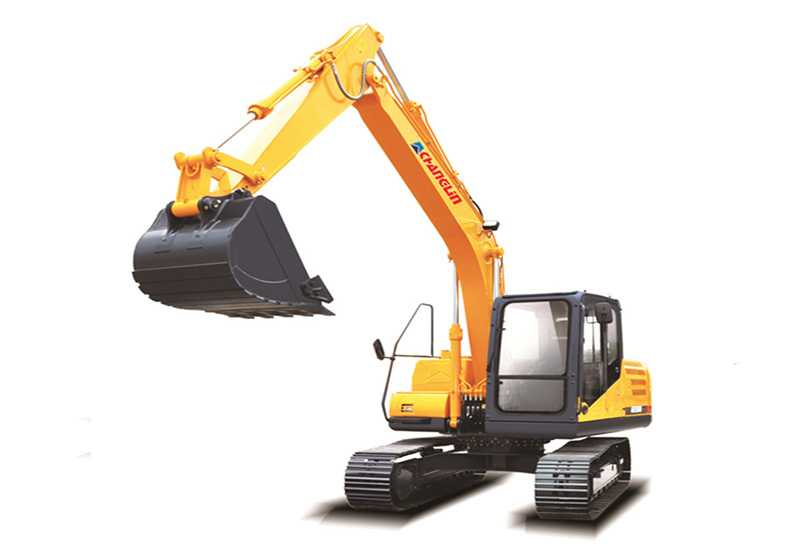

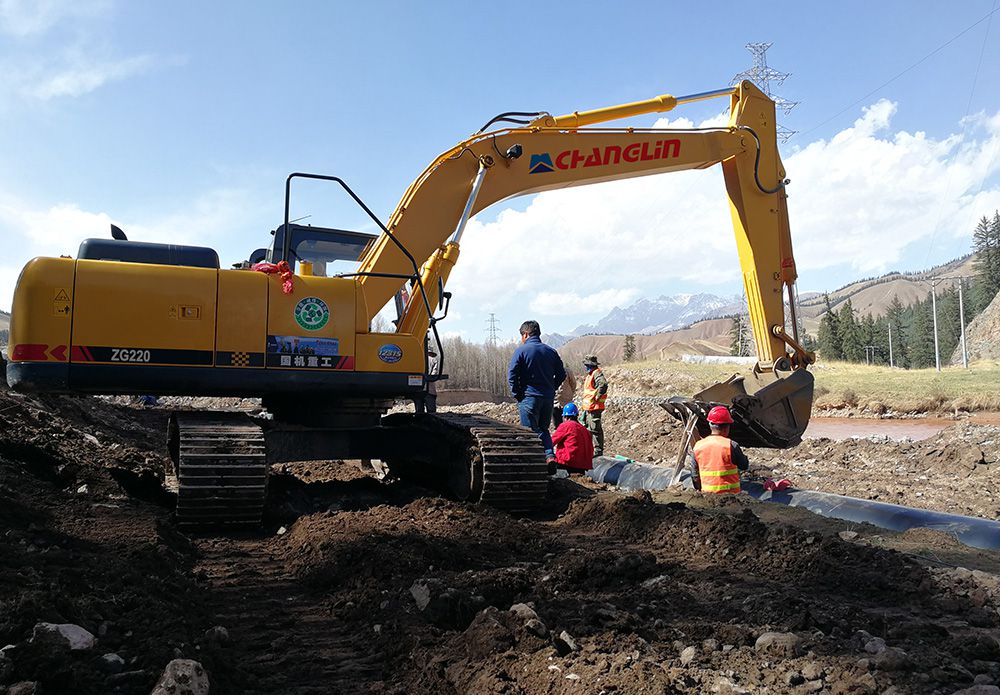

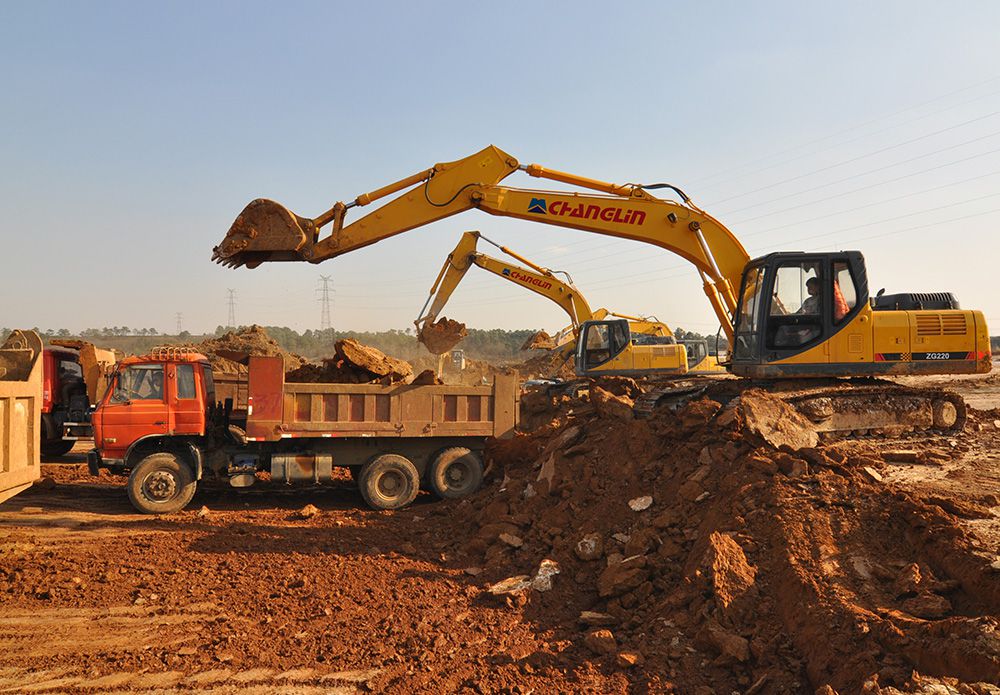

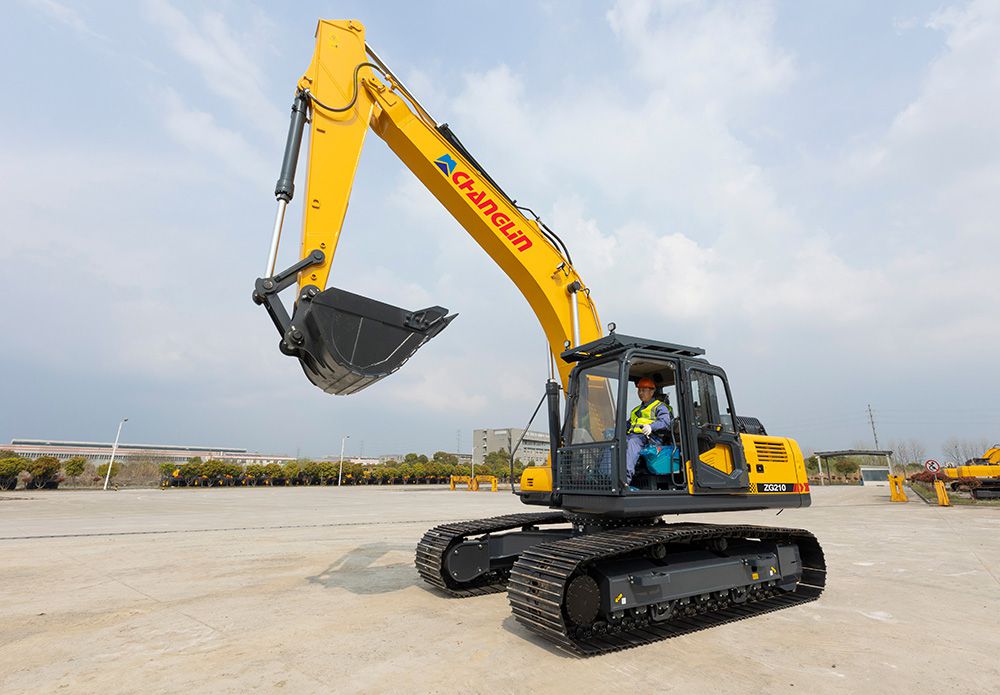

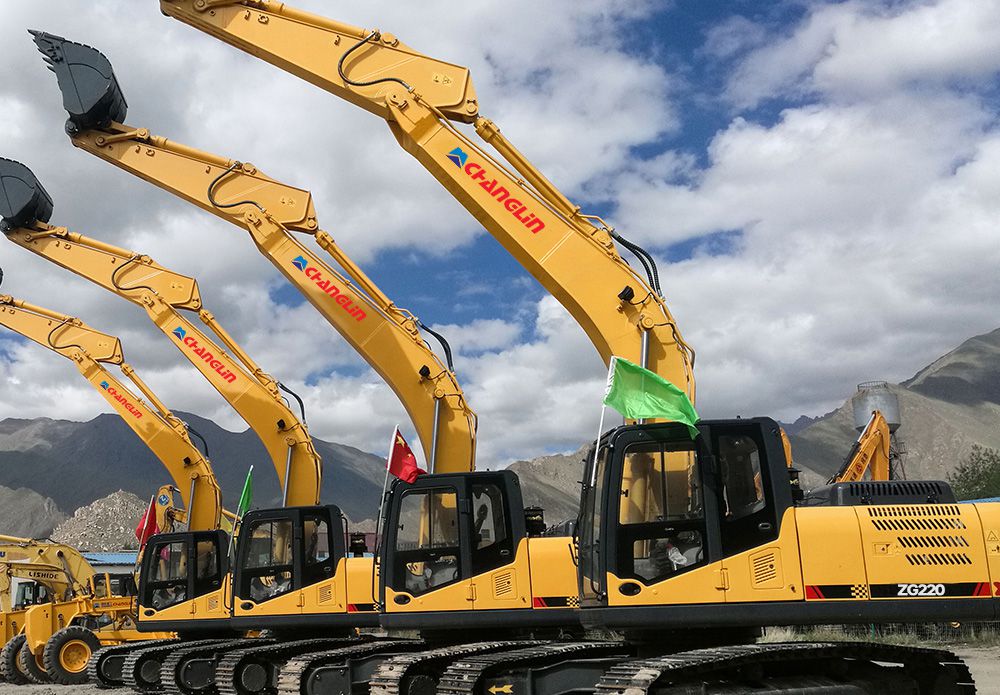

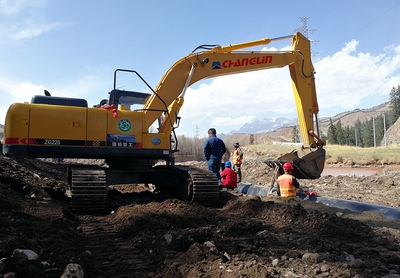

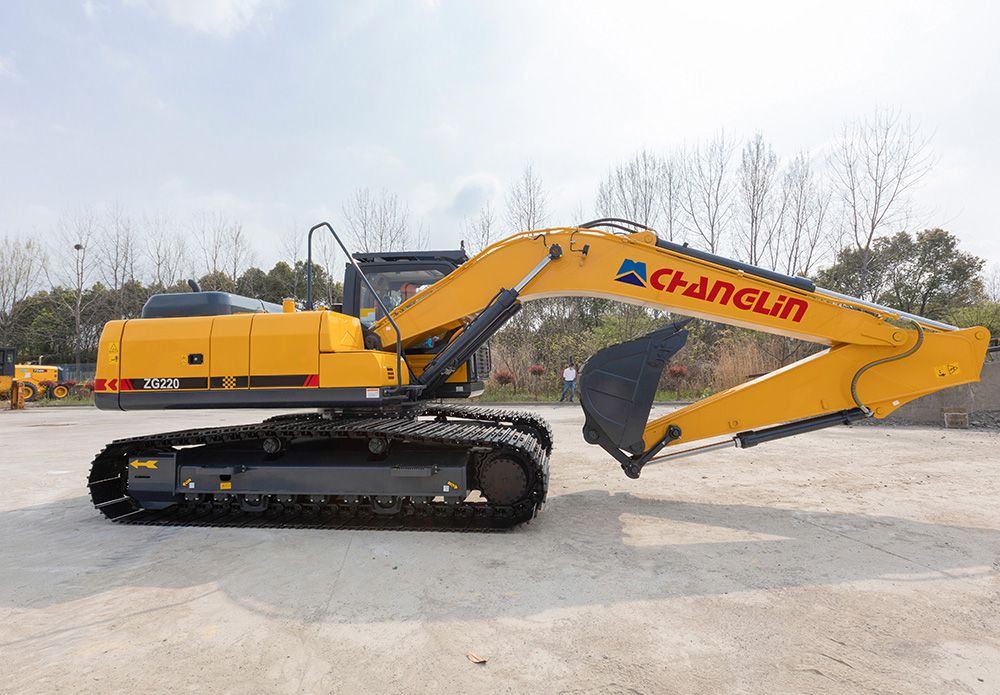

Crawler Excavator ZG220

The ZG220 crawler excavator has a negative flow control hydraulic system, delivering strong power, high energy efficiency, exceptional reliability and durability.

  • Operating weight: 22000KG
  • Rated power: 112kW
  • Bucket capacity: 1.1m³
Inquiry

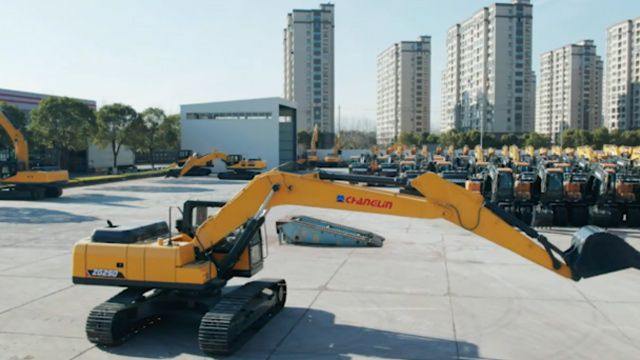

Video
Crawler Excavator ZG220
  • Crawler Excavator ZG220
  • Crawler Excavator ZG220
  • Crawler Excavator ZG220
  • Crawler Excavator ZG220
  • Crawler Excavator ZG220
    • Specifications
    • Features
    • Videos
    • Request a Quote
    Specifications
    Model ZG220
    Length×Width×Height(mm) 9520×2800×3030
    Operating weight (Kg) 21000
    Rated bucket capacity(m³) 1.1
    Max.digging depth(mm) 6690
    Max.digging radius(mm) 9953
    Max.digging height(mm) 9642
    Max.dumping height(mm) 6813
    Bucket digging force(KN) 137
    Stick digging force(KN) 102
    Gradient capacity(%) 70
    Diesel engine Cummins 6BTAA5.9-C150
    Rated output(KW) 112
    Features
    • Crawler Excavator ZG220

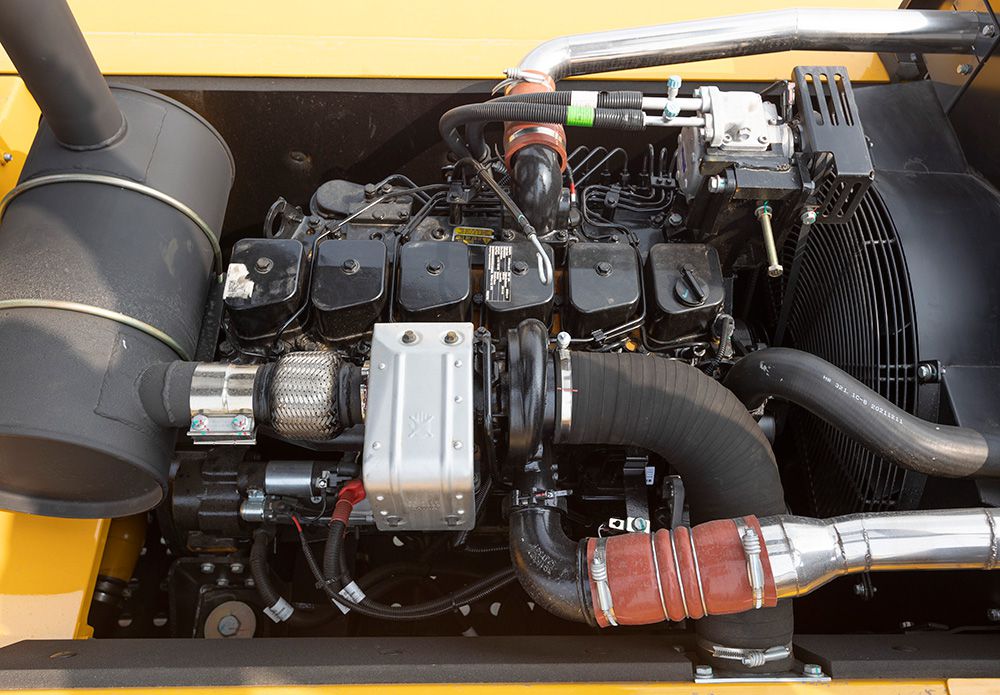

      To comply with the national three-stage emission standard, a fully electronically controlled engine is used to accommodate various working conditions. A newly developed control system optimizes the power matching between pump and engine, resulting in low fuel consumption and high work efficiency.

    • Crawler Excavator ZG220

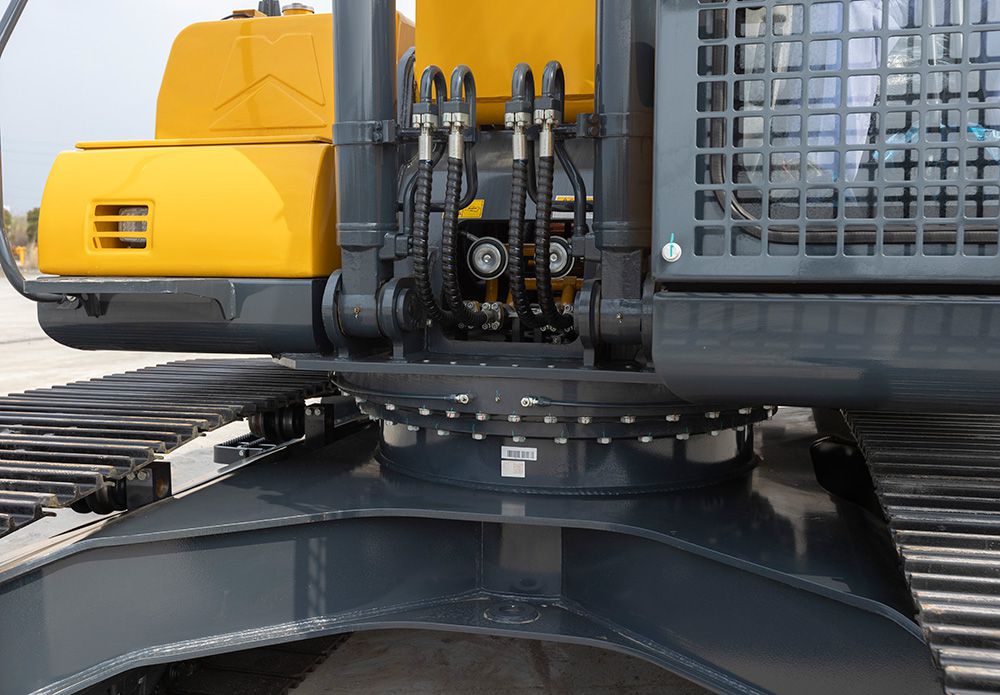

      A new type of hydraulic system is used in the crawler excavator. The optimized internal valve core ensures increased flow rate, reduced pressure loss, reasonable flow distribution, better movement coordination and easy operation.

    • Crawler Excavator ZG220

      The control system is newly developed to assure the full functionality of the entire excavator. It can intelligently adjust the hydraulic absorption power to accommodate the working conditions, and enable an optimized system matching.

    • Crawler Excavator ZG220

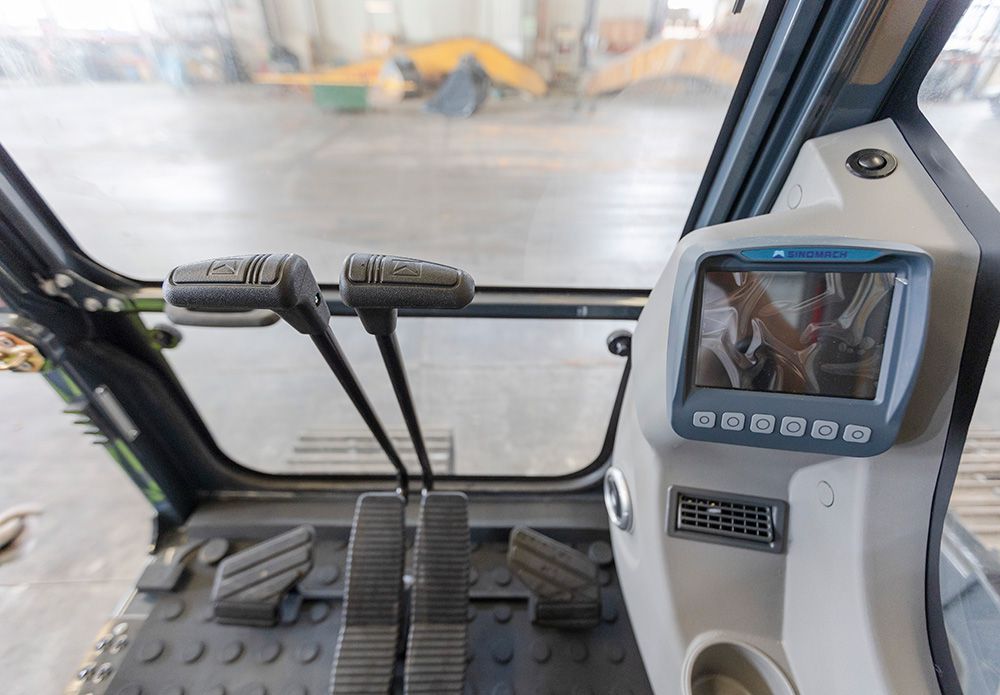

      The crawler excavator is equipped with a 5.7-inch glare-free color monitor featuring high-resolution and high-brightness, and an intelligent electronic monitoring system with functions of maintenance reminding, automatic fault diagnosis and alerting.

    • Crawler Excavator ZG220

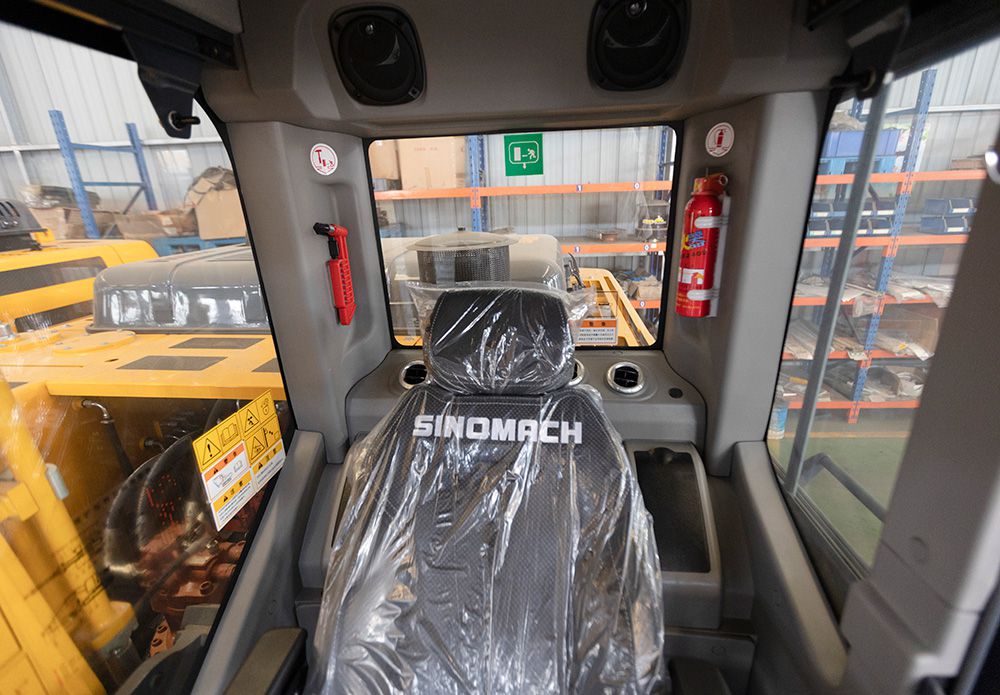

      The new safe and reliable cab is utilized in the crawler excavator, it features an injection-molded interior and an automatic air conditioner for operator's comfort.

    • Crawler Excavator ZG220

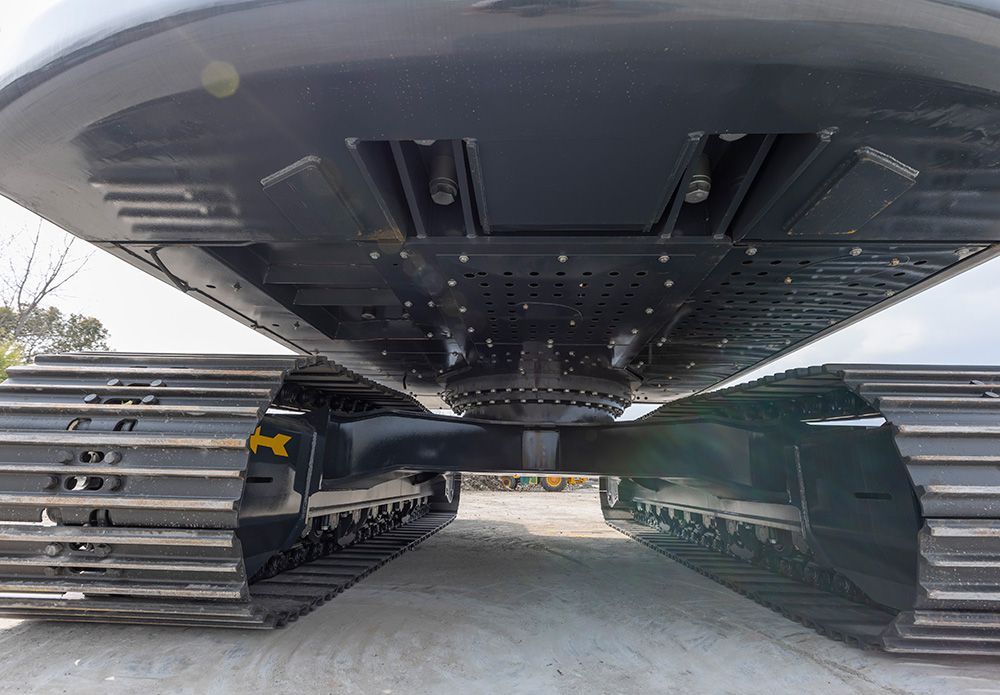

      The reliability of the entire excavator has been verified for 5000 hours during the development stage. All key components including structural parts, hydraulic parts, slewing bearings and engine have been tested under extreme working conditions.

    • Crawler Excavator ZG220

      User evaluation: the fuel consumption is about 10% lower than that of the same tonnage brand in the industry, and the reliability is high.

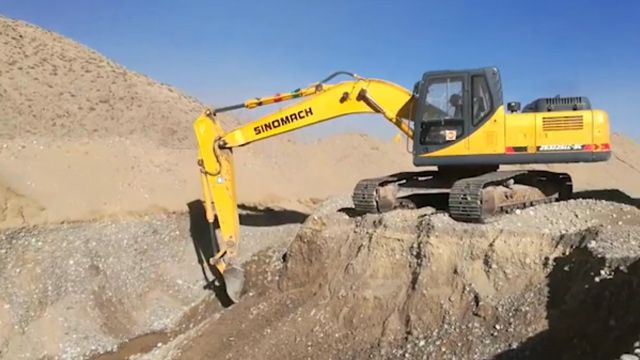

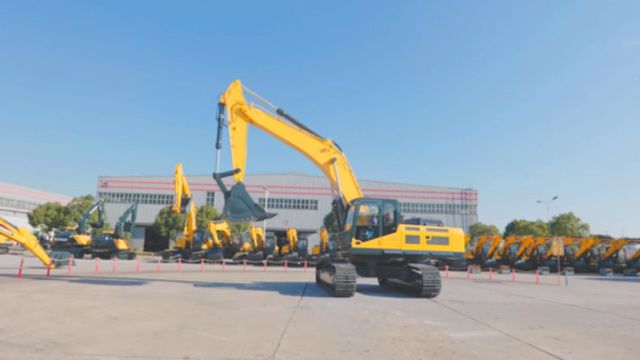

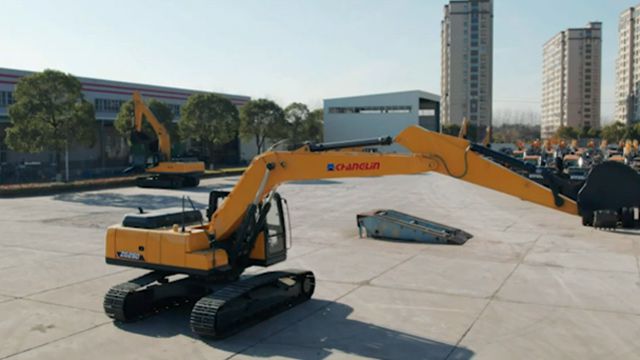

    Videos
