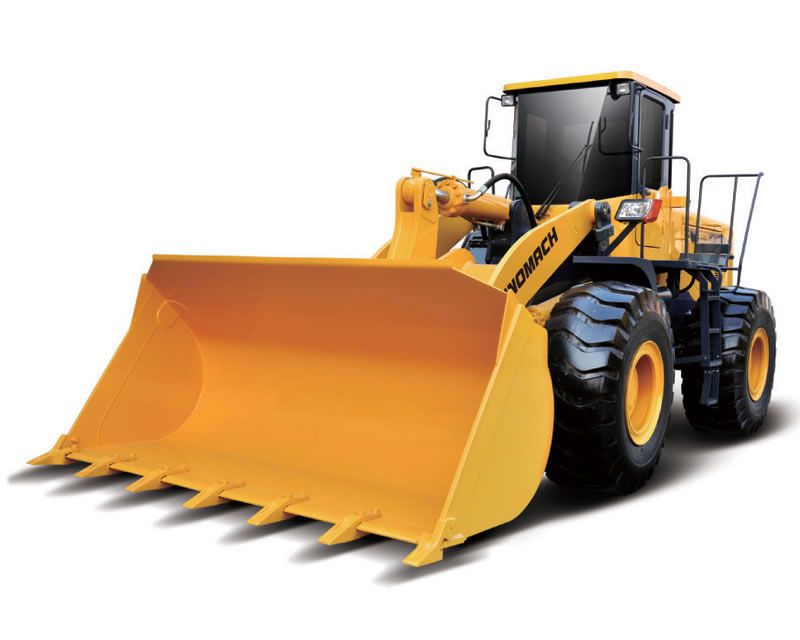

957S Wheel Loader

957S Wheel Loader

Features of 957S Wheel Loader
1. Leading in productivity and efficiency, the SINOMACH 957S wheel loader can perform well in the toughest conditions.
2. Improved power, versatility and durability are provided by the ShangChai SC11CB220G2B1 engine or genuine Cummins engine.
3. This wheeled loading shovel comes with a 4 forward and 3 reverse power shift transmission.
4. KD switch operates easily and efficiently.
5. The loading equipment is designed with a load-sensed full hydraulic steering system or dual-pump confluent flow working hydraulic & steering system.
6. Combined seal cylinder obtains high seal performance and reliability.

Technical Parameters of 957S Wheel Loader
Overall Dimension (mm)
1 Length (with bucket on ground) ShangChai SC11CB220G2B1 engine Cummins engine
8130 8270
2 Width (to outside of wheels) 2800
3 Bucket width 2946
4 Height (to the top of the cab) 3450
5 Wheel base 3200
6 Tread 2200
7 Min. ground clearance 450
Main Technical Specifications of the Wheel Loader
1 Rated load 5000Kg
2 Operating weight 16700Kg
3 Rated bucket capacity 3.0m3
4 Max. breakout force 165kN
5 Max. traction force 150kN
6 Max. gradeability 30°
7 Max. dump clearance 3100mm
8 Dump reach 1150mm
9 Dump angle at any position ≥45°
10 Digging depth (with bucket bottom horizontal) 165mm
11 Min. turning radius
(1) Outside of bucket 6775mm
(2) Outside of front wheel 6098mm
12 Pivot angle frame 38°
13 Oscillating angle of rear axle +11°
14 Lifting time of bucket ≤5.6s
15 Lowering time of bucket ≤3.7s
16 Dumping time ≤1.7s
17 Traveling speed(Km/h), 4 forward and 3 reverse power shift
(1) 1st gear(F/R) 6.7/6.7
(2) 2nd gear (F/R) 12.2/12.2
(3) 3rd gear (F/R) 25.6/25.6
(4) 4rd gear(F) 39
Diesel Engine of the Wheel Loader
1 Model ShangChai SC11CB220G2B1 Engine 6CT AA 8.3-C215 (TIER2)
2 Type Direct injection, Turbocharged, Water cooling
3 Rated output 162Kw 160Kw
4 Inter-bore of cylinder/stroke 121/152mm 114/135mm
5 Total exhaust of cylinder 10.5L 8.3L
6 Model of starting motor KB-24V 42MT
7 Power of start motor 7.5Kw 8.2Kw
8 Voltage of starting motor 24V 24V
9 Rated speed 2200r/min.
10 Max. Torque 843±6% N.m/1400rpm 998N.M
11 Starting type Electric
12 Min. specific fuel consumption 230g/Kw.h 207g/Kw.h
13 Engine specific oil consumption 0.95-1.77g/Kw.h 0.9-1.6g/Kw.h
14 Net weight 960Kg 617Kg
Transmission System of the Wheel Loader
A. Torque Converter
1 Model ZF technology WG200
2 Type 3-elements, single stage
3 Torque ratio 2.55
4 Cooling type Pressure oil circulating
B. Transmission Case
1 Model ZF technology WG200
2 Type Power shift, spur gear constant-mesh
3 Gear shift position 4 Forward and 3 reverse gears
C. Axle and Tire
1 Type of main reducer Spiral bevel gear, single stage
2 Gear ratio of main reducer 4.556
3 Type of final reducer Single stage planetary gear
4 Gear ratio of final reducer 5
5 Total ratio 22.78
6 Model of tire 23.5-25-16PR
Working Device Hydraulic System of the Wheel Loader
1 Model of oil pump JHP 3160C
2 System pressure 180kgf/cm2
3 Model of multichannel conversion valve GDF-32-YL18/D32II-YL20
4 Pilot valve model DJS2-UX/UU
5 (D×L)Dimension of lifting cylinder Ф160×90×810mm
6 (D×L)Dimension of tilting cylinder Ф180×90×563mm
Steering System
1 Type Middle articulated frame; Full-hydraulic Steering
2 Model of steering pump JHP2080S
3 Model of redirector TLF1-E1000B+FKB6020
4 Model of priority valve YXL-F250F-16N7-A
5 System pressure 16MPa
6 Dimension of steering cylinder Ф90×435mm
Brake System
1 Type of traveling brake Air over hydraulic brake system (for Cummins) Air over hydraulic brake system (for SC11CB220G2B1)
2 Type of axle brake Wet type multi-disc brake in axle
3 Max. brake oil pressure 55kgf/cm2
4 Type of emergency brake Manual control cutting-off air brake
4 Type of parking brake Drum brake; Manual control cutting-off air/oil brake
Oil Capacity
1 Fuel (diesel) 250L
2 Engine lubricating oil Cummins: 19L ShangChai: 27L
3 Oil for converter and gear box 42L
4 Oil for hydraulic system 250L
5 Oil for driving axles (F/R) 32L
