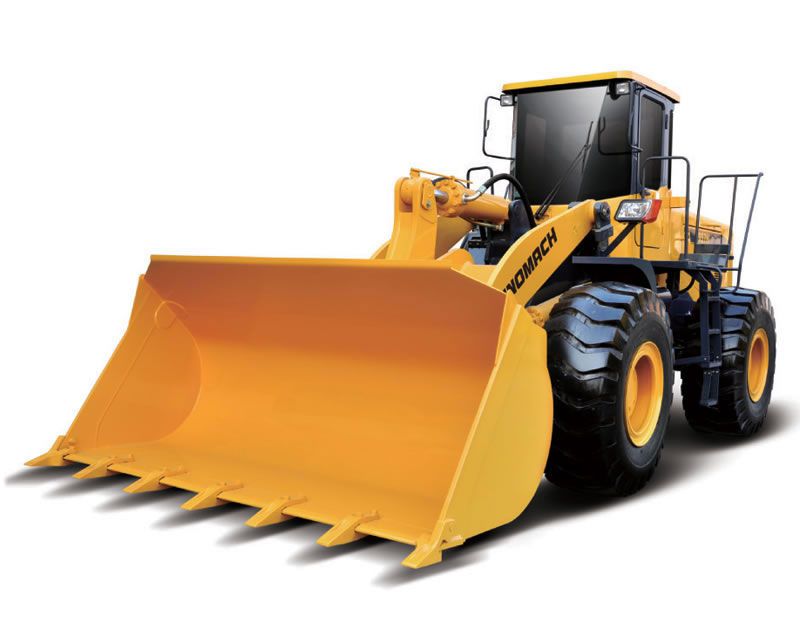

957Z Wheel Loader
Designed to scoop, carry and load materials, our 957S wheel loader brings to the worksite exciting reliability, performance, and efficiency. With enhanced horsepower and improved cab, you can work comfortably in the material handling machine for all day long.
Features of 975Z Wheel Loader
1. 4 forward and 3 reverse power shift transmission.
2. With KD switch, the wheeled loader can be operated easily and efficiently.
3. The bucket loader comes with a load-sensed full hydraulic steering system and dual-pump confluent flow working hydraulic & steering system.
4. Combined seal cylinder allows high seal performance and reliability.
| Overall Dimensions (mm) | |||
| 1 | Length (with bucket on ground) | 8130 | |
| 2 | Width (to outside of wheels) | 2800 | |
| 3 | Bucket width | 2946 | |
| 4 | Height (to the top of the cab) | 3450 | |
| 5 | Wheel base | 3200 | |
| 6 | Tread | 2200 | |
| 7 | Min. ground clearance | 450 | |
| Main Technical Specifications of the Wheel Loader | |||
| 1 | Rated load | 5000Kg | |
| 2 | Operating weight | 16700Kg | |
| 3 | Rated bucket capacity | 3.0m3 | |
| 4 | Max. breakout force | 165kN | |
| 5 | Max. traction force | 150kN | |
| 6 | Max. gradient ability | 30° | |
| 7 | Max. dump clearance | 3100mm | |
| 8 | Dump reach | 1150mm | |
| 9 | Dump angle at any position | ≥45° | |
| 10 | Digging depth (with bucket bottom horizontal) | 165mm | |
| 11 | Min. turning radius | ||
| (1) Outside of bucket | 6775mm | ||
| (2) Outside of front wheel | 6098mm | ||
| 12 | Pivot angle frame | 38° | |
| 13 | Oscillating angle of rear axle | +11° | |
| 14 | Lifting time of bucket | ≤5.6s | |
| 15 | Lowering time of bucket | ≤3.7s | |
| 16 | Dumping time | ≤1.7s | |
| 17 | Traveling speed(Km/h), 4 forward and 3 reverse power shift | ||
| (1) 1st gear(F/R) | 6.8/6.8 | ||
| (2) 2nd gear (F/R) | 12.2/12.2 | ||
| (3) 3rd gear (F/R) | 24.3/24.5 | ||
| (4) 4rd gear(F) | 35 | ||
| Diesel Engine of the Wheel Loader | |||
| 1 | Model | ShangChai SC11CB220G2B1 Engine | |
| 2 | Type | Direct injection, Turbocharged, Water cooling | |
| 3 | Rated output | 162Kw | |
| 4 | Piston diameter/stroke | 121/152mm | |
| 5 | Gas displacement | 10.5L | |
| 6 | Model of starting motor | KB-24V | |
| 7 | Power of start motor | 7.5Kw | |
| 8 | Voltage of starting motor | 24V | |
| 9 | Rated speed | 2200r/min. | |
| 10 | Max. Torque | 843±6% N.m/1400rpm | |
| 11 | Starting type | Electric | |
| 12 | Min. specific fuel consumption | 230g/Kw.h | |
| 13 | Min. specific oil consumption | 0.95-1.77g/Kw.h | |
| 14 | Net weight | 960Kg | |
| Transmission System of the Wheel Loader | |||
| A. Torque Converter | |||
| 1 | Model | ZF technology WG200 | |
| 2 | Type | 3-elements, single stage | |
| 3 | Torque ratio | 2.55 | |
| 4 | Cooling type | Pressure oil circulating | |
| B. Transmission Case | |||
| 1 | Model | ZF technology G200 | |
| 2 | Type | Power shift, spur gear constant- mesh | |
| 3 | Gear shift position | 4 Forward and 3 reverse gears | |
| C. Axle and Tire | |||
| 1 | Type of main reducer | spiral bevel gear, single stage | |
| 2 | Gear ratio of main reducer | 4.625 | |
| 3 | Type of final reducer | Single stage planetary gear | |
| 4 | Gear ratio of final reducer | 4.9286 | |
| 5 | Total ratios | 22.795 | |
| 6 | Tire model | 23.5-25-16PR | |
| Working Device Hydraulic System of the Wheel Loader | |||
| 1 | Model of oil pump | JHP 3160C | |
| 2 | System pressure | 180kgf/cm2 | |
| 3 | Model of multichannel conversion valve | GDF-32-YL18/D32II-YL20 | |
| 4 | Pilot valve | DJS2-UX/UU | |
| 5 | (D×L)Dimension of lifting cylinder | Ф160×90×810mm | |
| 6 | (D×L)Dimension of tilting cylinder | Ф180×90×563mm | |
| Steering System | |||
| 1 | Type | Middle articulated frame; Full-hydraulic Steering | |
| 2 | Model of steering pump | JHP2080S | |
| 3 | Model of redirector | TLF1-E1000B+FKB6020 | |
| 4 | Model of priority valve | YXL-F250F-16N7-A | |
| 5 | System pressure | 16MPa | |
| 6 | Dimension of steering cylinder | Ф90×435mm | |
| Brake System | |||
| 1 | Type of traveling brake | Caliper disc brake; Air over oil activate 4 wheel brake |
|
| 2 | Air pressure | 6-7.5 kgf/cm2 | |
| 3 | Type of emergency brake | Manual control cutting-off air brake | |
| 4 | Type of parking brake | Drum brake; Manual control cutting-off air brake |
|
| Oil Capacity | |||
| 1 | Fuel (diesel) | 250L | |
| 2 | Engine lubricating oil | 27L | |
| 3 | Oil for converter and gear box | 42L | |
| 4 | Oil for hydraulic system | 250L | |
| 5 | Oil for driving axles (F/R) | 26L | |
SINOMACH is a highly recognized front end wheel loader maker in China, providing customers with a wide assortment of quality, reliable and efficient wheel loaders. As a specialist earth mover supplier, we also offer a wide selection of crawler excavator, motor grader, crawler bulldozer, backhoe loader, skid steer loader, and more.
