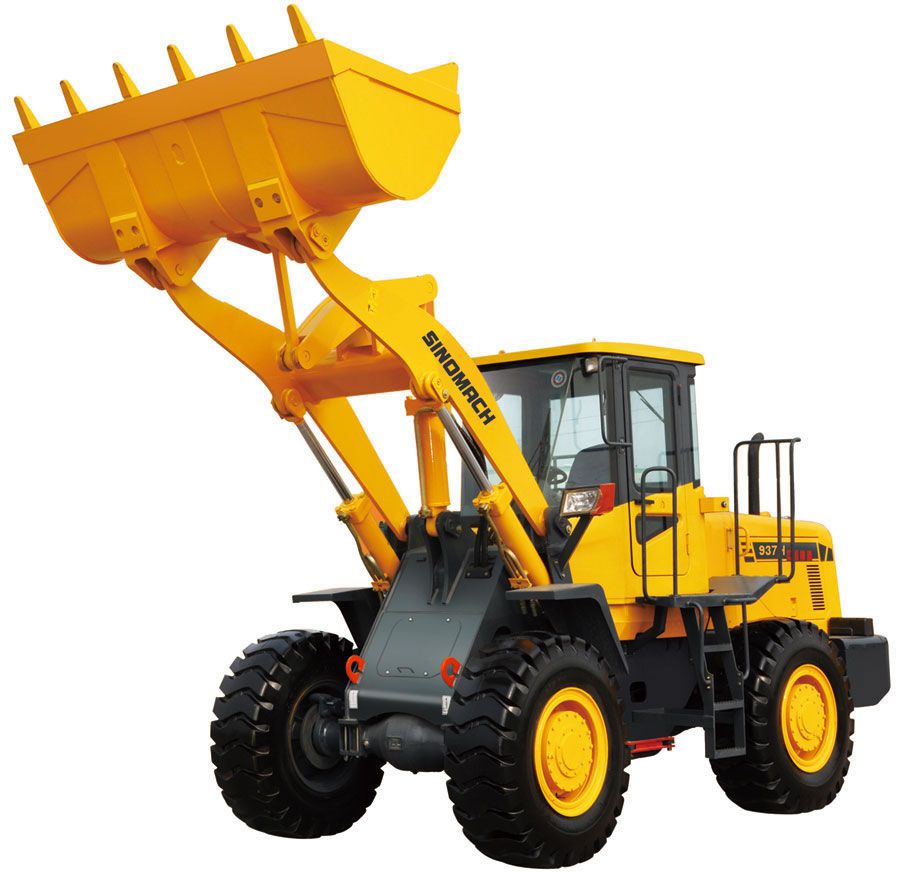

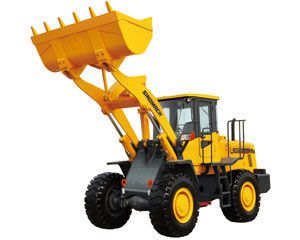

937H Wheel Loader

937H Wheel Loader

Wheel Loader 937H
1. The 937H Wheel Loader is equipped with Dongfeng Cummins Engine.
2. This Wheel loader adopts 3 forward and 3 reverse power shift transmission.
3. The combined seal cylinder adopted by this wheel loader obtains high seal performance and more reliability.

Technical Specification:
Overall Dimension
1 Length (with bucket on ground) 7425mm
2 Width (to the outside of wheels) 2305mm
3 Bucket width 2462mm
4 Height (to the top of the cab) 3095mm
5 Wheel base 2750mm
6 Tread 1855mm
7 Min. ground clearance 370mm
Main Technical Specification
1 Rated load 3000Kg
2 Operating weight 10200KG
3 Rated bucket capacity 1.7m3
4 Max. breakout force 96kN
5 Max. dump clearance 2850mm
6 Dump reach 1030mm
7 Dump angle at any position ≥45°
8 Min. turning radius
(1) Outside of bucket 5600mm
(2) Outside of rear wheel 5205mm
9 Pivot angle frame 38+
10 Oscillating angle of rear axle +11°
11 Lifting time of bucket ≤5.1sec.
12 Lowering time of bucket ≤3.0sec.
13 Dumping time ≤1.1sec.
14 Traveling speed, 3 forward and 3 reverse
(1) 1st gear forward 7.3Km/h
(2) 2nd gear forward 15.7Km/h
(3) 3rd gear forward 35Km/h
(1) 1st gear reverse 7.8Km/h
(2) 2nd gear reverse 16.8Km/h
(3) 3rd gear reverse 36Km/h
Diesel Engine
1 Model Dongfeng Cummins 6BT5.9-C120
2 Type Direct injection. Turbocharged. Water cooling
3 Rated output 87KW
4 Inter-bore of cylinder / stroke 102/120 mm
5 Total exhaust of cylinder 5.9L
6 Voltage of starting motor 24V
7 Rated speed 2200r/min
8 Max. torque 440(N.M)/1500rpm
9 Starting mode Electric
10 Min. specific fuel consumption 220g/Kw.h
Transmission System
1. Torque Converter
1 Model YJH315F (Shanxi Aerospace Power)
2 Type 3-elements. Single stage
3 Torque ratio 3.1
4 Cooling type Pressure oil circulating
2. Transmission Case
1 Model Chinese Sinomach
2 Type Power shift, constant-mesh spur gear
3 Gear shift position 3 forward and 3 reverse gears
3. Axle and Tire
1 Type of main reducer Spiral bevel gear, single stage
2 Gear ratio of main reducer 3.889
3 Type of final reducer Single stage planetary
4 Gear ratio of final reducer 4.941
5 Total ratios 19.216
6 Max. drawing force 83kN
7 Size of tire 17.5-25-12PR
Working Device Hydraulic System
1 Model of oil pump CBGj2100 (SAE)
2 System pressure 160kgf/cm2
3 Model of multichannel conversion valve GDF32D2
4 (D×L) Dimension of lifting cylinder Ф125×70×697mm
5 (D×L) Dimension of tilt cylinder Ф150×70×470mm
Steering System
1 Type Middle articulated frame. Full-Hydraulic steering
2 Model of steering pump CBG2050 (SAE)
3 Model of steering gear BZZ1-E400C+FKA-143020
4 Model of single-channel stable shunt valve FLD-D30H
5 System pressure 14MPa
6 Dimension of steering cylinder Ф70×40×357mm
Brake System
1 Type of traveling brake Air assisted oil.4 wheel brake
2 Air pressure 7-8kgf/cm2
3 Type of emergency brake Automatic cutting air brake
4 Type of parking brake Drum brake Manual control cutting off air brake
Oil Capacity
1 Fuel (diesel) 110L
2 Engine lubricating oil 13.5L
3 Oil for converter and gear box 35L
4 Oil for hydraulic system 120L
5 Oil for driving axles (F/R) 16/15L
