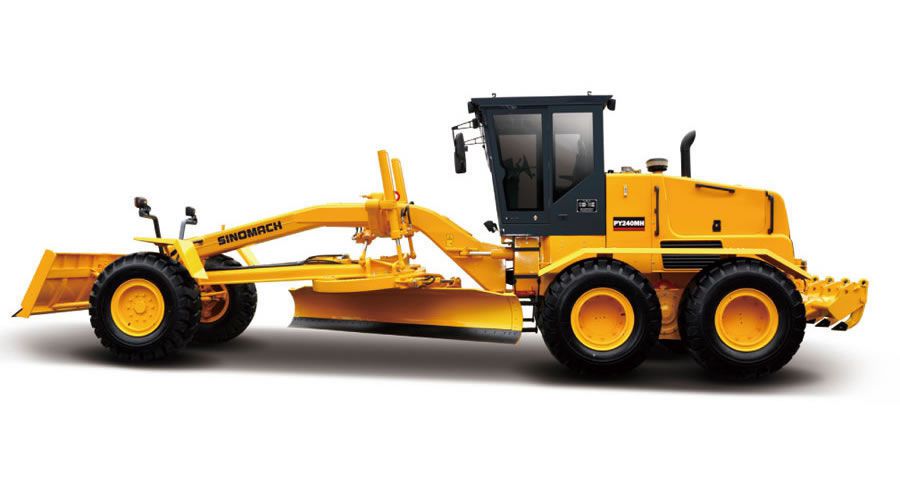

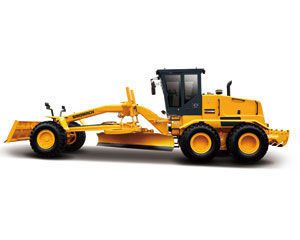

GP240M Motor Grader

GP240M Motor Grader

GP240M
Sinomach motor grader adopts advanced technology from Germany and its output power ranges from 120hps to 350hps.

Motor Grader Specifications
Engine rated power 175kw /240HP
Engine rated speed 2200rpm
Operating weight Standard 19000kgs
With front bulldozing plate/rear ripper 20000kgs
Overall dimensions
(L*W*H)		 Standard 9400mm×2800mm×3550mm
With front bulldozing plate/rear ripper 10330mm×2890mm×3550mm
Minimum ground clearance 480mm
Minimum outside turning radius 8600mm
Travelling speed Forward 0-38.98km/h
Backward 0-26.98km/h
Gradeability 25%
Max. tractive force 99kN/142KN
Blade size 4422mm ×688mm
Bulldozing plate (optional) Width*height 2890mm ×1020mm
Rear ripper (optional) Width 2087mm
Digging depth 315mm
Number of teeth 5

We are a professional motor grader manufacturer and supplier in China. We provide a variety of products, including wheel loader, walk behind roller, crawler bulldozer, and hydraulic vibratory single drum road roller, among others.
