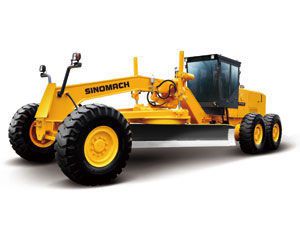

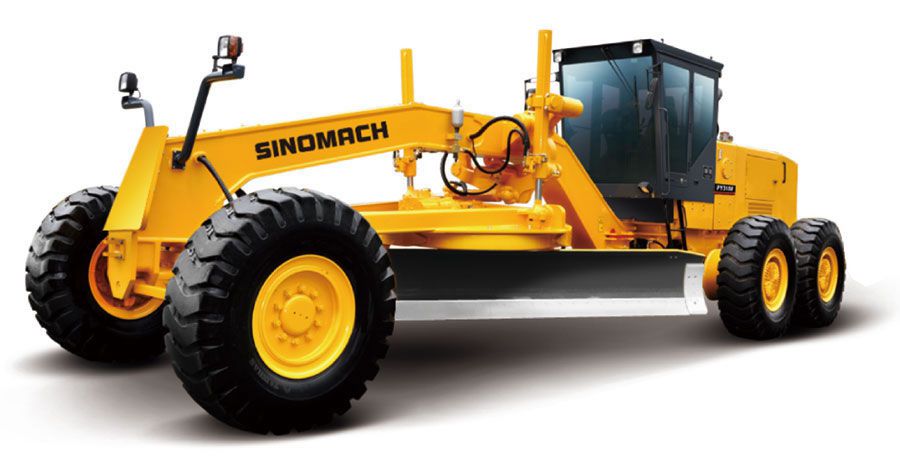

PY310M Motor Grader

PY310M Motor Grader

PY310M
Sinomach motor grader adopts advanced technology from Germany and its output power ranges from 120hps to 350hps.

Motor Grader Specifications
Engine rated power 227kw/310HP
Engine rated speed 2100rpm
Operating weight Standard 24000kgs
Front dozing back scarifying type 27500kgs
Overall dimensions
(L*W*H)		 Standard 10500mm×3140mm×3650mm
Front dozing back scarifying type 12200mm×3140mm×3650mm
Minimum ground clearance 500mm
Minimum outside turning radius 9300mm
Travelling speed Forward 0-40km/h
Backward 0-27.1km/h
Gradeability 25%
Max. tractive force Standard 126kN
With rear ripper 144kN
Rear ripper (optional) 4920mm ×695mm
Rear ripper (optional) Width 2885mm
Digging depth 460mm
Number of teeth 3, 5, 7

As a China-based motor grader manufacturer and supplier, we at SINOMACH also provide landfill compactor, crawler crane, wheel loader, backhoe loader, and much more.
