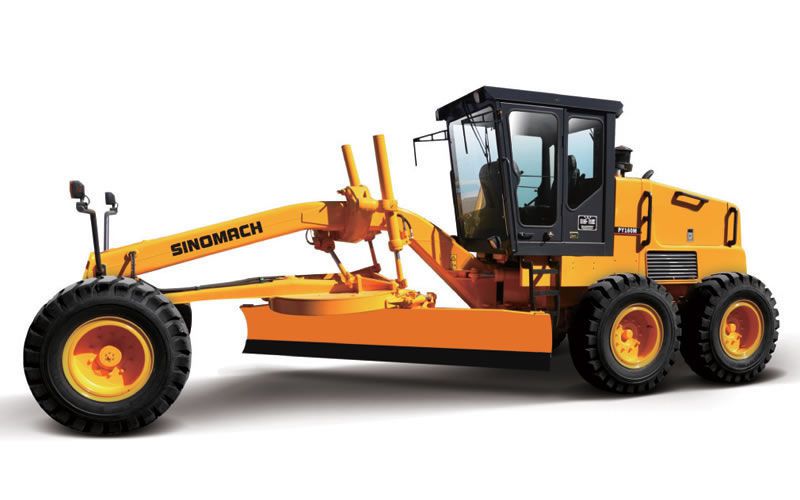

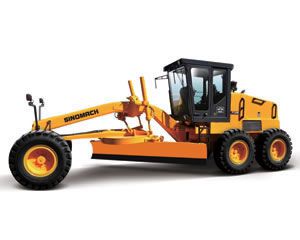

PY160M Motor Grader
PY160M Motor Grader
PY160M
Sinomach motor grader adopts advanced technology from Germany and its output power ranges from 120hps to 350hps.
| Engine rated power | 125kw /170HP | ||
| Engine rated speed | 2300rpm | ||
| Operating weight | Standard | 14000kgs | |
| With front bulldozing plate/rear ripper | 14750kgs | ||
| Overall dimensions (L*W*H) |
Standard | 8500 mm×2600 mm×3400mm | |
| With front bulldozing plate/rear ripper | 9900 mm×2600 mm×3400mm | ||
| Minimum ground clearance | 430mm | ||
| Minimum outside turning radius | 7500mm | ||
| Travelling speed | Forward | 0-44km/h | |
| Backward | 0-30 km/h | ||
| Grade ability | 25% | ||
| Max. tractive force | 73.5kN | ||
| Blade size | 3660 mm ×650 mm | ||
| Bulldozing plate (optional) Width*height | 2450 mm ×820 mm | ||
| Rear ripper (optional) | Width | 2000 mm | |
| Digging depth | 315 mm | ||
| Number of teeth | 5 | ||
As a specialized motor grader manufacturer and supplier in China, we also provide truck crane, crawler bulldozer, backhoe loader, hydraulic vibratory single drum road roller, and much more.
