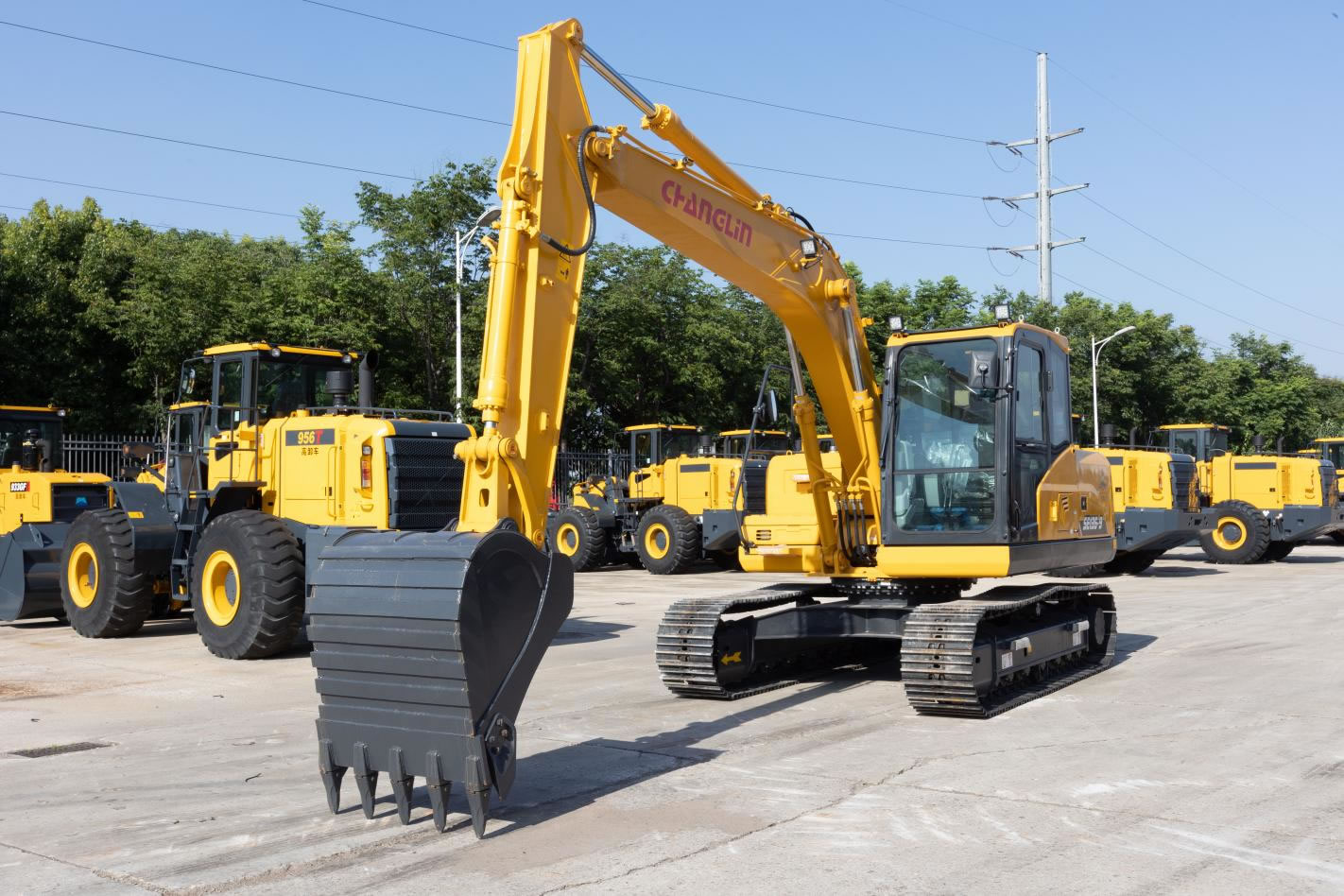

Crawler Excavator ZG135S

  • ZG135S crawler excavator is equipped with Cummins engine, featuring strong power, high efficiency, energy saving, high reliability and durability.
  • Adopting an advanced negative flow hydraulic system allows for comfortable operation, high operating efficiency, and excellent cost performance.
  • With full power control, four power modes are optional to adapt to different working conditions. The stepper motor accurately controls the throttle, significantly reducing fuel consumption.
  • Full 3D modeling and finite element analysis technology are adopted to ensure the reliability and stability of structural parts.
  • Operating weight: 13500KG
  • Rated power: 86/92kW
  • Bucket capacity: 0.55m³
Inquiry
Crawler Excavator ZG065S
  • Specifications
  • Features
  • Request a Quote
Specifications
Model ZG135S
Length × width × height (mm) 7860×2500×2800
Operating weight (kg) 13500
Rated bucket capacity (m³) 0.55
Max. digging depth (mm) 5490
Max. digging radius (mm) 8300
Max. digging height (mm) 8495
Max. dumping height(mm) 6060
Bucket digging force (kN) 97
Stick digging force (kN) 70
Gradient capacity (%) 70
Diesel engine Cummins QSF3.8/WeiChai WP4.1
Rated output (kW) 86/92
Features
  • Crawler Excavator ZG150

    Cummins/WEICHAI engine: The engine conforms to China-III emission regulation and features strong power, low fuel consumption, and prominent performance.

  • Crawler Excavator ZG150

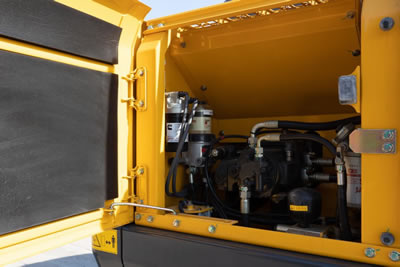

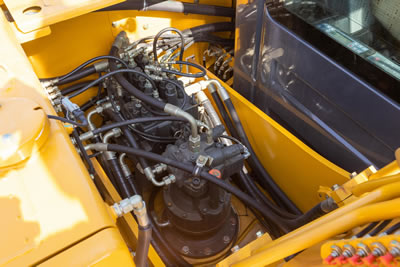

    The original imported hydraulic system comes with constant power and electric proportional control of the dual-pump dual-loop negative hydraulic system, which is stable and reliable.

  • Crawler Excavator ZG150

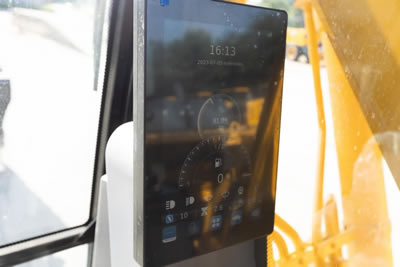

    The accelerator features rapid and accurate control. The application of non-linear multi-dimensional power control optimization improves the working efficiency and reduces the fuel consumption. The preset working modes of Heavy-Load (P), Economic (E), Automatic (A), and Breaking Hammer (B) are at the user's free choice based on the actual working condition. The friendly human-machine interface eases the operations.

  • Crawler Excavator ZG150

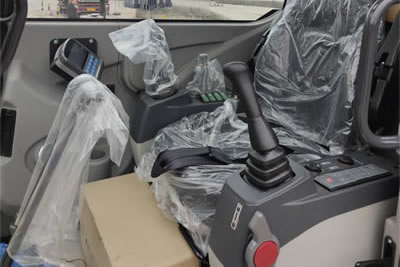

    The crawler excavator features comfortable operating space, wide view to the working, ergonomic control, ease of the operation, etc. User’s operation comfort is maximized by the high-performance shock absorber and vibration isolation.

  • Crawler Excavator ZG150

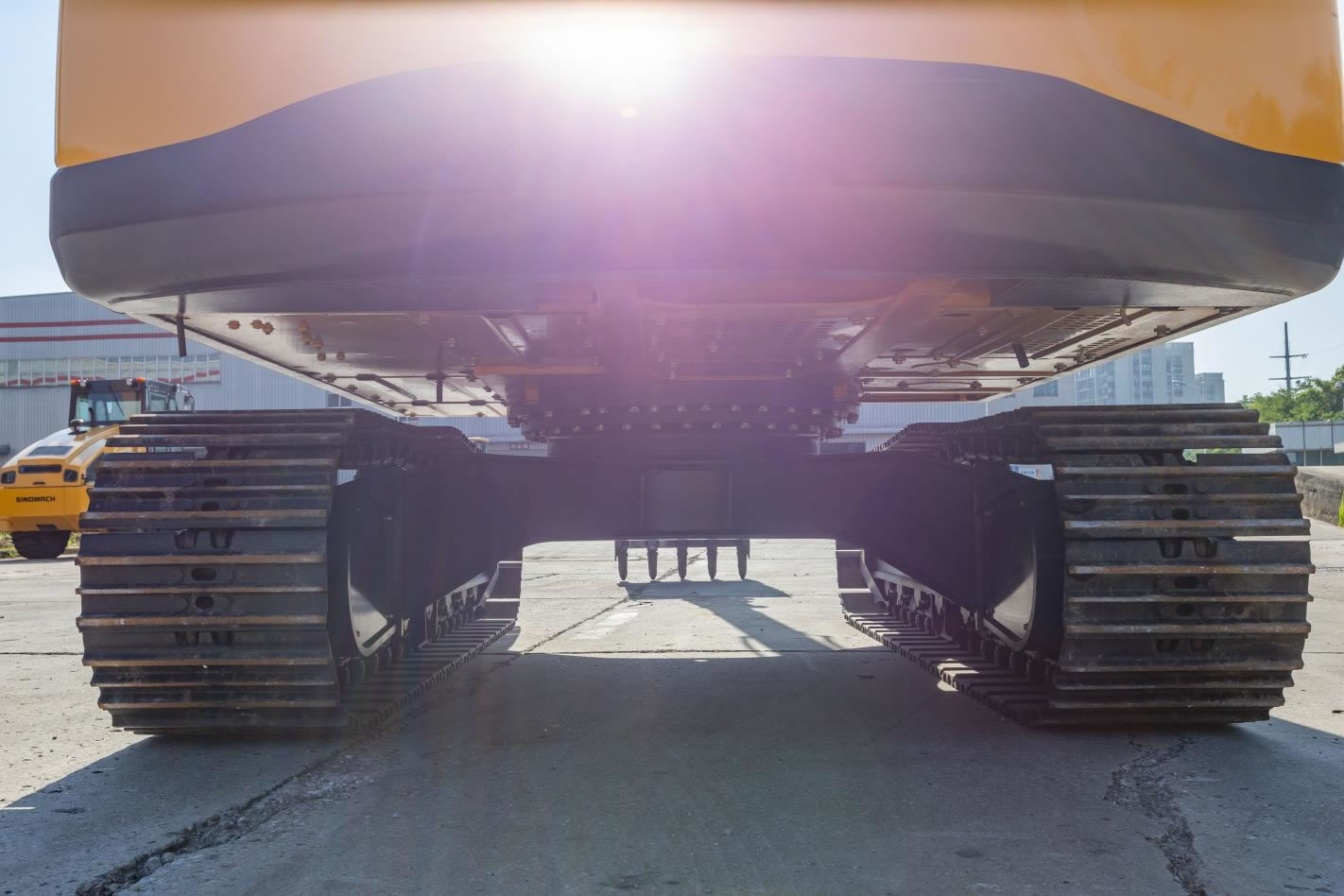

    Enhanced working device, rotary platform and heavy chassis provide safe, stable, reliable and lasting work.

  • Crawler Excavator ZG150

    With the streamlined design, the mold undergoes electrostatic treatment, ensuring high rigidity and good weather assistance.

Request a Quote
