ZG3085-9 Excavator

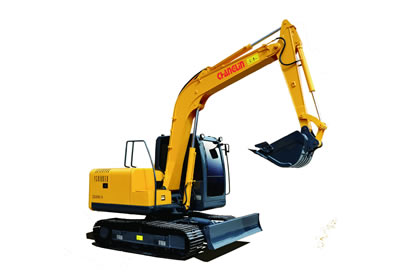

ZG3085-9 Crawler Excavator

This product has been discontinued and removed from our shelves.

Characteristics
1. ZG3085-9 crawler excavator comes with a newly designed hydraulic system, allowing the actuator of the complete machine to offer quick response.
2. Compact structure of hydraulic components allows for reduced tubes and low failure rate, thus providing extremely high reliability and efficiency.
3. The digger is equipped with a priority valve for highly increased efficiency.
4. Using a real-time intelligent electronic monitoring system enables the excavator to be timely maintained.
5. Fully-opened rear hood provides large space for convenient maintenance.
6. Centralized lubrication system for easy maintenance
7. Adjustable seat for much comfort
8. Adopting an air-conditioning system offers a more comfortable operating environment .

Technical Parameters of ZG3085-9 Hydraulic Excavator
Product model ZG3085-9
Length×Width×Height(mm) 6450×2210×2615
Operating weight(Kg) 8100
Rated bucket capacity(m3) 0.37
Max. digging depth(mm) 4245
Max. digging radius(mm) 6675
Max. digging height(mm) 7120
Max. digging force(KN) 53
Gradient capacity (%) 30
Diesel engine type Yanmar 4TNV98T-SFN
Rated output(KW) 53.1
