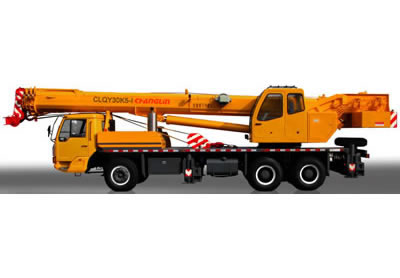

CLQY 30K5-I Truck Crane

CLQY 30K5-I Truck Crane

This product has been discontinued and removed from our shelves.

1. Innovative boom system features built-in slides, flip-sheave boom head, and a telescopic boom with octagonal cross-section. Excellent lifting performance. Maximum safety and reliability.
2. Patented telescopic boom technology prevents boom breakage or warping of the boom and hydraulic cylinder.
3. Boom truck has 8 patented technologies built in it, ensuring maximum energy savings, efficiency and smooth lifting, slewing and boom reach adjusting operation.
4. Torque limiter comes with a color LCD screen for fault diagnosis, delivering industry-leading accuracy.
5. Large torque hydraulic motor ensures safety during the second lifting cycle.
6. Ergonomic diver cab provides a large space for easy and effortless operation.
7. Six patented processing technologies ensure high boom truck quality.
8. Extended boom reach, increased lifting capacity.

Technical Specification:
Model CLQY30K5-I
Length×width×height (mm) 12570×2500×3390
Operating weight (Kg) 32400
Diesel engine WeiChai WD615.329 / ShangChai SC8DK280Q3
Rated output (KW) 213/206
Max. load moment (KN.m) 1025
Max. rated lifting capacity (t) 30
Max. gradeability (%) 35/40
Max. slewing speed (r/min) 2.5
Base boom length (m) 10.6
Max. boom reach (m) 40.4
